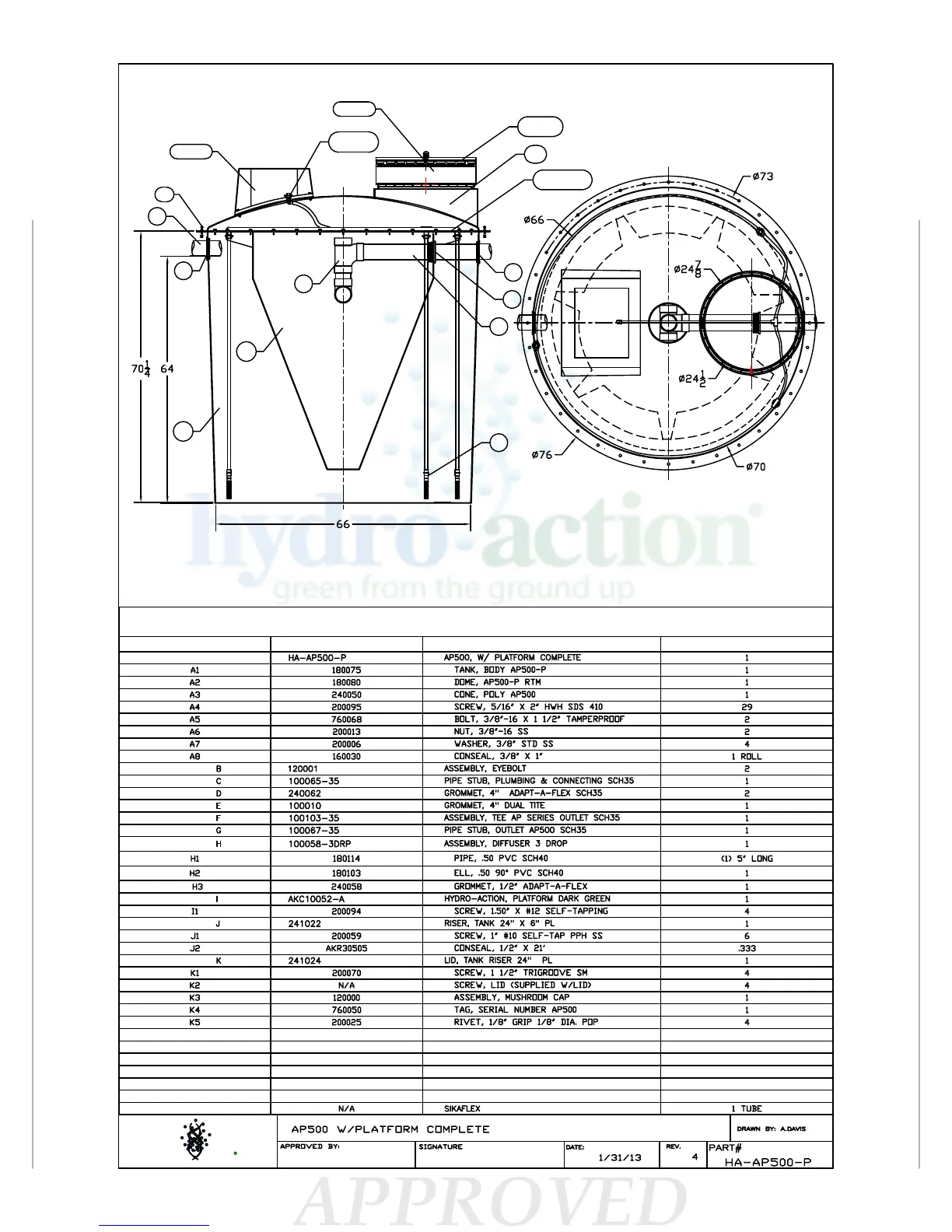

HA-AP500-P
AP500, W/ PLATFORM COMPLETE
1
A1
180075
TANK, BODY AP500-P
1
A2
180080
DOME, AP500-P RTM
1
A3
240050
CONE, POLY AP500
1
A4
200095
SCREW, 5/16" X 2" HWH SDS 410
29
A5
760068
BOLT, 3/8"-16 X 1 1/2" TAMPERPROOF
2
A6
200013
NUT, 3/8"-16 SS
2
A7
200006
WASHER, 3/8" STD SS
4
A8
160030
CONSEAL, 3/8" X 1"
1 ROLL
B
120001
ASSEMBLY, EYEBOLT
2
C
100065-35
PIPE STUB, PLUMBING & CONNECTING SCH35
1
D
240062
GROMMET, 4" ADAPT-A-FLEX SCH35
2
E
100010
GROMMET, 4" DUAL TITE
1
F
100103-35
ASSEMBLY, TEE AP SERIES OUTLET SCH35
1
G
100067-35
PIPE STUB, OUTLET AP500 SCH35
1
H
100058-3DRP
ASSEMBLY, DIFFUSER 3 DROP
1
H1
180114
PIPE, .50 PVC SCH40
(1) 5" LONG
H2
180103
ELL, .50 90° PVC SCH40
1
H3
240058
GROMMET, 1/2" ADAPT-A-FLEX
1
I
AKC10052-A
HYDRO-ACTION, PLATFORM DARK GREEN
1
I1
200094
SCREW, 1.50" X #12 SELF-TAPPING
4
J
241022
RISER, TANK 24" X 6" PL
1
J1
200059
SCREW, 1" #10 SELF-TAP PPH SS
6
J2
AKR30505
CONSEAL, 1/2" X 21'
.333
K
241024
LID, TANK RISER 24" PL
1
K1
200070
SCREW, 1 1/2" TRIGROOVE SM
4
K2
N/A
SCREW, LID (SUPPLIED W/LID)
4
K3
120000
ASSEMBLY, MUSHROOM CAP
1
K4
760050
TAG, SERIAL NUMBER AP500
1
K5
200025
RIVET, 1/8" GRIP 1/8" DIA. POP
4
N/A
SIKAFLEX
1 TUBE
DRAWN BY: A.DAVIS
APPROVED BY:
SIGNATURE
REV.
4
PART#
HA-AP500-P
DATE:
1/31/13
AP500 W/PLATFORM COMPLETE
70
1
4
66
Ø76
Ø70
Ø66
Ø73
Ø24
7
8
Ø24
1
2
64
K
3/4"
A
D
A
P
T
-
A
-
F
L
E
X
A
I
N
D
U
S
T
R
I
E
S
K
3/4"
A
D
A
P
T
-
A
-
F
L
E
X
A
I
N
D
U
S
T
R
I
E
S
K
3/4"
A
A
I
A
D
A
P
T
-
A
-
F
L
E
X
A
D
A
P
T
-
A
-
F
L
E
X
BILL OF MATERIALS
ITEM P/N DESCRIPTION
QTY:
hydro
action
green from the ground up
R
A4-A8
H1-H3
K-K5
A2
D
G
E
H
A1
B
A3
D
C
I-I1
F
J-J2
