Hydropool SS19ET - 230 V 50 Hz Single Phase RCD Wiring; 230 V 50 Hz Dual Phase RCD Wiring; 230 V 50 Hz Three Phase RCD Wiring

15

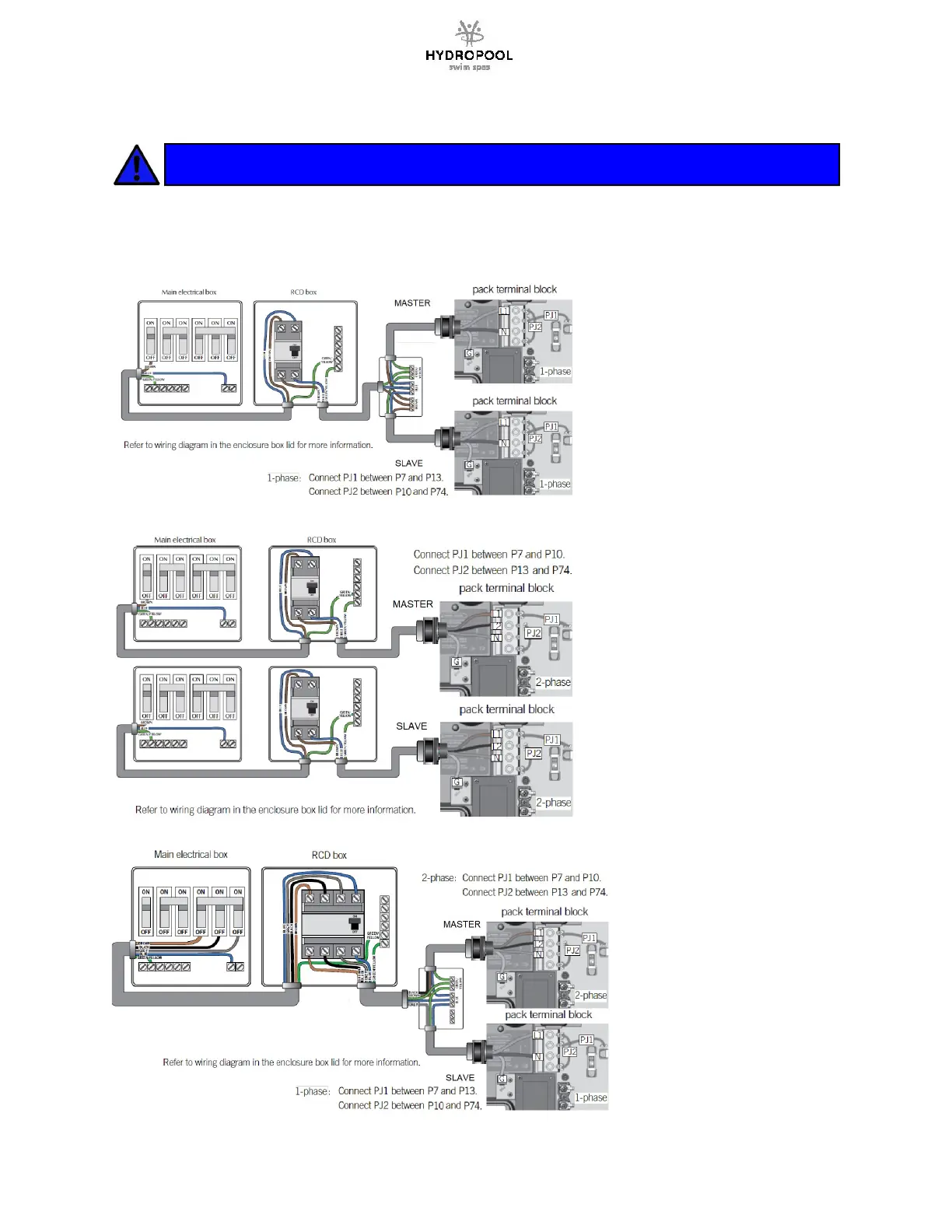

EUROPE – R.C.D. INSTALLATION - TYPICAL
Important Note: Installaon of the R.C.D. - Circuit Breaker, including ampere sizing and selecon of conductor size and
type, must be performed by a qualified electrician in accordance with Naonal, Regional and Local Codes and Regulaons
in effect at the me of installaon.
NOTICE
230 VOLT 50 Hz THREE PHASE RCD WIRING
230 VOLT 50 Hz SINGLE PHASE RCD WIRING
230 VOLT 50 Hz DUAL PHASE RCD WIRING
