z
When making wire connections, do not pull excessively on controller wires as
they can become disconnected
z
Properly ground controller.
z
When reinstalling controller face or lower cover, do not trap wires between
standoffs and screws.

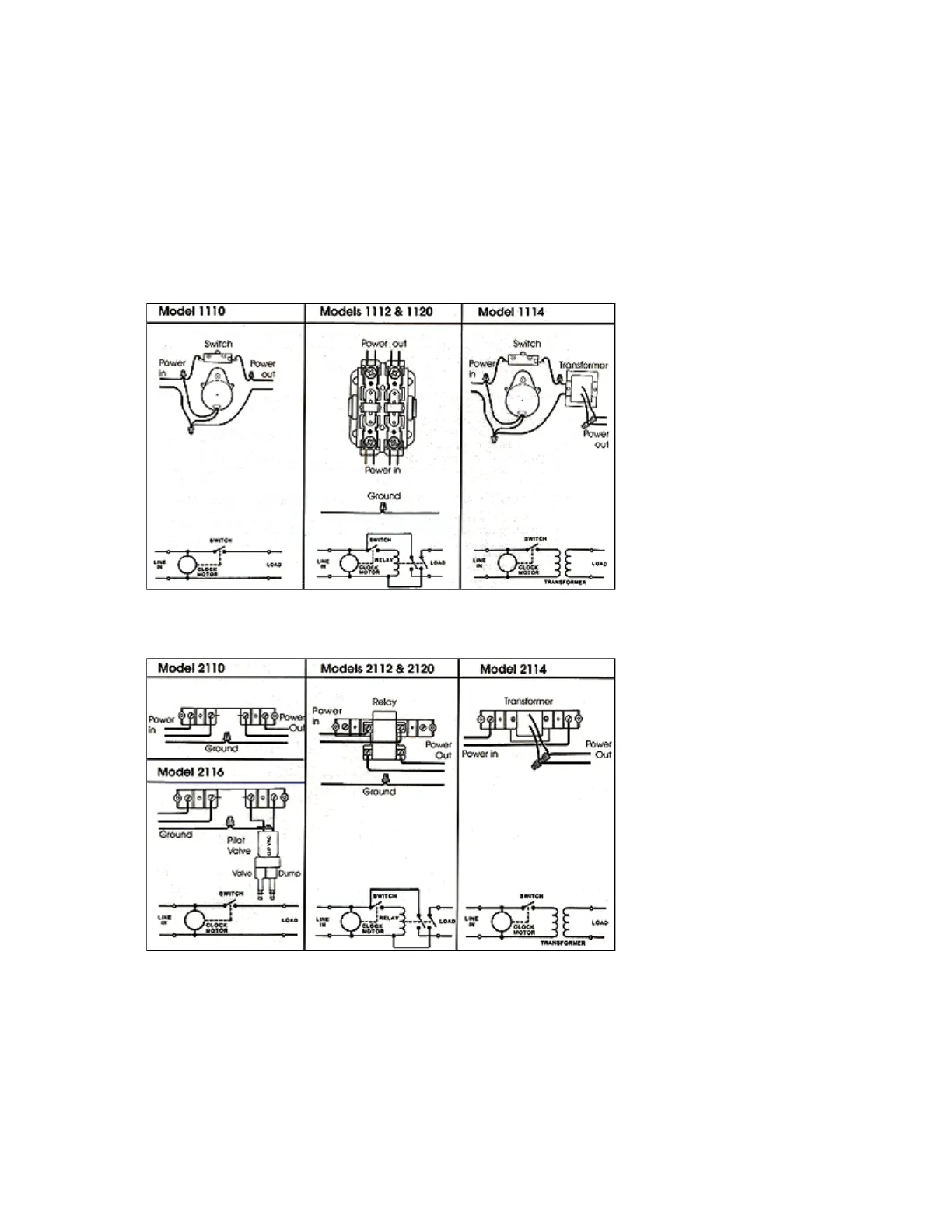

ELECTRICAL WIRING AND CIRCUIT DIAGRAMS
1000 Series
2000 Series
SETTING AND CONNECTION INSTRUCTIONS
Setting Instructions:
z
To operate 2200 Series Controller every 10 minutes continuously, make sure
that all 14 CYCLE WHEEL pins are pushed in.
z
When setting TIME DIAL, turn only in a CLOCKWISE direction. Never force
Pa
e 3 of 9
