Hydrotek 2000 User Manual

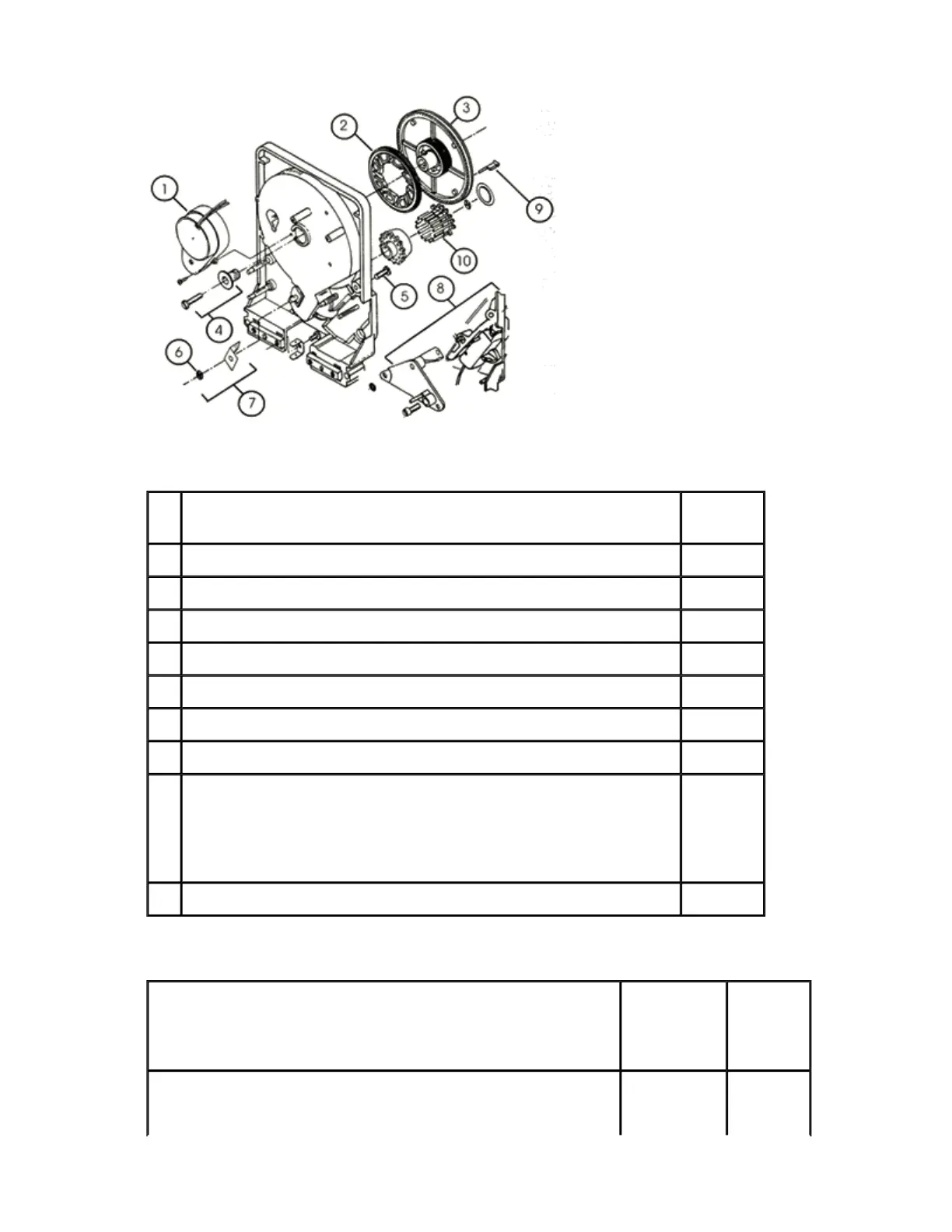

PARTS LIST
OTHER COMPONENTS
1 110 VAC motor, 60 cycle
220 VAC motor, 60 cycle
1111025
1122025
2 Drive gear 1000103
3 Time dial 1000102
4 Time dial retainer and screw 1000104
5 Chassis screws(4) 4331214
6 Black retainer nuts(10) 1009932
7 Day wheel metal spring assembly 1000117
8 Switch assembly(switch,adj screw,arm,spring,knoband cover) 1000120
9 15 minute white timing pin(18)
7 minute yellow timing pin(18)
3 minute orange timing pin(18)
Mixed assortment of timing pins(6 each)
1 hour black timing pin (6)
1009955
1009956
1009957
1009947
1009959
10 14 day retained pin set for day wheel 1000114
Relay, 110 VAC, 60 Hz coil, double throw, single pole, 2
HP
1000
Series
2000
Series
1300110
1320110
Relay, 220 VAC, 60 Hz coil, double throw, single pole,
2HP
1000
Series
1300220
1320220
Pa
g
e 5 of 9
