Page 27

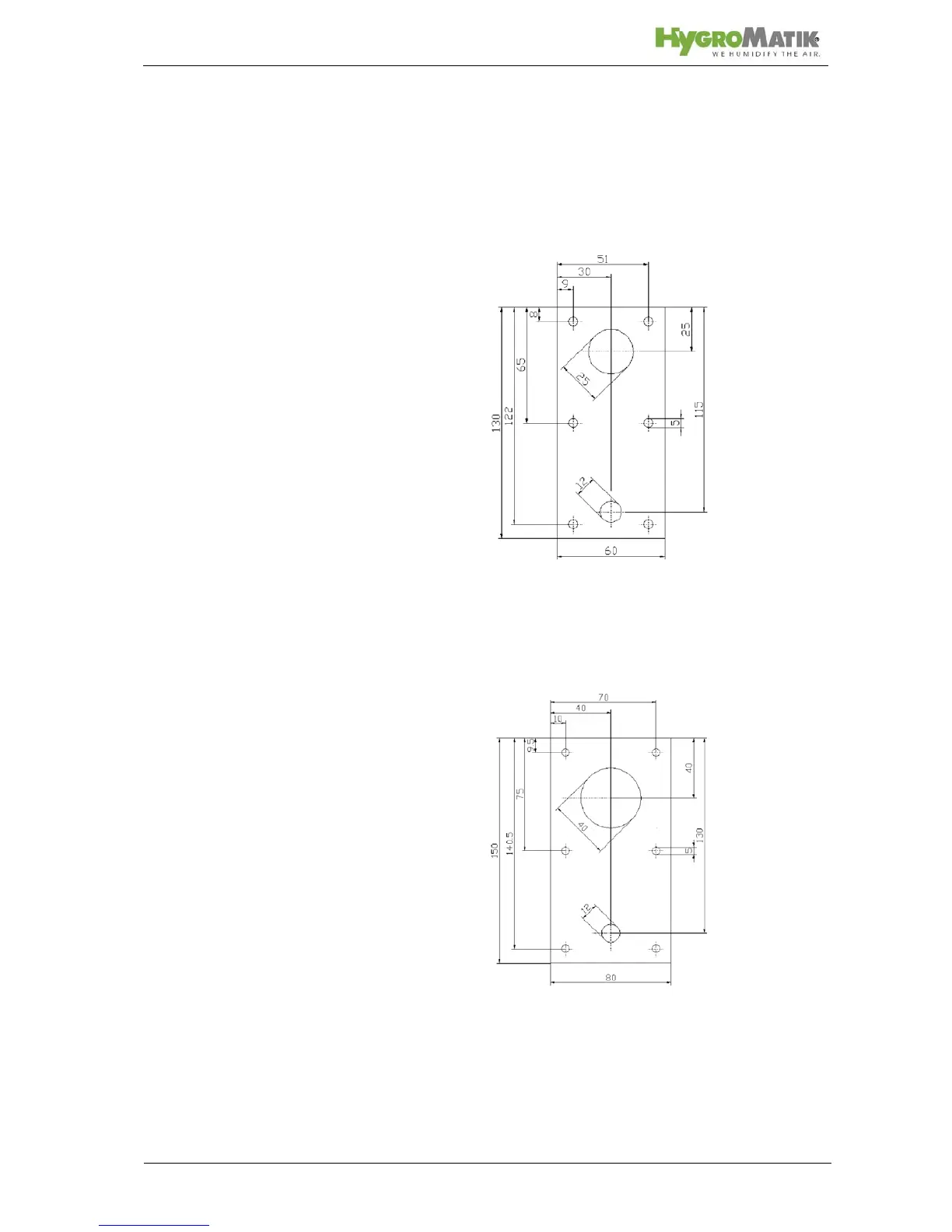

5.6 Cover Plate
HygroMatik flange plates may be used to neatly complete instal-
lation of the steam humidifier in the air duct.
Two-piece flange plates are available for the DN25 and DN40
steam manifolds.
flange plate DN25 E-2604260
flange plate DN40 E-2604410
