Page 40
7.3 Fan Unit

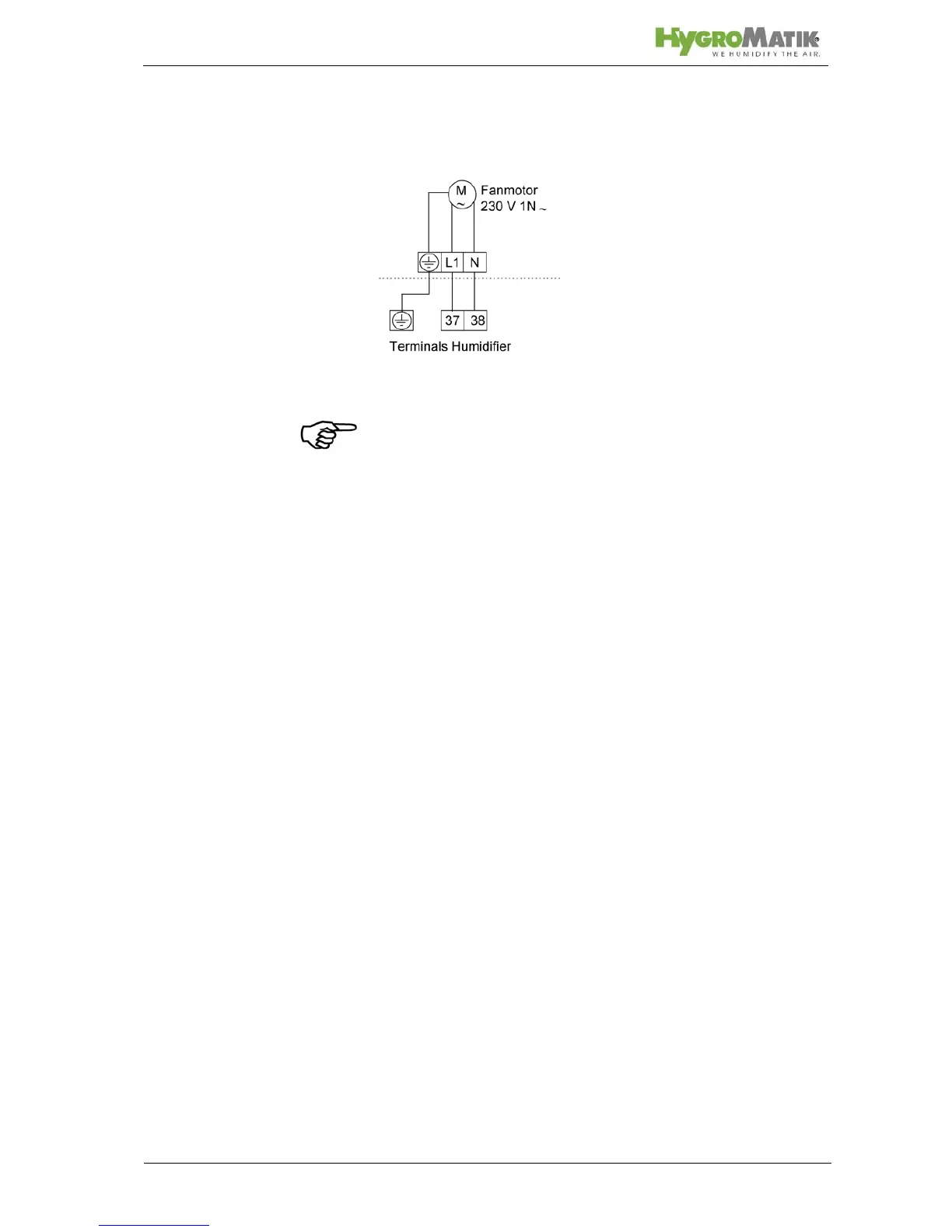

» Connect fan unit according to the wiring diagram.
The fan unit operates in parallel with the humidifier.
Note: Terminals 37 and 38 are only installed if the option „fan
unit“ is ordered.
