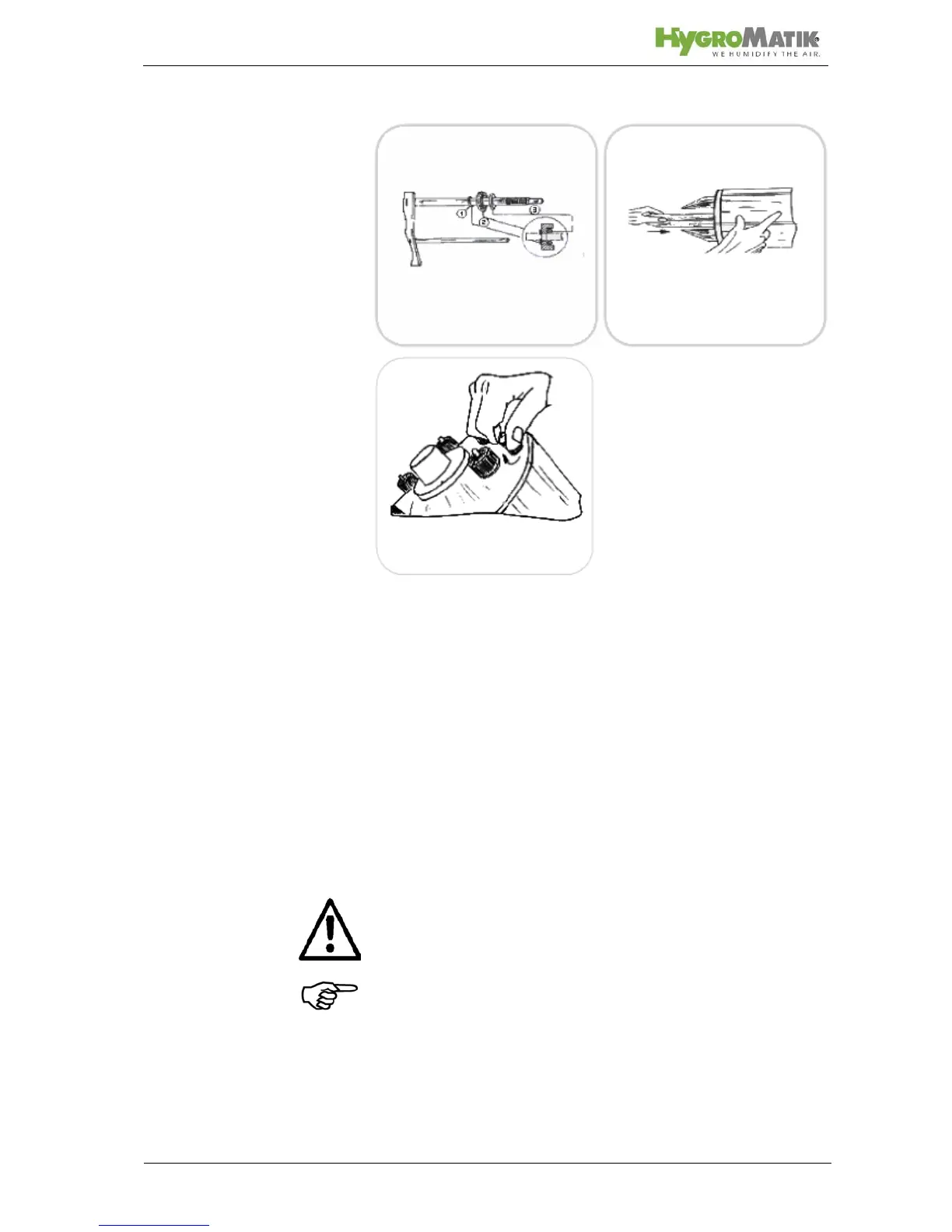

» Remove and open cylinder, as described in Section
"Removing and Cleaning Steam Cylinder."
» Loosen knurled nuts (5) and remove electrodes (48).
» Install new electrodes and hand tighten the nuts.
Use solvent-free, HygroMatik-quality o-rings (for flange, cylinder
base and steam hose adapter).
» Assemble steam cylinder and place it into cylinder
» Connect plugs (4) directly to the electrodes (48) (with
gray, red and black knurled nuts). It is not necessary to
detach the knurled nuts!
Warning: The plug must be pressed down onto the electrode as
far as it will go.
Note: Connect plugs to the correct electrodes. Pay attention to
the color of the knurled nut.
fasten handnut hand-tight
L1=black, L2=red, L3=grey
B1=grey
