Page 21

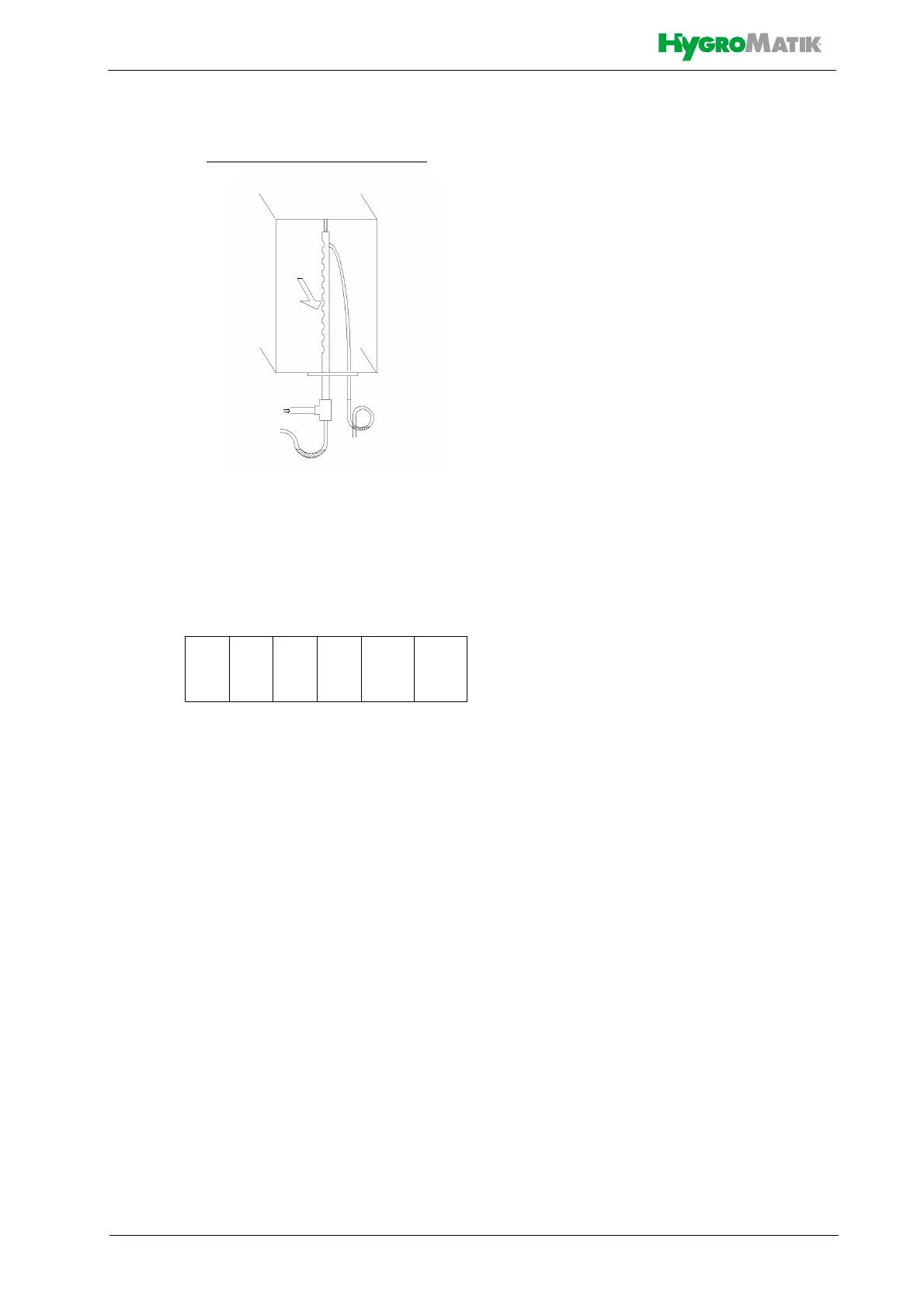

Vertical steam manifold installation
Horizontal installation of the steam mani-
folds is preferable. However, vertical
installation into the air duct from below is
also possible.
Standard manifold dimensions [mm]/
[inch]***:
*** Special lengths on demand.
Number and size of the steam manifolds
available as well as the nominal diameter
of the repective steam and condensate
hoses may be taken from the tables
shown in chapter „Technical Data“.
220/
8.7
400/
15.7
600/
23.6
900/
35.4
1200/
47.2
1450/
57.1
Steam manifold arrangement
Steam supply
Air flow
direction
