Machine Interface Receptacle with Voltage Divider PCB
12 806980 Field Service Bulletin Powermax65/85/105/125, Powermax65/85/105 SYNC

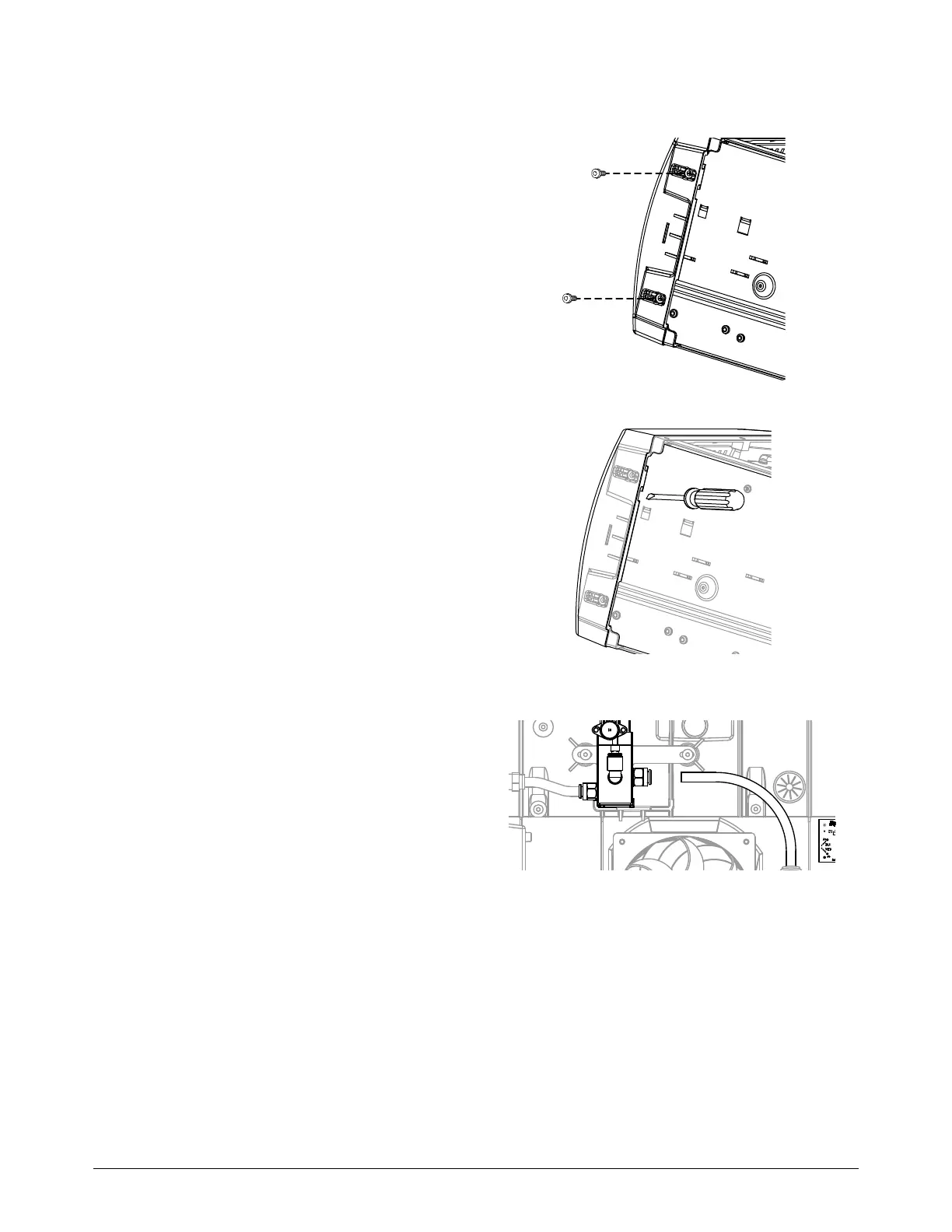

2. Optional: If it is necessary to move the front panel to get access to the connections on the
power PCB, do the following:
a. Carefully put the plasma power supply
onto the fan side.
b. Remove the 2 screws that hold the
front panel to the bottom of the plasma
power supply.
c. Disconnect the front panel from the
bottom of the plasma power supply
with a blade screwdriver.
d. Put the plasma power supply in the
upright position.
e. Remove the gas hose from the
push-to-disconnect fitting on the
solenoid valve.
f. Tilt the front panel away from the body
of the plasma power supply as
necessary. The front panel is still
attached to the plasma power supply
and can move only a short distance.
