Machine Interface Receptacle with Voltage Divider PCB
Powermax65/85/105/125, Powermax65/85/105 SYNC Field Service Bulletin 806980 17

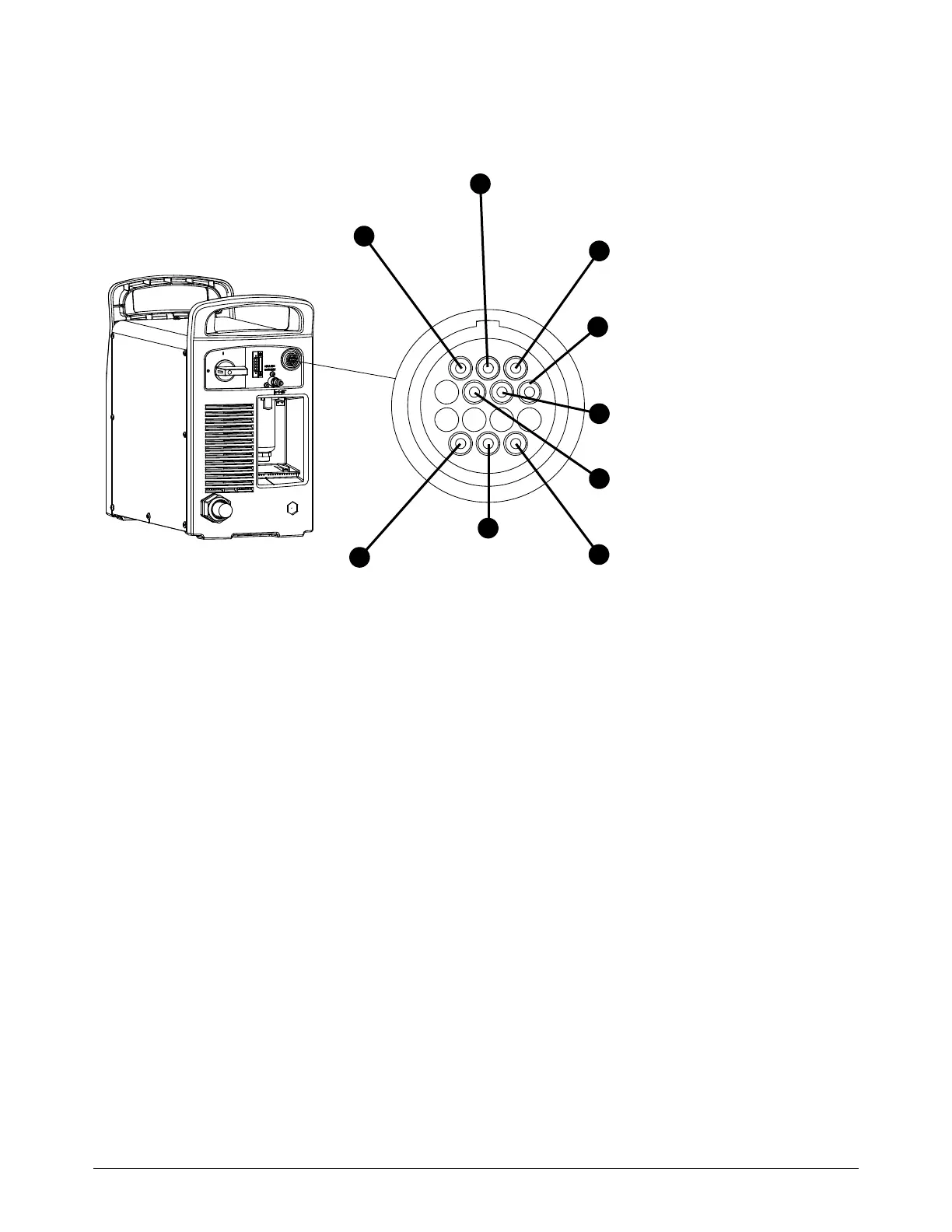

Machine interface receptacle sockets
Arc voltage sockets 5 and 6 are used for pin for pin connection to legacy
cables.
Sockets 1 and 2 are duplicate arc voltage sockets for future use. Sockets
1 and 2 are not used for most installations.
For more information, refer to the Powermax65/85/105 SYNC Mechanized Cutting Guide
(810480).
13
14
12
6
5
3
4
Plasma start
Plasma start
Arc voltage (+)
Legacy
Arc voltage (–)
Legacy
Arc transfer
Ground
Arc transfer
1
2
Arc voltage (-)
Future use
Arc Voltage (+)
Future use
