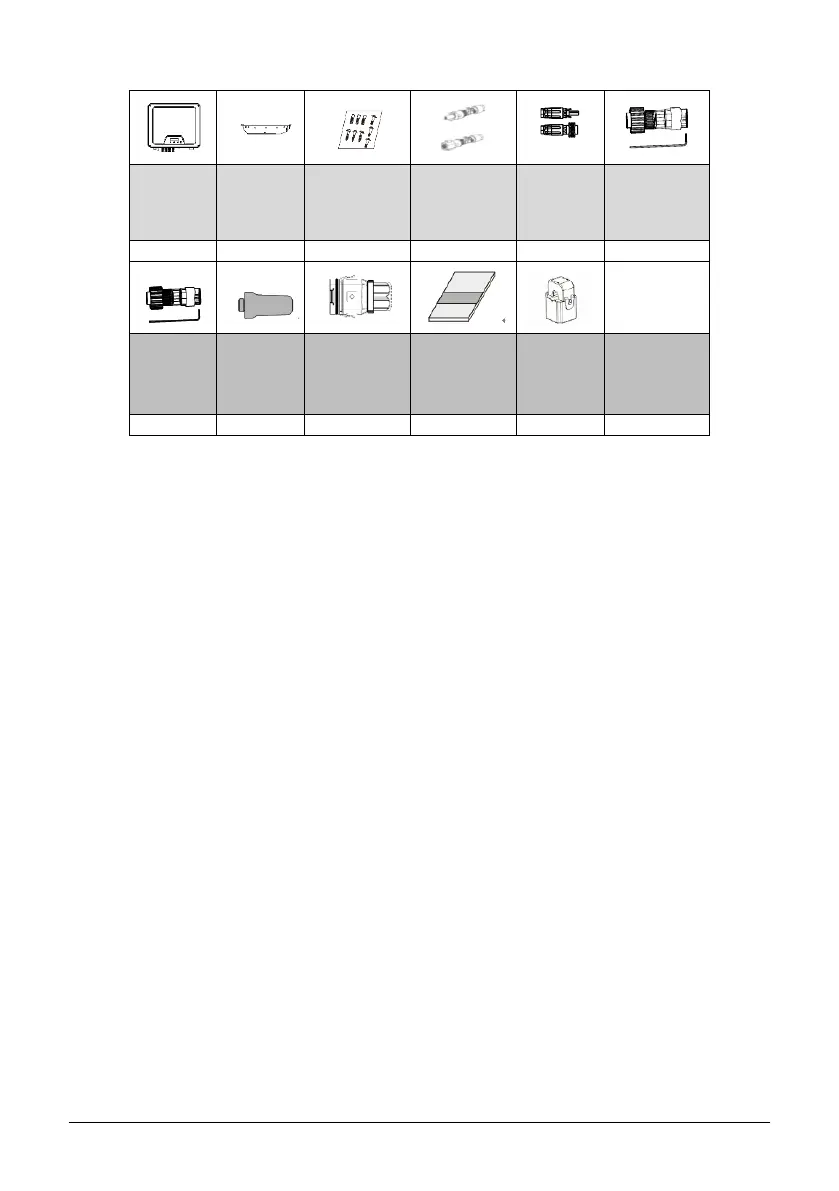

7 HHT-5000/6000/8000/10000/12000 USER MANUAL
INVERTER
MOUNTING
BRACKET
MOUNTING
ACCESSORIES
DEVALAN
DC PLUGS
(SEALED)
BAT+/-
CONNECTOR
AC –GRID
CONNECTOR
1
1
1
2
1
1
BACK -UP
CONNECTOR
COMMUNICA
TION
DATALOGGER
(OPTIONAL)
METER /DRED
CONNECTOR
DOCUMENTS
CT
1
1
1
1
3
3.2 Product Overview
The total size of HHT-5000/6000/8000/10000/12000 is 425(width) ×351(height)
×200(depth) mm. It has 2 pairs of PV input terminals 、1 pair of Battery input terminal
and 2 communication ports. It also has a LED&LCD (or just LED, determined by user) for
getting information and setting parameters at field.
