- 6 -

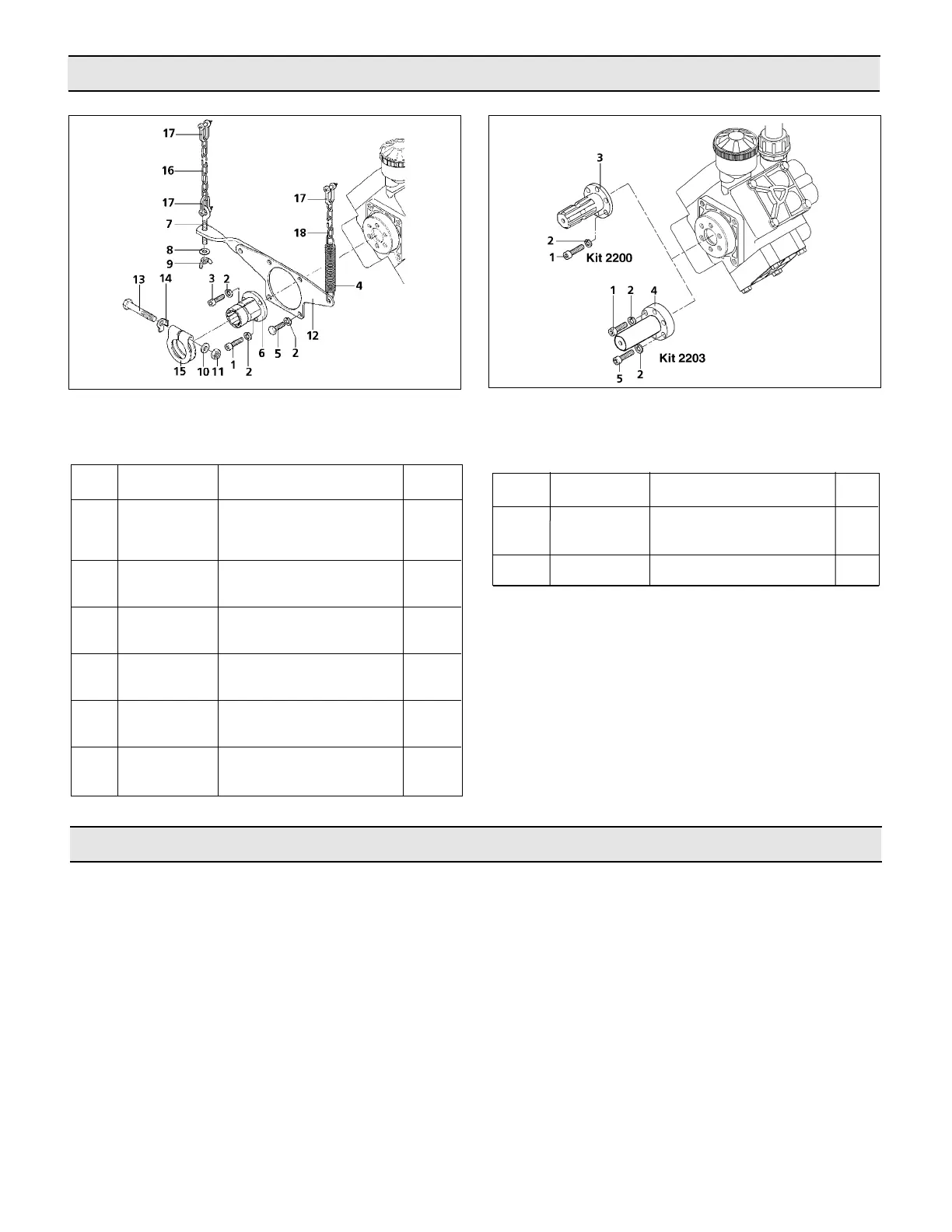

Figure 3. Female Splined Coupler Kit 9910-KIT2204
Installation
Parts List for 9910-KIT2204
Parts List for 9910-KIT2204, 9910-KIT2200 and 9910-KIT2203
Figure 4. Male Splined Shaft Kit 9910-KIT2200 and
Solid Shaft Kit 9910-KIT2203
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
1 9910-160671 M10x25 Bolt 3
2 9910-200231 Washer 10
3 9910-620470 M10x20 Bolt 3
4 9910-650380 Spring 1
5 9910-620340 M10x20 Bolt 4
6 9910-620270 Shaft 1
7 9910-320630 Eye bolt 1
8 9910-320620 Washer 1
9 9910-320610 Wing nut 1
10 9910-320131 Washer 1
11 9910-320130 Nut 1
12 9910-650350 Pump bracket 1
13 9910-320170 M12x75 Bolt 1
14 9910-500171 Washer 1
15 9910-500160 Clamp 1
16 9910-320640 Chain 1
17 9910-650340 Chain hook 4
18 9910-320641 Chain 1
Shaft Adapter Kit Installation
Parts List for 9910-KIT2200 and 9910-KIT2203
REF. PART QTY.
NO. NUMBER DESCRIPTION REQÕD.
1 9910-160671 M10x25 Bolt 3
2 9910-200231 Washer 6
3 9910-620240 Shaft, 6 spline 1
4 9910-621600 Shaft, 1 inch 1
5 9910-620470 M10x20 Bolt 3
Form L-1383 (12/11, Rev. B)
Order appropriate shaft kit according to chart on page 2.
Female Splined Coupler Kit 9910-KIT2204 (See Fig. 3)
1.
Install the splined shaft adapter (Ref. 6) onto the
pump shaft and secure with three allen head bolts
(Ref. 1) and three washers (Ref. 2).
2. Install the torque arm bracket over the shaft of the
pump. Align the holes and secure with the four bolts
(Ref. 5) and four washers (Ref. 2) placed in the top
two holes in the bracket.
3. Position the clamp (Ref. 15) over the groove in the
splined shaft adapter. Install the bolt (Ref. 13) into the
clamp.
4. Slide the pump assembly onto the PTO shaft and
secure by tightening the bolt (Ref. 13).
5. Attach chains to the bracket and secure to the tractor
to prevent rotation of the pump during operation.
Solid Shaft Kit 9910-KIT2203
Male Splined Shaft Kit 9910-KIT2200 (See Fig. 4)
1. Install shaft adapter onto pump and secure with allen
bolts and washers.
To Next Page
