8.
Remove valve rocker arm supports.
9.
Remove valve push rods.

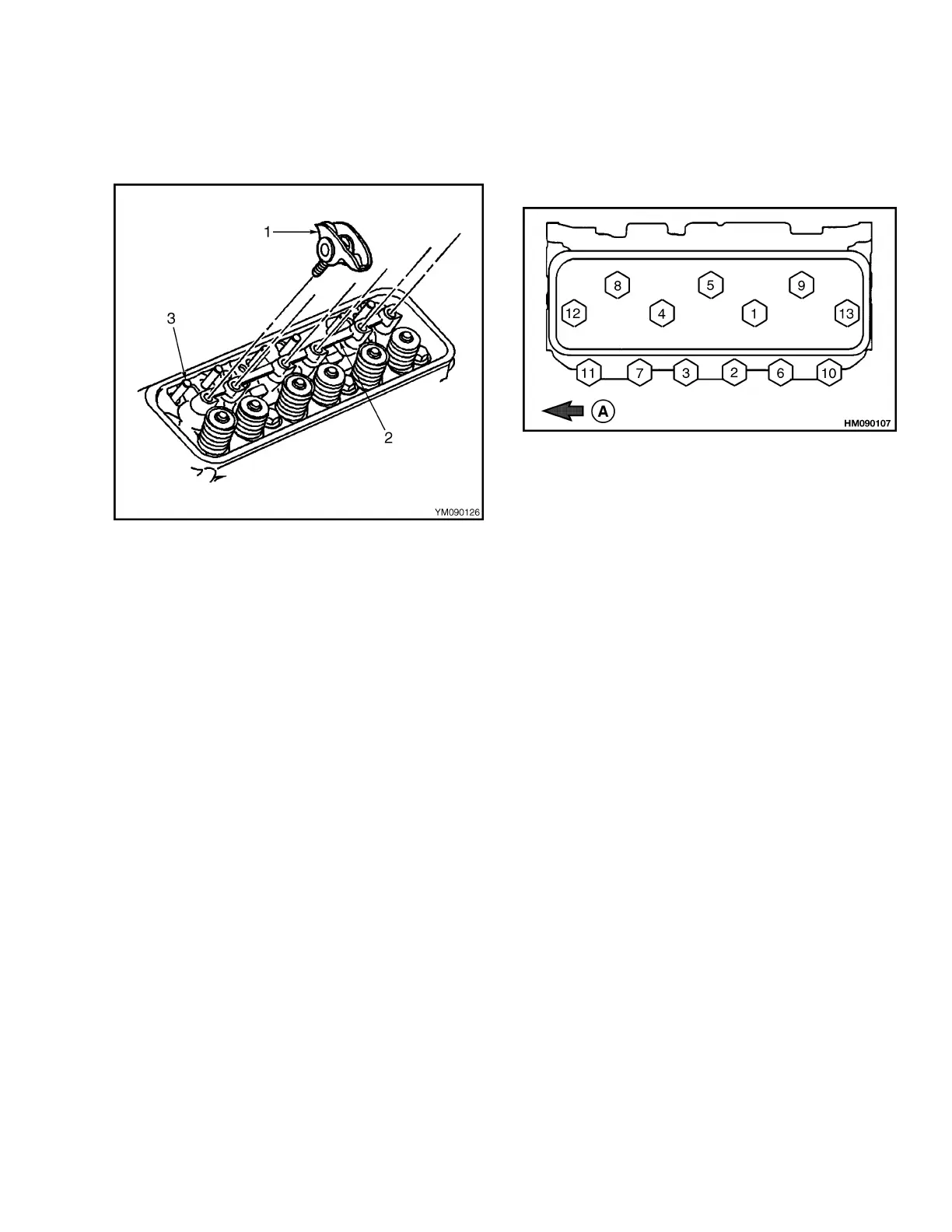

1. VALVE ROCKER ARM
2. VALVE ROCKER ARM SUPPORT
3. PUSH ROD
Figure 2. Remove Valve Rocker Arm and Push
Rod
10.
Remove capscrews that hold cylinder head to
block in the sequence shown in Figure 3. Re-
move cylinder head and gasket. Discard cylin-
der head gasket.
A. FAN END
Figure 3. Cylinder Head Capscrew Removal
Sequence
11.
Using a valve spring compressor, remove valve
stem keys, caps, springs, and oil seals. Discard
oil seals. Remove valves. Organize valves and
springs so they can be installed in their original
positions. See Figure 4.
0600 SRM 1251 Cylinder Head Repair
