1. COOLANT JACKET
2. CYLINDER BORE
3. VALVE LIFTER BORES
4. THREADED HOLES
5. CRANKSHAFT BEARING WEBS
6. CRANKSHAFT BEARING CAPS
7. CRANKSHAFT BEARING BORES
8. ENGINE BLOCK HOLE PLUG BORE
9. ENGINE BLOCK
10. ENGINE MOUNT BOSSES

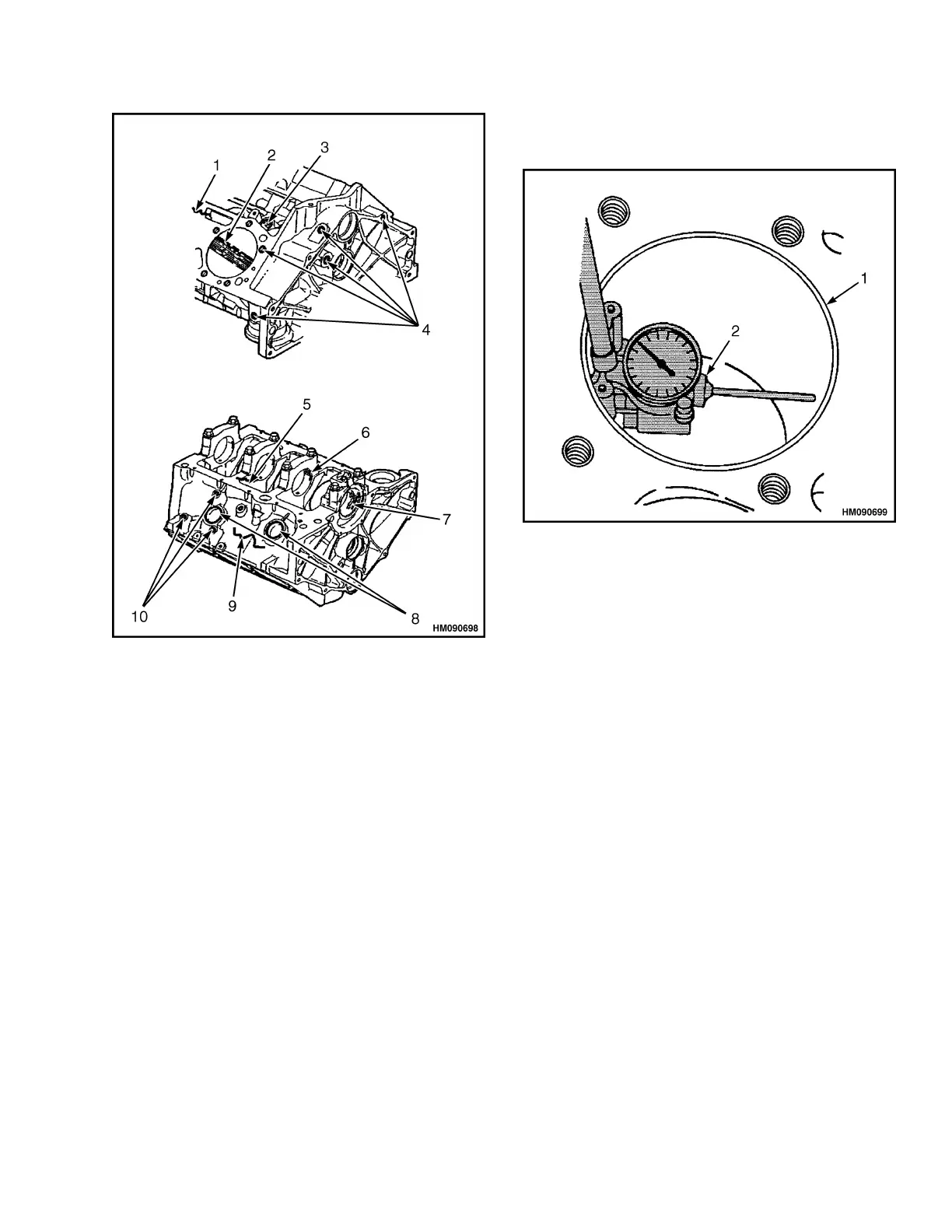

Figure 28. Engine Block Inspection
7.
Measure cylinder bores for taper and out-of-
round. See Figure 29.
1. PISTON CYLINDER BORE
2. BORE MEASURING DEVICE
Figure 29. Cylinder Bore Taper and Out-of-Round
Inspection
0600 SRM 1251 Engine Block Cleaning and Inspection
19
