LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE


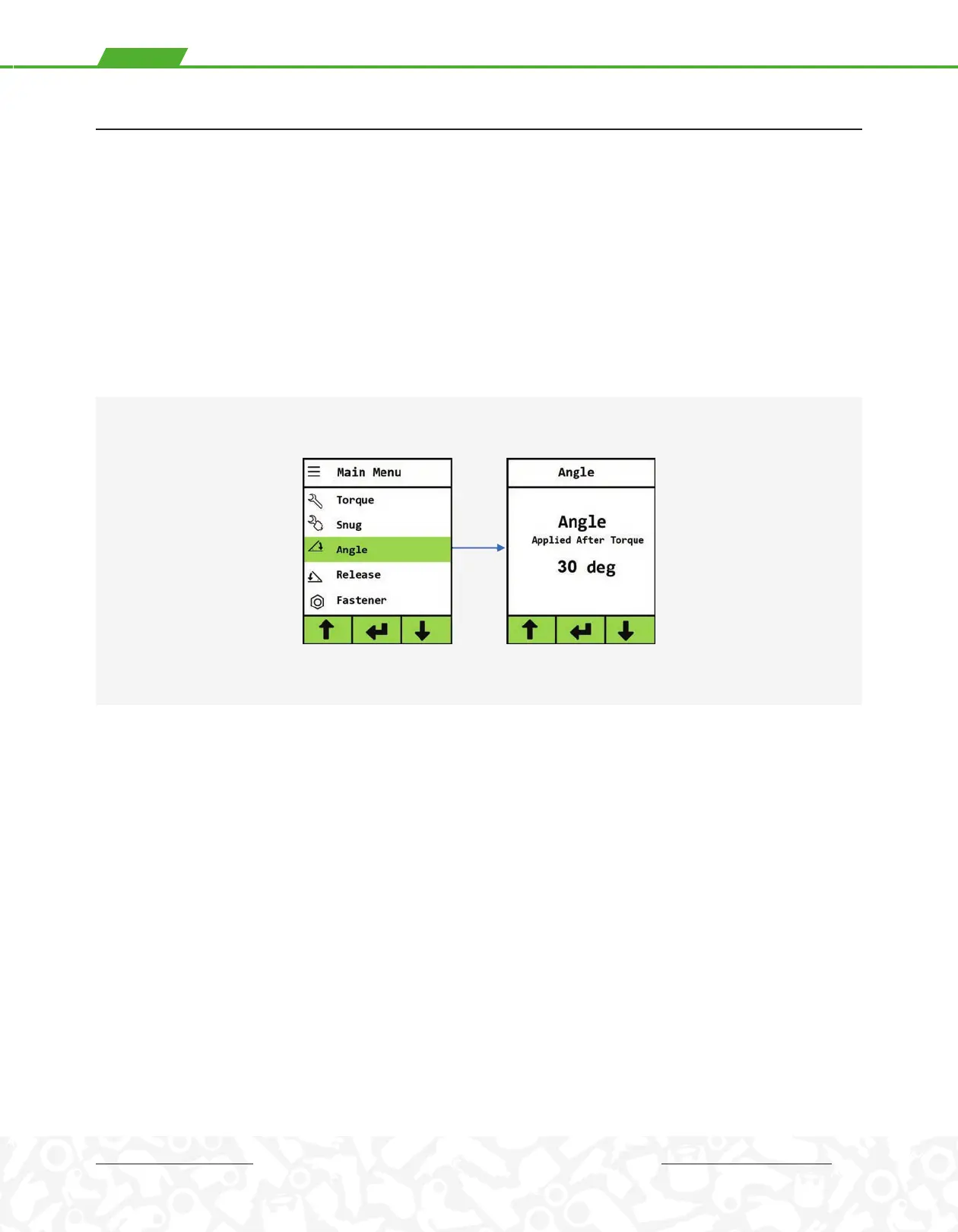

The Angle sub-menu allows the user to adjust the angle to the nearest degree, from 0 to 360 degrees. The Angle selected
on this screen is always applied in a “Torque and Angle” sequence within the same trigger event as the Torque operation.
The Angle value is subject to the Angle limits set in the preferences menu.
Press the center button to select the Angle and return to the primary menu. The angle value is displayed in the box in the
upper left of the screen. The Angle value is saved in the tool and will be displayed the next time the user selects the Angle
option from the menu.
Just as with Torque, a Release value is required following Angle. During a Torque, Angle and Release operation in the
same trigger pull, Angle is always applied after Torque and before Release. The Angle always turns the nut in the same
direction as Torque.
ANGLE
(CONT’D.)(CONT’D.)
