LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE

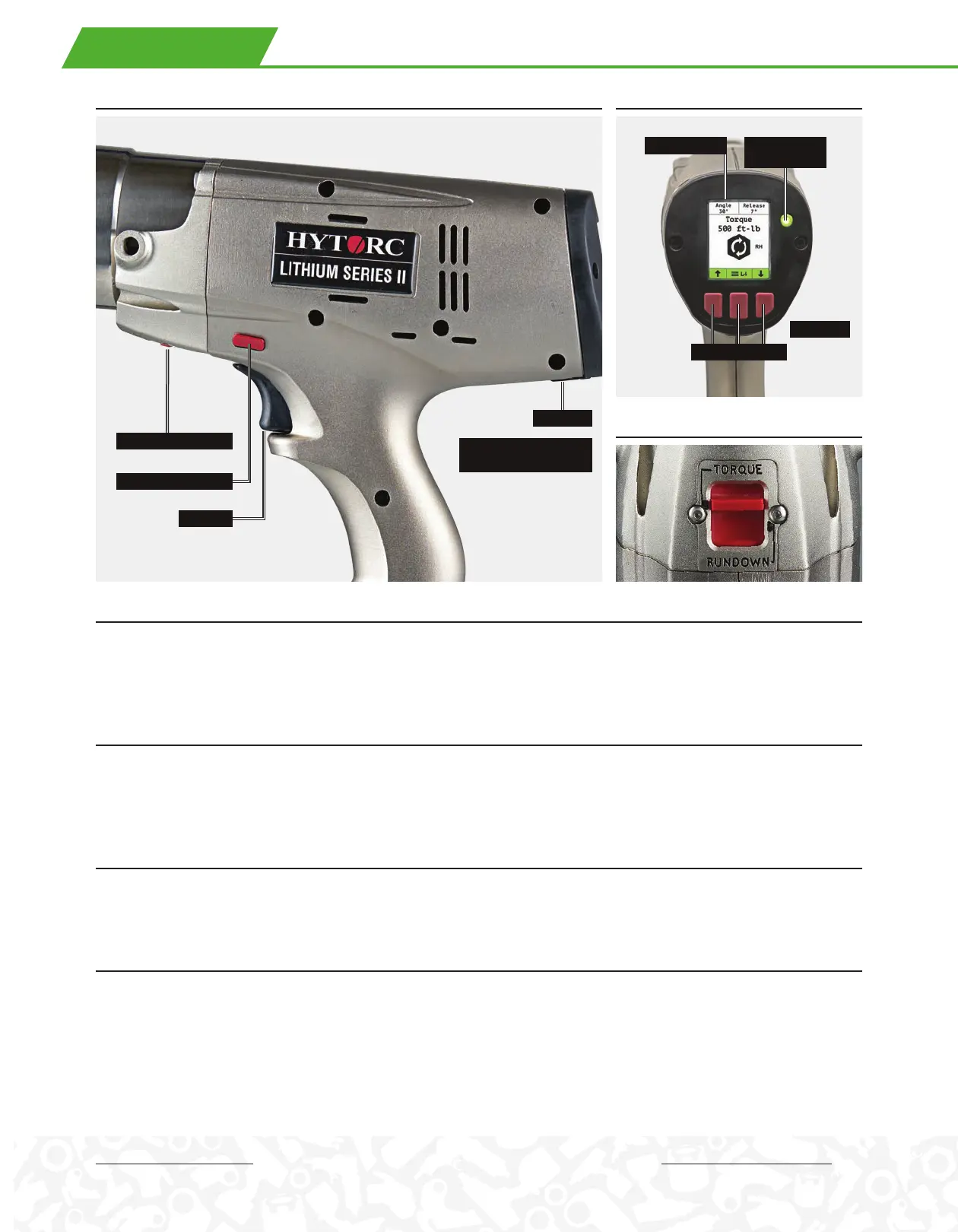

CONTROL PANEL
The control panel on the rear of the tool provides the primary user interface with high-resolution screen and three push
buttons. The user configures all bolting functions displayed on the screens using the push buttons. A visible status LED
and audible beeper also provide control indicators during operation.
POWER ON/OFF
The tool is powered on by pushing any of the three Push Buttons. Power may be turned o from the Home Screen by
pushing and holding the center button for approximately 3-seconds.
SWITCHES
The Tool contains a speed switch, a directional control switch and a trigger. The speed switch allows the user to switch
between Rundown (fast speed) and Torque (slow speed). The directional switch allows the user to switch between right-
hand (clockwise) and left-hand (counter clockwise) rotation. The trigger is pulled and held to actuate bolting operations.
COMMUNICATION
The tool is equipped with both Bluetooth® Wireless Technology and a USB port. These communication channels provide a
means for importing Job IDs and Profiles to the tool and exporting job data from the tool, as well as for firmware upgrade.
NOTE: Bluetooth® is a registered trademark of the Bluetooth® Special Interest Group.
Beeper
LCD Screen
LED Status
Indicator
Push Buttons
CONTROL PANELSWITCHES
DUAL SPEED SWITCH
USB Port
Bluetooth®
Wireless Technology
Dual Speed Switch
Directional Switch
Trigger
. CONTROL PANEL
