ID
Spare parts description
HY-.5XLT
HY-1XLT
HY-3XLT
HY-5XLT
HY-8XLT
HY-10XLT
HY-20XLT
HY-25XLT
1*
Housing Complete
XLT-.5-01-
E
XLT-01-01-E
XLT-03-01-E
XLT-05-01-E
XLT-08-01-
E
XLT-10-01-E
XLT-20-01-E
XLT-25-01-E
3
Reaction Arm
XLT-.5-03
XLT-01-03
XLT-03-03
XLT-05-03
XLT-08-03
XLT-10-03
XLT-20-03
XLT-25-03
4
Drive Plate Universal
XLT-.5-04
XLT-01-04
XLT-03-04
XLT-05-04
XLT-08-04
XLT-10-04
XLT-20-04
XLT-25-04
5
Square Drive Square Through
XLT-.5-05-A
XLT-01-05-A
XLT-03-05-A
XLT-05-05A
XLT-08-05-A
XLT-10-05-A
XLT-20-05-A
XLT-25-05A
5
Square Drive Spline
XLT-.5-05-1
XLT-01-05-1
XLT-03-05-1
XLT-05-05-1
XLT-08-05-1
XLT-10-05-1
XLT-20-05-1
XLT-25-05-1
6
Ratchet Square
XLT-.5-06-A
XLT-01-06-A
XLT-03-06-A
XLT-05-06-A
XLT-08-06-A
XLT-10-06-A
XLT-20-06-A
XLT-25-06-A
6
Ratchet Spline
XLT-.5-06-1
XLT-01-06-1
XLT-03-06-1
XLT-05-06-1
XLT-08-06-1
XLT-10-06-1
XLT-20-06-1
XLT-25-06-1
7
Drive Bushing for Steel Sleeve
XLT-.5-07-0
XLT-01-07-0
XLT-03-07-0
XLT-05-07-0
XLT-08-07-0
XLT-10-07-0
XLT-20-07-0
XLT-25-07-0
7
Drive Bushing for A/B Sleeve
XLT-.5-07-1
XLT-01-07-1
XLT-03-07-1
XLT-05-07-1
XLT-08-07-1
XLT-10-07-1
XLT-20-07-1
XLT-25-07-1
8
Drive Sleeve Round steel
XLT-.5-08-0
XLT-01-08-0
XLT-03-08-0
XLT-05-08-0
XLT-08-08-0
XLT-10-08-0
XLT-20-08-0
XLT-25-08-0
8
Drive Sleeve Square BR/ALU
XLT-.5-08-A
XLT-01-08-A
XLT-03-08-A
XLT-05-08-A
XLT-08-08-A
XLT-10-08-A
XLT-20-08-A
XLT-25-08-A
8
Drive Sleeve Spline BR/ALU
XLT-.5-08-1
XLT-01-08-1
XLT-03-08-1
XLT-05-08-1
XLT-08-08-1
XLT-10-08-1
XLT-20-08-1
XLT-25-08-1
10
Reaction Pawl
XLT-.5-10
XLT-01-10
XLT-03-10
XLT-05-10
XLT-08-10
XLT-10-10
XLT-20-10
XLT-25-10
11
Drive Retainer
XLT-.5-11
XLT-01-11
XLT-03-11
XLT-05-11
XLT-08-11
XLT-10-11
XLT-20-11
XLT-25-11
13
Drive Plate Roll Pin
XLT-.5-13
XLT-01-13
XLT-03-13
XLT-05-13
XLT-08-13
XLT-10-13
XLT-20-13
XLT-25-13
15
Lever
XLT-.5-15
XLT-01-15
XLT-03-15
XLT-05-15
XLT-08-15
XLT-10-15
XLT-20-15
XLT-25-15
17
Piston Connector Rod
XLT-.5-17
XLT-01-17
XLT-03-17
XLT-05-17
XLT-08-17
XLT-10-17
XLT-20-17
XLT-25-17
18
Reaction Pawl Spring
XLT-.5-18
XLT-01-18
XLT-03-18
XLT-05-18
XLT-08-18
XLT-10-18
XLT-20-18
XLT-25-18
19
Rod Spring
XLT-.5-19
XLT-01-19
XLT-03-19
XLT-05-19
XLT-08-19
XLT-10-19
XLT-20-19
XLT-25-19
20
Drive Sleeve O-Ring
XLT-.5-20
XLT-01-20
XLT-03-20
XLT-05-20
XLT-08-20
XLT-10-20
XLT-20-20
XLT-25-20
24
Piston Sleeve
XLT-.5-24
XLT-01-24
XLT-03-24
XLT-05-24
XLT-08-24
XLT-10-24
XLT-20-24
XLT-25-24
25
Piston with Seals
XLT-.5-25
XLT-01-25
XLT-03-25
XLT-05-25
XLT-08-25
XLT-10-25
XLT-20-25
XLT-25-25
26
End Cap with Screws
XLT-.5-26-1
XLT-01-26-1
XLT-03-26-1
XLT-05-26-1
XLT-08-26-1
XLT-10-26-1
XLT-20-26-1
XLT-25-26-1
26
End Cap used with E style housing
only
XLT-.5-26-E
XLT-01-26-E
XLT-03-26-E
XLT-05-26-E
XLT-08-26-E
XLT-10-26-E
XLT-20-26-E
XLT-25-26-E
27
Drive Pawl Spring (2)
XLT-.5-27
XLT-01-27
XLT-03-27
XLT-05-27
XLT-08-27
XLT-10-27
XLT-20-27
XLT-25-27
28
Reaction Arm Clamp
XLT-.5-28
XLT-01-28
XLT-03-28
XLT-05-28
XLT-08-28
XLT-10-28
XLT-20-28
XLT-25-28
29
Piston Rod
XLT-.5-29
XLT-01-29
XLT-03-29
XLT-05-29
XLT-08-29
XLT-10-29
XLT-20-29
XLT-25-29
30
Retainer Ring
XLT-.5-30
XLT-01-30
XLT-03-30
XLT-05-30
XLT-08-30
XLT-10-30
XLT-20-30
XLT-25-30
31-0
Shroud, 4-Screw Type
XLT-.5-31-0
XLT-01-31-0
XLT-03-31-0
XLT-05-31-0
XLT-08-31-0
XLT-10-31-0
XLT-20-31-0
XLT-25-31-0
40574
Shroud, Spring Type
XLT-.5-31-1
XLT-01-31-1
XLT-03-31-1
XLT-05-31-
XLT-08-31-1
XLT-10-31-1
XLT-20-31-1
XLT-25-31-
32
Screw, Shroud
XLT-.5-32
XLT-01-32
XLT-03-32
XLT-05-32
XLT-08-32
XLT-10-32
XLT-20-32
XLT-25-32
33
Spring, Secondary Drive Pawl
XLT-.5-33
XLT-01-33
XLT-03-33
XLT-05-33
XLT-08-33
XLT-10-33
XLT-20-33
XLT-25-33
34
Screws, End Cap
XLT-.5-34
XLT-01-34
XLT-03-34
XLT-05-34
XLT-08-34
XLT-10-34
XLT-20-34
XLT-25-34
37
Screw, RA Clamp
XLT-.5-37
XLT-01-37
XLT-03-37
XLT-05-37
XLT-08-37
XLT-10-37
XLT-20-37
XLT-25-37
38
Spring, RA Clamp
XLT-.5-38
XLT-01-38
XLT-03-38
XLT-05-38
XLT-08-38
XLT-10-38
XLT-20-38
XLT-25-38
39
Lever screw
XLT-.5-39
XLT-01-39
XLT-03-39
XLT-05-39
XLT-08-39
XLT-10-39
XLT-20-39
XLT-25-39
40
Roll Pin, Primary DP/ reaction Pawl
XLT-.5-40
XLT-01-40
XLT-03-40
XLT-05-40
XLT-08-40
XLT-10-40
XLT-20-40
XLT-25-40
41
Roll Pin, Secondary Drive Pawl
XLT-.5-41
XLT-01-41
XLT-03-41
XLT-05-41
XLT-08-41
XLT-10-41
XLT-20-41
XLT-25-41
42
Roll Pin, Reaction Pawl
XLT-.5-42
XLT-01-42
XLT-03-42
XLT-05-42
XLT-08-42
XLT-10-42
XLT-20-42
XLT-25-42
43
Reaction Arm Boot with Screws
XLT-.5-43
XLT-01-43
XLT-03-43
XLT-05-43
XLT-08-43
XLT-10-43
XLT-20-43
XLT-25-43
44
Boot Screw
XLT-.5-44
XLT-01-44
XLT-03-44
XLT-05-44
XLT-08-44
XLT-10-44
XLT-20-44
XLT-25-44
45
Screw, End Cap Jacking
XLT-.5-45
XLT-01-45
XLT-03-45
XLT-05-45
XLT-08-45
XLT-10-45
XLT-20-45
XLT-25-45
58
Screw, Shroud Spring
XLT-.5-58
XLT-01-58
XLT-03-58
XLT-05-58
XLT-08-58
XLT-10-58
XLT-20-58
XLT-25-58
59
Shroud Sping
XLT-.5-59
XLT-01-59
XLT-01-59
XLT-01-59
XLT-08-59
XLT-10-59
XLT-20-59
XLT-25-59
61**
Piston Rod Assembly
XLT-.5-61
XLT-01-61
XLT-03-61
XLT-05-61
XLT-08-61
XLT-10-61
XLT-20-61
XLT-25-61
62**
Seal Kit Universal
XLT-.5-62
XLT-01-62
XLT-03-62
XLT-05-62
XLT-08-62
XLT-10-62
XLT-20-62
XLT-25-62
#,++63
Drive Pawl Assembly Kit
XLT-.5-63
XLT-01-63
XLT-03-63
XLT-05-63
XLT-08-63
XLT-10-63
XLT-20-63
XLT-25-63
#64
Roll Pin Kit (All roll pins)
XLT-.5-64
XLT-01-64
XLT-03-64
XLT-05-64
XLT-08-64
XLT-10-64
XLT-20-64
XLT-25-64

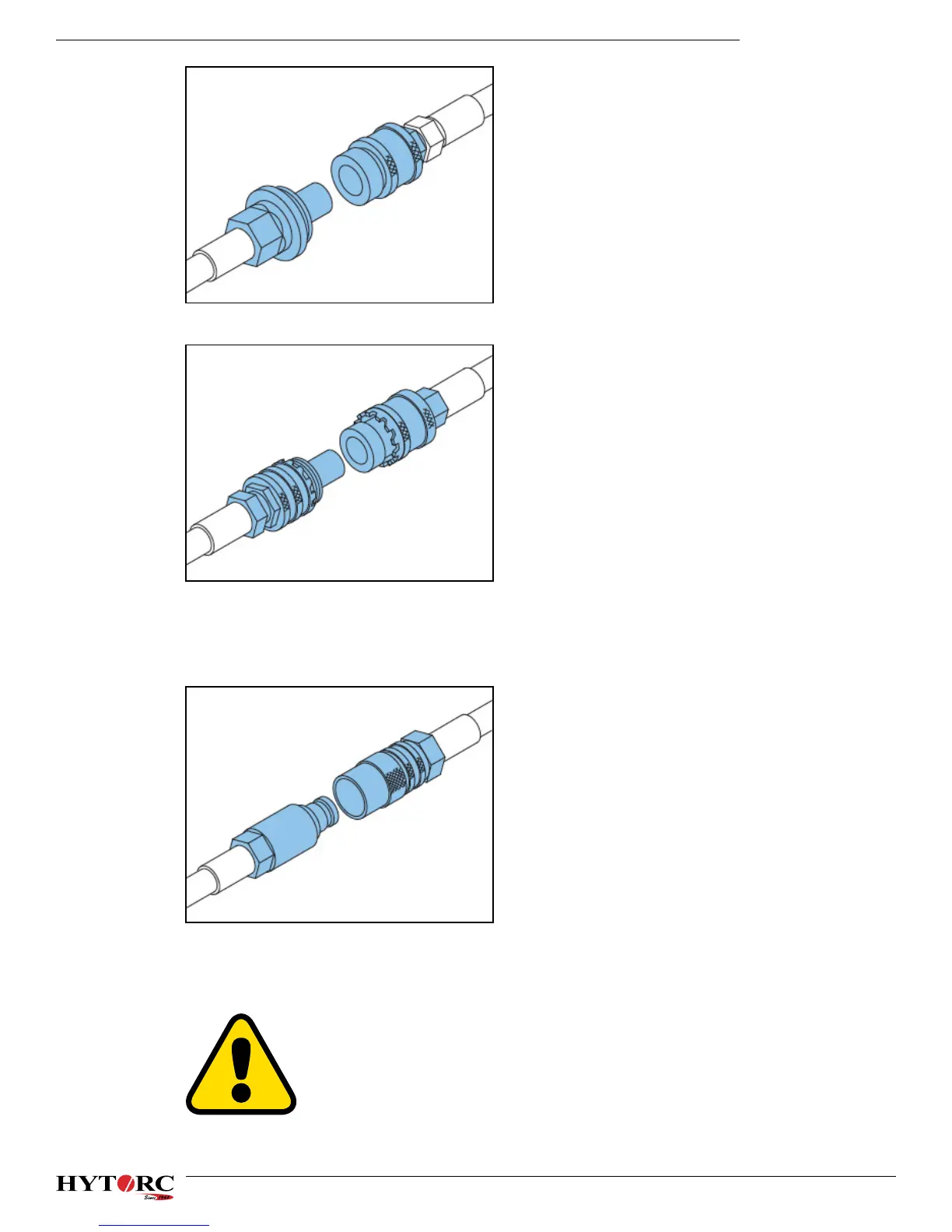

#00
Uniswivel Assembly
XLT-001
XLT-001
XLT-003
XLT-003
XLT-001
XLT-001
XLT-003
XLT-003
#00
Uniswivel Seal Kit
XLT-01-00
XLT-01-00
XLT -001-00
XLT -001-00
XLT-01-00
XLT-01-00
XLT -001-00
XLT -001-00
* E Serie Housing Includes 01-E, 07-1, 26-E and 31-1
** Piston Rod Assembly Includes 24, 25, and 29
++ Drive Pawl Assembly Kit includes 17 and 19
# Available only as an assembly
