6.2 Hose connection
A twin hose connects the torque wrench and the hydraulic pump unit. Each hose has couplers
at each end. One hose has female couplers at both ends and the other hose has male
couplers at both ends. To avoid tool malfunction, do not reverse connectors!
We have three different types of couplers; rotating couplers, rotating couplers with locking
devices and quick couplers. The different types cannot be connected between each other.
IMPORTANT

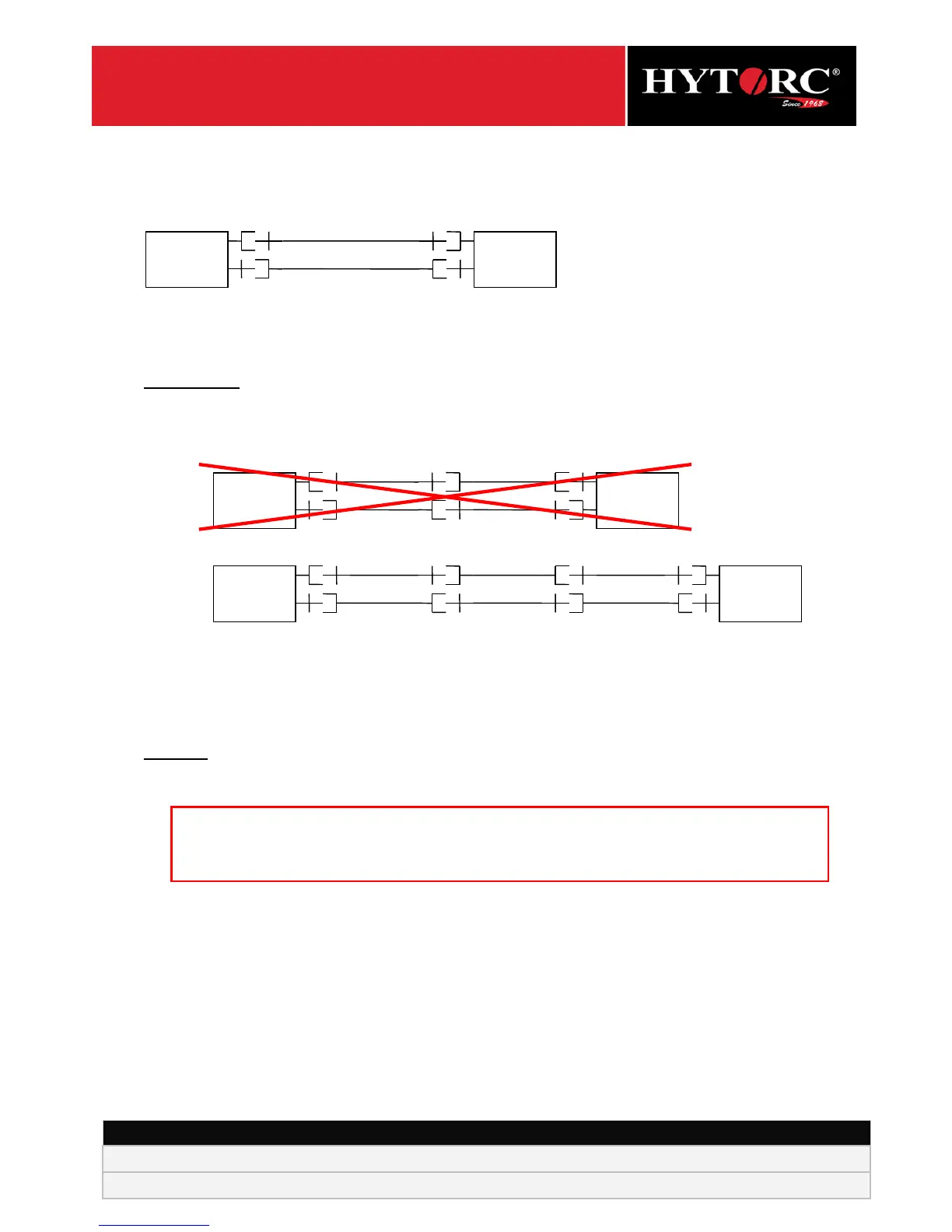

You cannot connect 2 or 4 hoses to each other. If necessary, you can connect 3 or 5 hoses.
Use always an odd number of hoses.
Push the hose parts and couplers to each other.
Screw the couplers hand tight. Do not use locking pliers.
If you want to detach, disconnect the return hose first. If impossible, press briefly once on
the remote control push button.
Attention! During operation the couplers can become loose unnoticed, what makes oil flow
impossible. The tool operates no longer.
ASSURE YOURSELF THAT ALL COUPLERS ON THE PUMP
AS WELL AS ON THE TOOL ARE TIGHTENED PROPERLY!
THIS IS THE MOST COMMON OPERATION FAILURE!
6.3 After use
Reel the hoses.
Protect the couplers against dirt and damage by connecting the end parts of the hose to
each other.
