HYTROL 190-E24EZ - Page 9

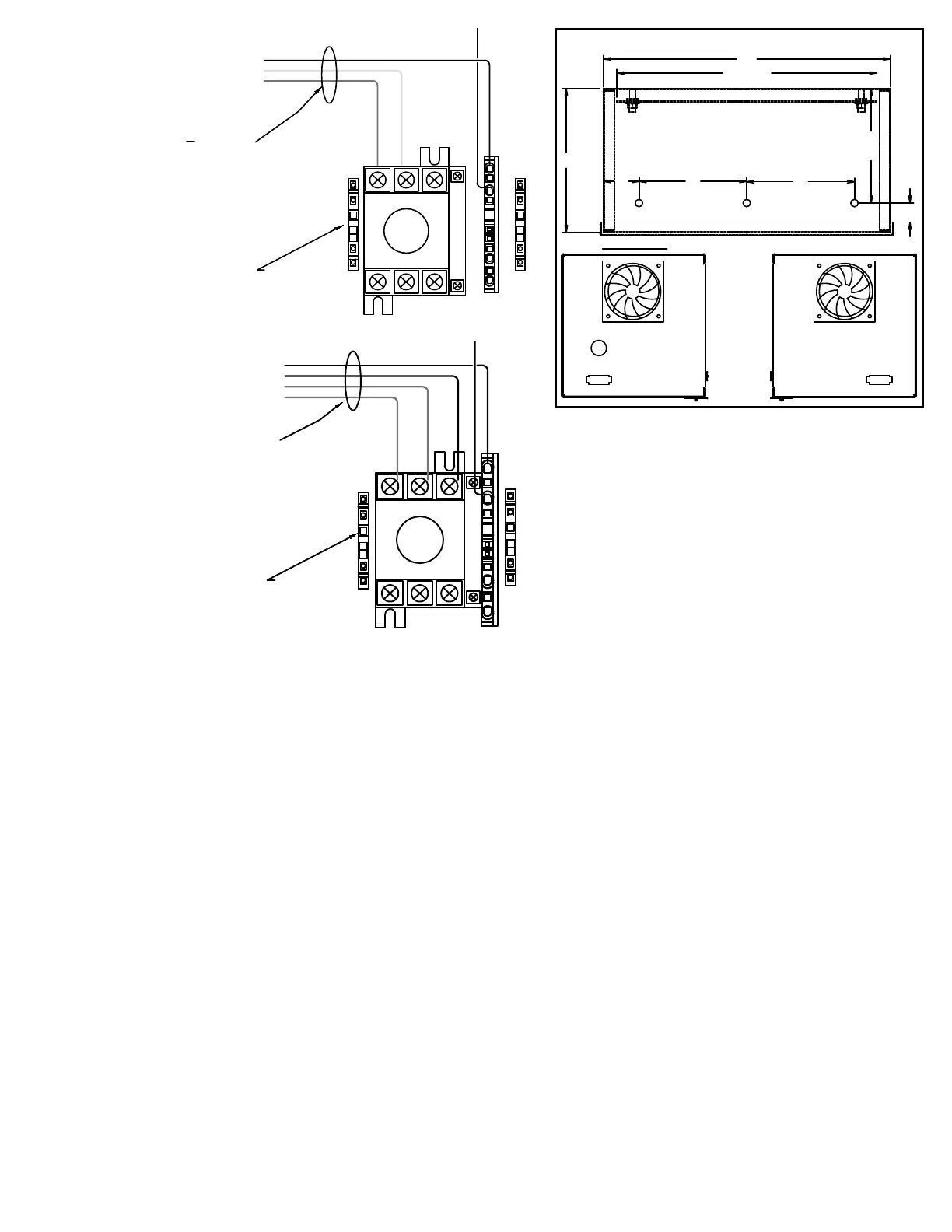

Left Side View
16"
8"
6.37"
6"
6"
1"
14.5" Sub
2"
Right Side View
Top of Enclosure
FIGURE 10A
CUSTOMER CONNECTION
INCOMING POWER
1PH, 100-240V (
+10%)
2.6 / 1.4 AMPS (3 AMPS INRUSH PEAK)
GND
NEU
L1
Terminals Seperated to
Clarify Wiring Details
NOTE:
SINGLE PHASE
FIGURE 10B
Terminals Seperated to
Clarify Wiring Details
NOTE:
CUSTOMER CONNECTION
INCOMING POWER
3PH, 380-480V (-15%, +20%)
0.9 AMPS (4 AMPS INRUSH PEAK)
GND
L1
L3
L2
THREE PHASE
FIGURE 10C
9
