GROUP 3 DISASSEMBLY AND ASSEMBLY
1. MAIN PUMP

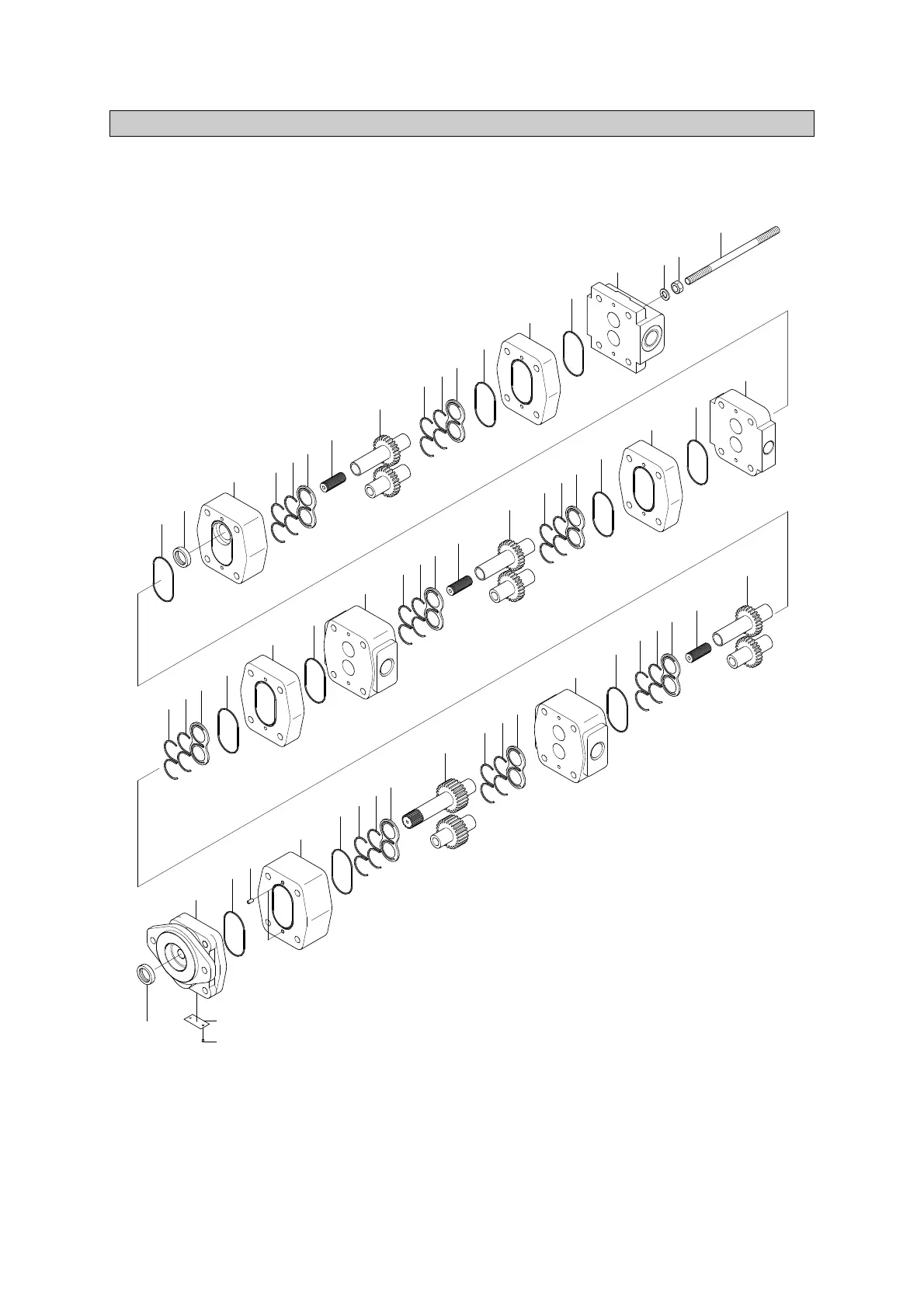

STRUCTURE
1)
1
20
11
19
2
3
23
19
17
16
27
28
8
9
10
14
22
15
22
21
25
26
24
12
5
19
4
13
19
6
7
22
19
15
19
19
15
18
17
16
18
17
16
18
17
16
18
17
16
18
17
16
18
17
16
18
17
16
18
60L7AHS06
1Cover
2 Gear housing
3 Bearing carrier
4 Gear housing
5Cover
6 Shaft gear set
7 Drive gear set
8 Connecting shaft
9 Thrust plate
10 Lip seal
11 Rubber seal
12 Back up seal
13 Square seal
14 Dowel pin
15 Stud bolt
16 Washer
17 Hex nut
18 Name plate
19 Screw
