Warning and indicator lights

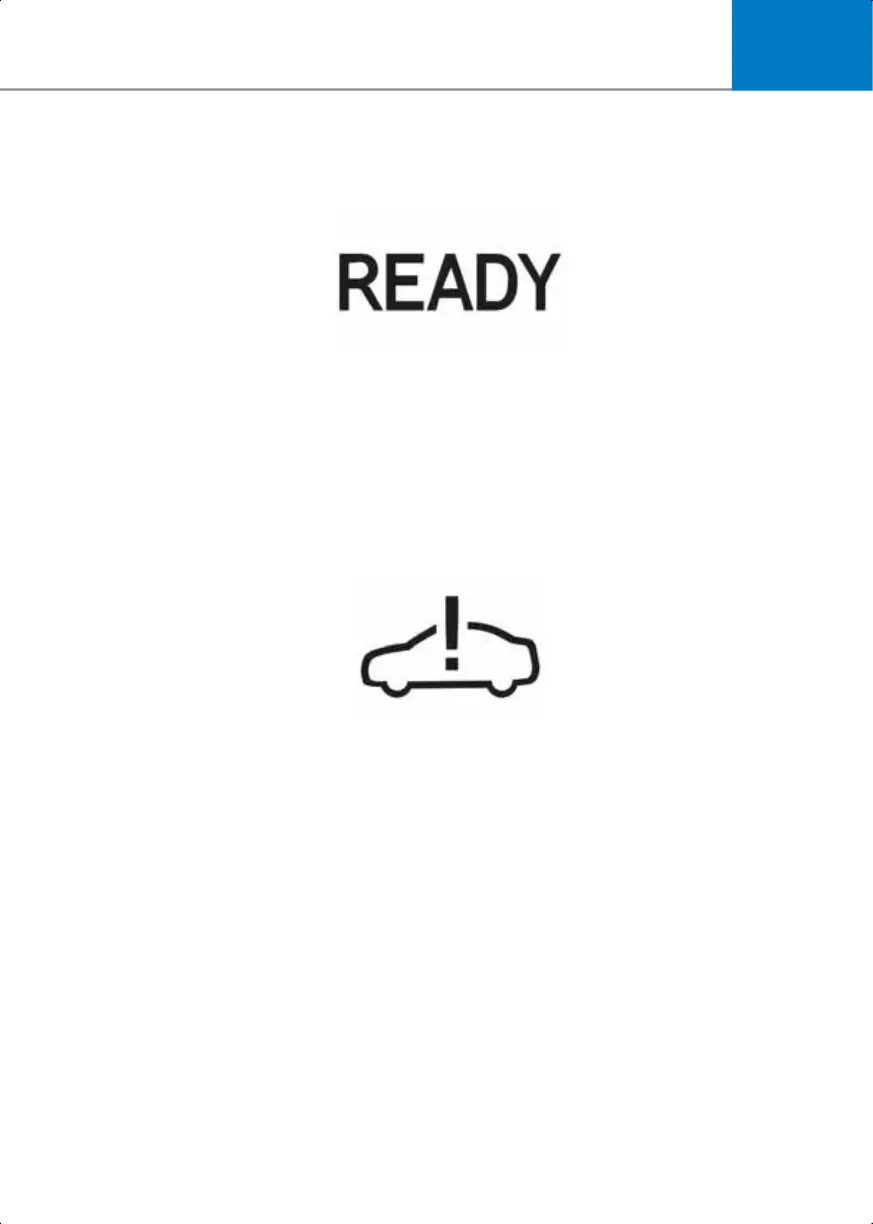

Ready indicator
WL_ReadyLamp
This indicator illuminates:
When the vehicle is ready to be driven.
• ON: Normal driving is possible.
• OFF: Normal driving is not possible, or a problem has occurred.
When the READY indicator goes off or blinks, there is a problem with the system. If this
occurs, we recommend that your vehicle be inspected by an authorized HYUNDAI dealer.
Service warning light
WL_ServiceWarningLamp
This warning light illuminates:
• When you set the Engine Start/Stop button to the ON position.
- The service warning light illuminates for about 3 seconds and then turns off when all
checks have been performed.
• When there is a problem with the hybrid vehicle control system or hardware.
When the warning light illuminates while driving, or does not go OFF after starting the
vehicle, we recommend that your vehicle be inspected by an authorized HYUNDAI
dealer.
