I3PROJECTOR 2402W
309 mm
654 mm
Height below ceiling

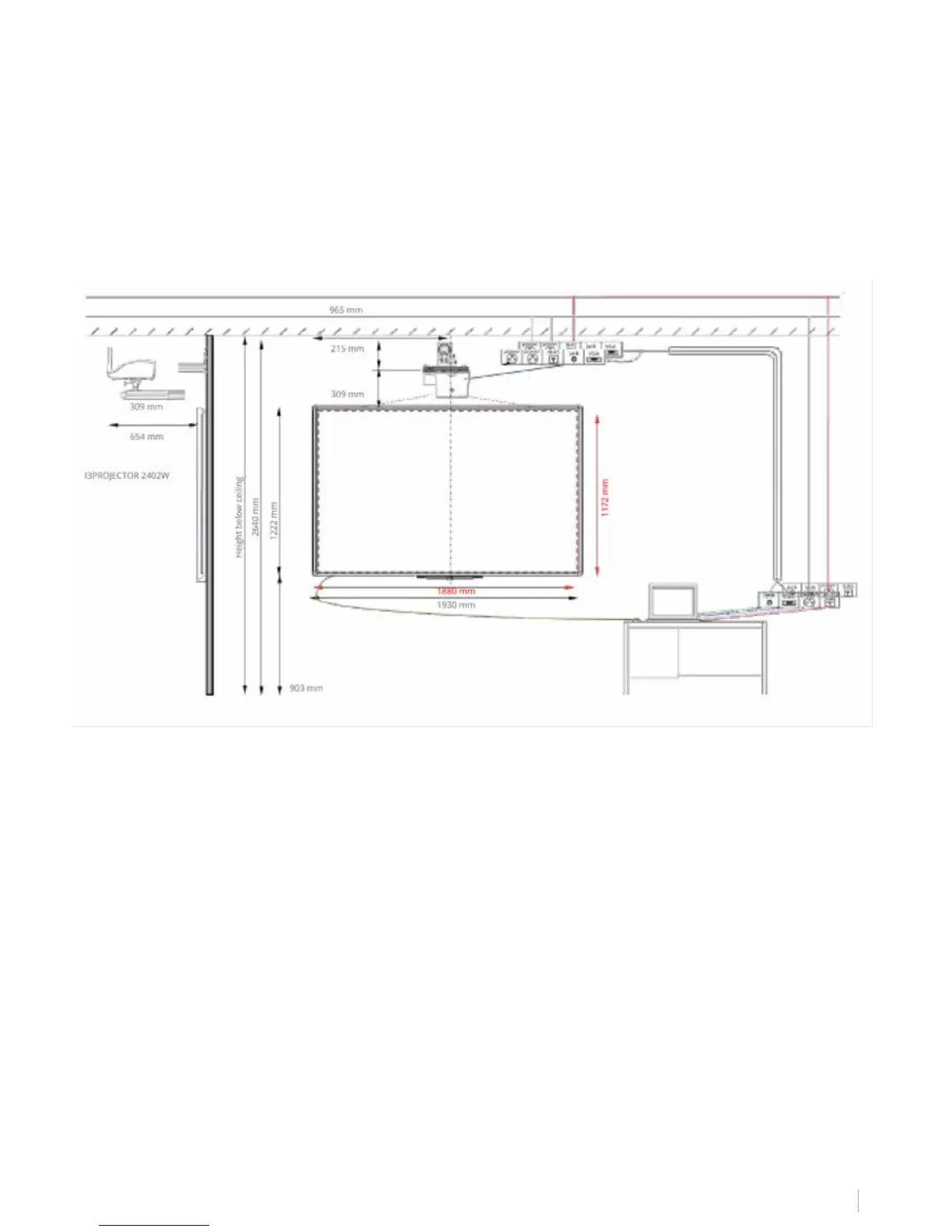

4. Installation drawings
The below drawing indicates the best installation
of a i3BOARD 87inch & i3PROJECTOR 2402W.
For the i3BOARD 77inch the projector distance (309mm & 654mm) is the same.
The board has the same height but another width (4:3).
On the drawing the use of VGA is similar to HDMI. The use of RJ45 is optional.
When using VGA you should also use a jack to use the speakers of the projector.
The i3BOARD is not delivered with the VGA/HDMI cables for the projector or
USB extender cables.
2640 mm
1222 mm
903 mm
215 mm
309 mm
965 mm
1880 mm
1172 mm
1930 mm
