IAME Parilla Leopard RL - Page 10

MAN048ING8

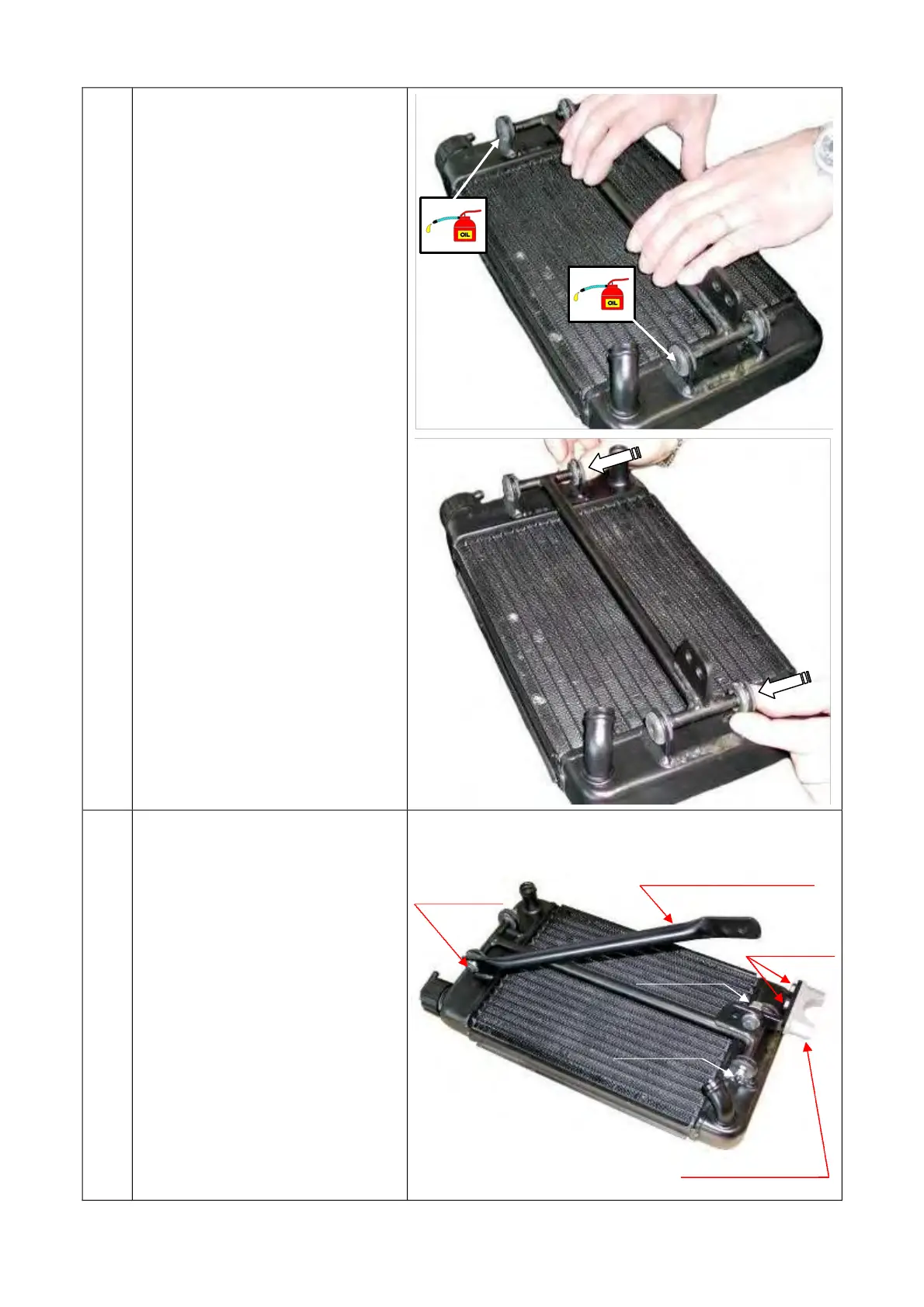

COMPLETEINSERTIONOFTHERADIATOR
SUPPORTBRACKETINTHERUBBER
DAMPENERS(SEEFIG.7AND8).
7
FIX THE RADIATOR SUPPORT BRACKET
INSERTING ALSO THE RADIATOR FIXING
BRACKET  (RADIATOR CAP SIDE – N°1
SCREW M6x90 AND N°1 SCREW M6x85
WITHNUT).
INSTALL THE “L” SHAPE BRACKET ON THE
LOWER RADIATOR CLAMP (AVAILABLE IN
DIFFERENT DIAMETERS Æ28/30/32mm  2
SCREWS M6x12) AND FIX IT TO THE
TONGUE ON THE RADIATOR SUPPORT
BRACKET (N°1 SCREW M8x20 WITH NUT 
SEEFIG.9).
Fig.9
RADIATORFIXINGBRACKET
LOWERFIXINGCLAMP
SCREWM6X90
SCREWM6X85
SCREWM6X12
SCREWM8X20
Fig.8
Fig.7
