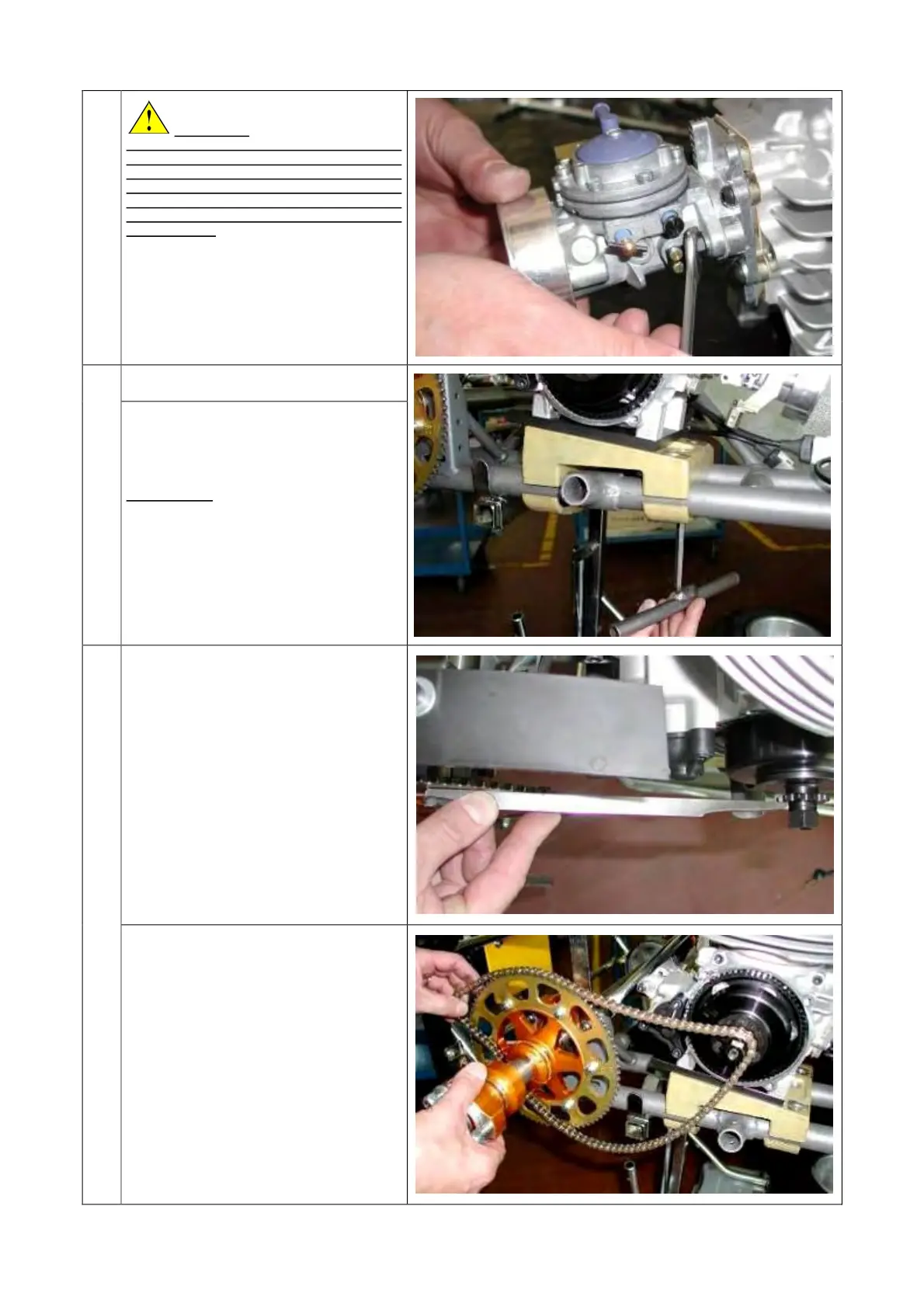

IAME Parilla Leopard RL - Install Engine on Chassis

MAN048ING13
ATTENTION:
WHEN REPLACING THE CARB. GASKET
ALWAYSMAKE SURE THATTHE GASKETIS
INSTALLED SO THAT THE HOLE IN THE
GASKET MATCHES WITH THE TWO
PRESSURE HOLES IN THE CARB. AND IN
THECRANKCASE: OTHER WISE THE ENGINE
WON’TSTART.
INSTALLTHECARBURETOR.
N.2NUTSM6ANDTWOWASHERS.
TORQUEAT6÷10Nm(50÷90inlb)
3.6 INSTALL THE ENGINE ON THE
CHASSIS
3.6.1 POSITION THE ENGINE ON THE 2
OUTSIDE MAIN RAILS AND FIX THE MOTOR
MOUNT WITH THE TWO CLAMPS (SEE
FIG.10)
SUGGESTION:
NEVERTORQUECOMPLETELYTHECLAMPS
UNTIL THE CHAIN IS INSTALLED AND
PROPERLYALIGNE D.
3.6.2 CHECK THE ALIGNMENT OF THE
ENGINE SPROCKET AND THE AXLE
SPROCKET WITH A STRAIGHT EDGE  (SEE
FIG.11).
3.6.3INSTALLTHECHAIN(PITCH:7.775)(SEE
FIG.12).
Fig.9
Fig.10
Fig.1
1
Fig.12
