IAME Parilla Leopard RL - Motor-Mount Preparation and Installation

MAN048ING10
3.3

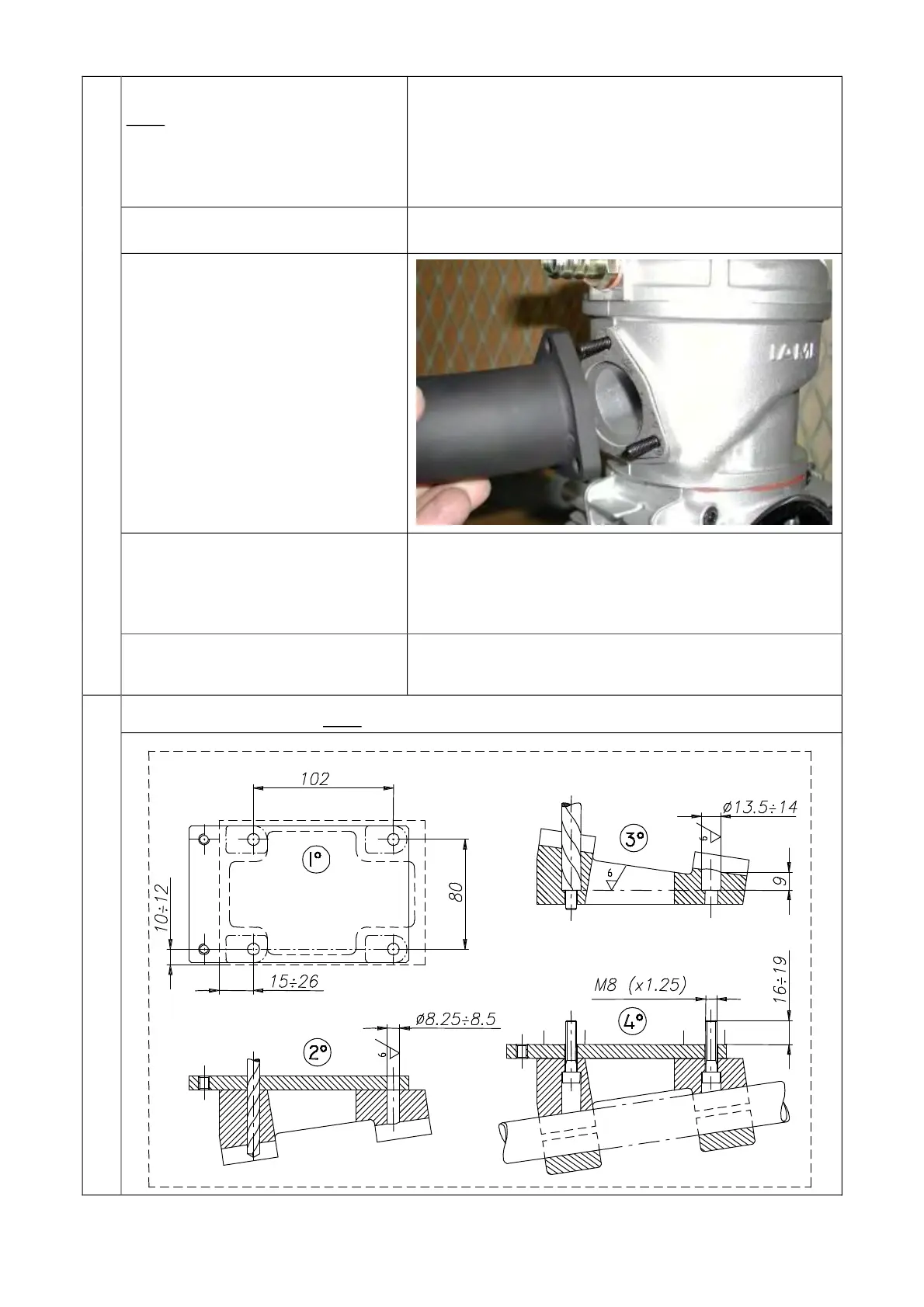

EXHAUSTHEADERASSEMBLY
NOTE:
THE ENGINE IS SUPPLIED WITH THE
EXHAUST GASKET AND NUTS ALREADY
INSERTED. WHEN THE SHIPMENT IS MADE
AN EXHAUST COVER GASKET ISPROVIDED
TOPROTECTTHEINTERNALPARTS.
3.3.1REMOVETHENUTSANDTHEEXHAUST
COVER.
3.3.2MAKE SURETHEEXHAUSTGASKET IS
IN SEAT AND INSTALL THE EXHAUST
HEADER(SEEFIG1).
3.3.3INSTALLTHETHREE WASHERS
3.3.4INSTALLTHETHREENUTS.
TORQUEAT9÷11Nm(80÷100i nlb)
12POINTWRENCH10mm(OROPENWRENCH10mm)
PREPARATIONANDINSTALLATIONOFTHEMOTORMOUNT
NOTE: ALLTHEDIMENSIONSAREINMILLIMETERS
3.4
3.4.1DRILL4HOLES(DIAM.8.5mm)INTHEMOTORMOUNT
Fig.1
MOTORMOUNTHORIZONTALVIEW
