3.8.7 FIX THE HARNESS GROUND CABLE
WITH THE EYELET TERMINAL (Ø 6.5mm),
ON THE ENGINE CRANKCASE, BY MEANS
OF THE PROPER THREADED HOLE (SEE
FIG.24).
M6x12SCREW
TORQUEAT8÷10Nm(70÷90inlb)
ATTENTION:
THIS OPERATION IS EXTREMELY
IMPORTANT AS AN UNCERTAIN
GROUNDING CO ULD DAM AGE THE
POWERPACKBEYONDREPAIR.
5mmALLEN
3.8.8 FIX THE EYELET TERMINAL (Ø 7mm),
OF THE SECOND GROUND CABLE IN THE
HARNESS(CLOSETOTHECOILCABLE)TO
THE H.T. COIL BY MEANS OF THE M6 NUT
FIXINGTHECOIL(SEEFIG.25).
TORQUEAT8÷10Nm(70÷90inlb)
ATTENTION:
THIS OPERATION IS EXTREMELY
IMPORTANT AS AN UNCERTAIN
GROUNDINGCOULDDAMAGETHEPOWER
PACKBEYONDREPAIR.
10mmBOXWRENCH
3.8.9 CONNECT THE H.T. COIL CABLE TO
THEHARNESSTERMINAL(SEEFIG.26).
ATTENTION:
FASTENTHECOILCABLEWITHAPLASTIC
CLAMP TO AVOID THAT EVENTUAL
VIBRATIONS MIGHT DISCONNECT THE
TERMINALS( SEEFIG.27).

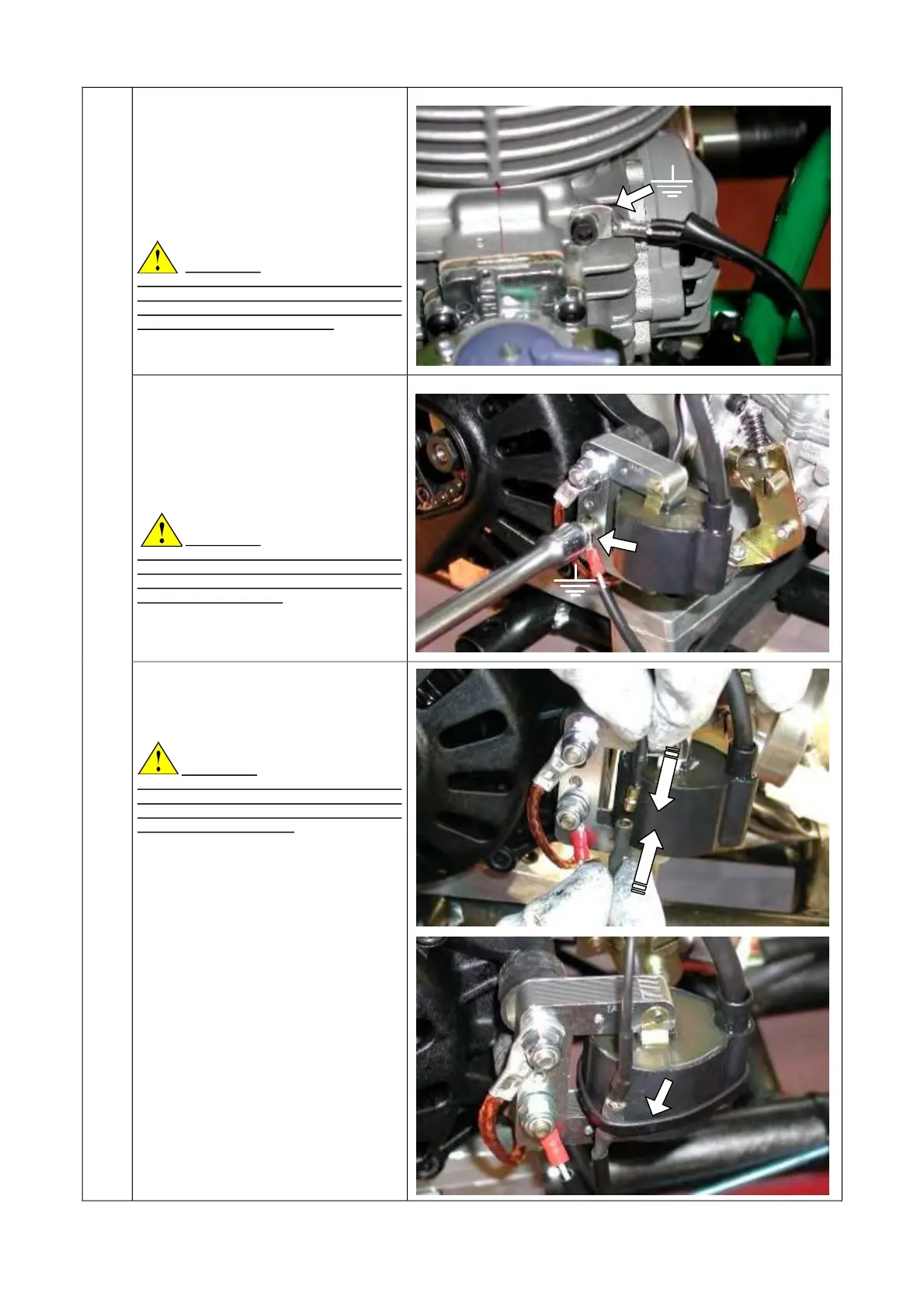

Fig.24
Fig.25
Fig.27
Fig.26
