Name
Name of the module
Module no.
Logical number of the module
Timebase
Acquisition timebase used for this module
Use name as prefix
If TRUE is selected, the module name is placed in front of the signal name as
prefix.
The diagnose data is pre-defined in the Analog and Digital tab. The diagnostic data can
be visualized and saved like measured values.

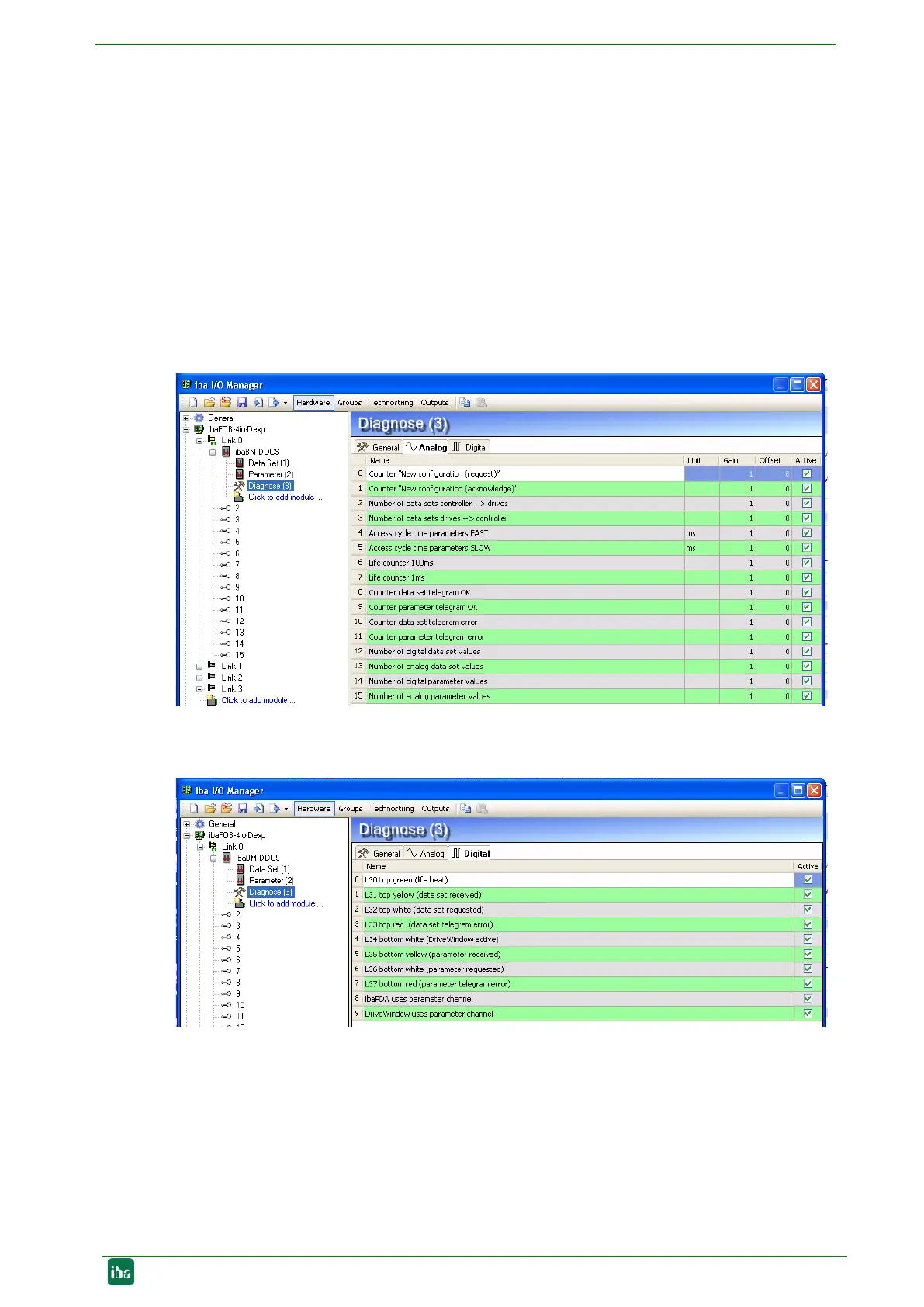

Figure 24 : Diagnose – Analog tab
Figure 25 : Diagnose – Digital tab
