4.2.3. Electrical Configuration of KermaX-plus
®
with SDP

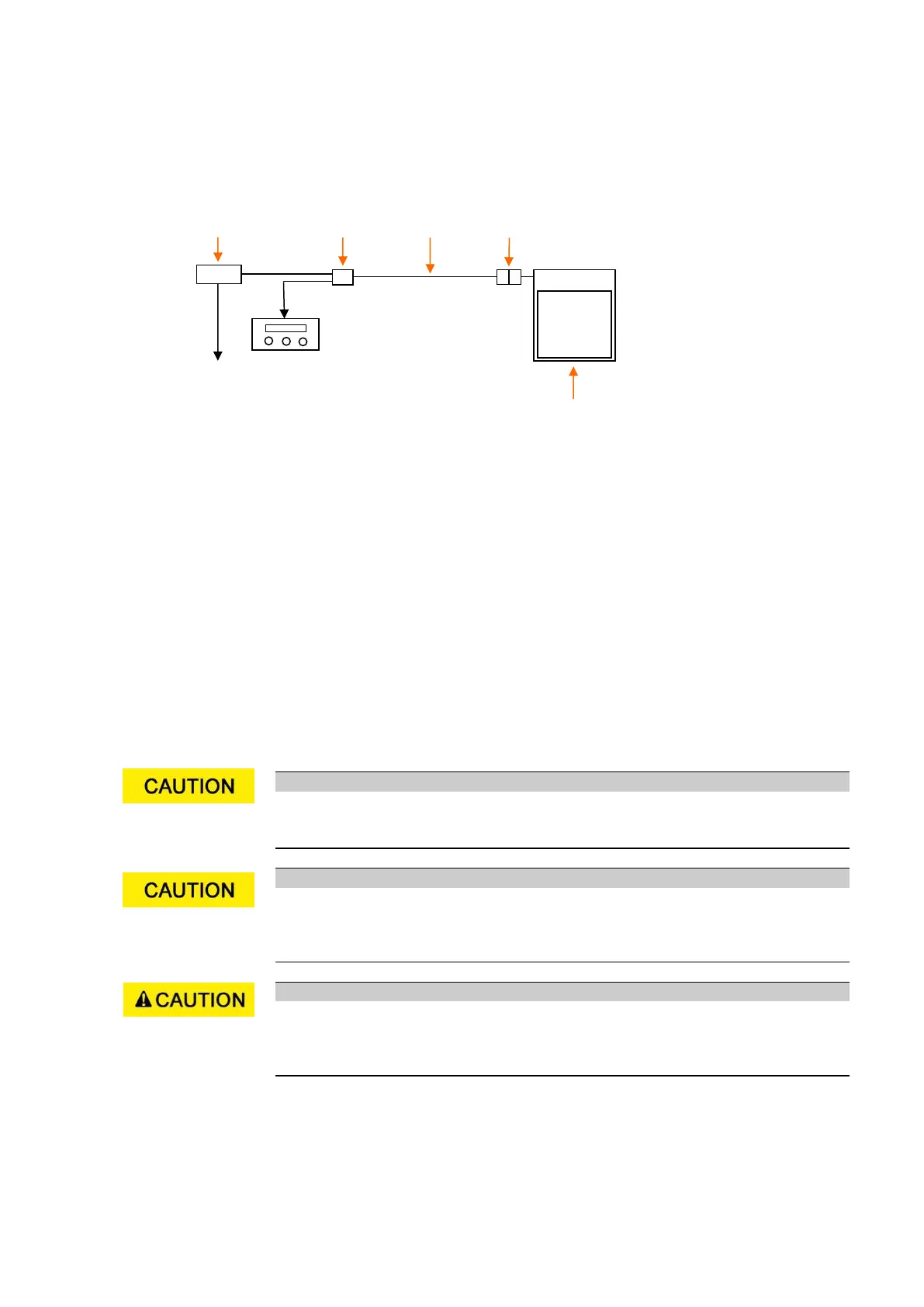

Diagram and photo of the connection of the KermaX®-plus
The setup procedure:
1. Connect chamber cable to the AKP cable connections with the help of the modular connector plug
and the Y-connector.
2. Connect the power pack to the Y-connector of the AKP cable.
3. Connect the SDP to the Y-connector of the AKP cable.
4. Connect the power supply to the mains. Make sure that the power supply is appropriate for medical
Equipment and accordingly UL resp. IEC 60601 certified (see Chap. 2.5.1).
CAUTION
Power Supply
Use the UL 60601 & IEC 60601-1-2:2014 approved power supply ONLY
CAUTION
TURN OFF POWER BEFORE CONNECT/DISCONNECT THE CHAMBER
Do not connect/disconnect the chamber to/from the system when the power is
turned on. It may damage the electronics.
CAUTION
RESPONSIBILITY
The integrator takes the full and entire responsibility of integrating/ installing
KermaX-plus
®
measuring systems.
AKP cable
In-Line connector
KermaX-plus
®
Y-Connector
Power pack
To mains
power supply
SDP
