IBC SL 10-85 G3 Installation And Operating Instructions

2-1
BOILER SYSTEMS AND OPERATION
SL 10-85 G3, SL 14-115 G3, SL 20-160 G3, SL 30-199 G3 MODULATING GAS BOILERS
2.0 IBC BOILER CONTROLLER
2.1 GENERAL

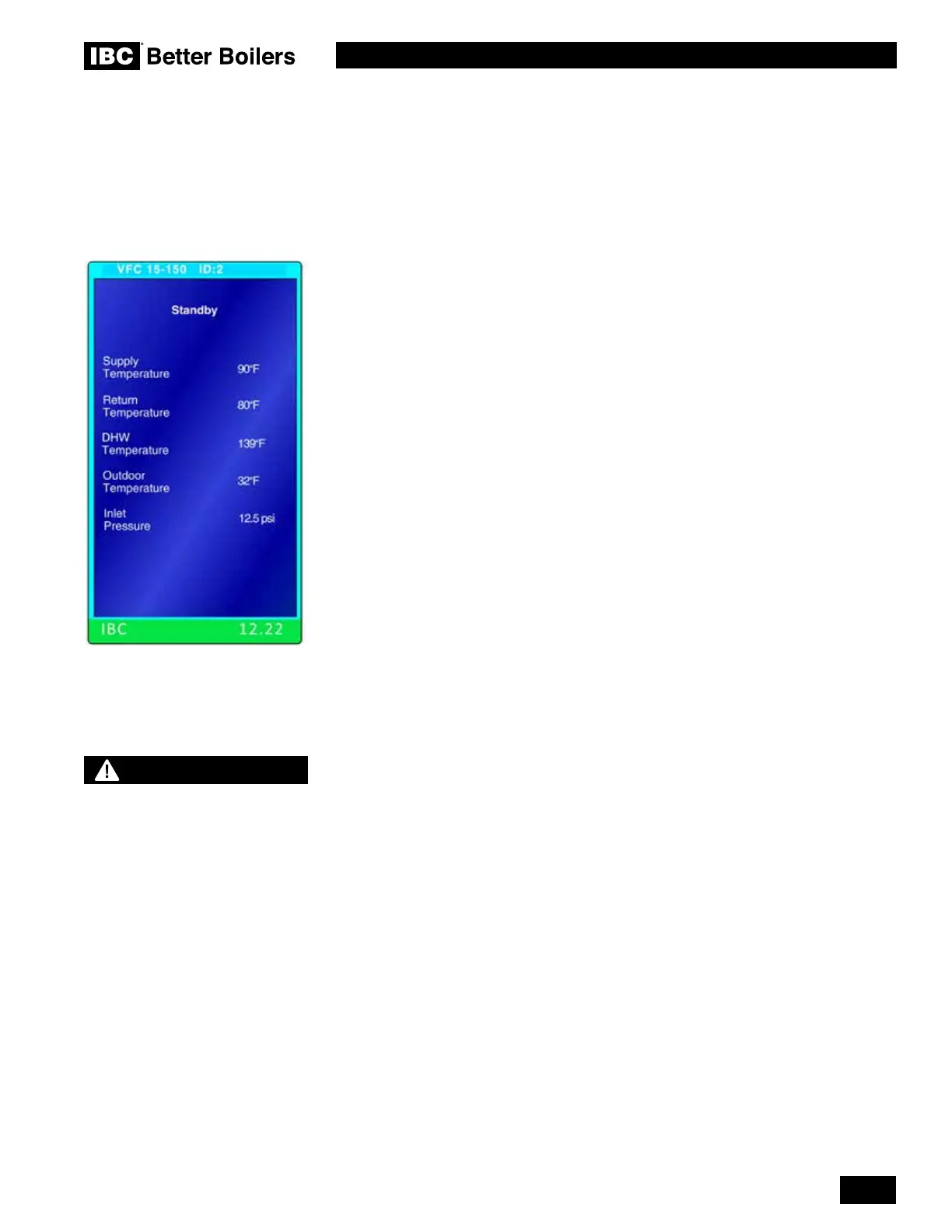

This boiler is equipped with the V-10 touchscreen controller. The controller simplies the
programing of the boiler while providing greater exibility. For more detailed instructions,
reference the Touch Screen Boiler Controller manual.
The controller is equipped to provide:
• Control of up to 5 pumps – 1 boiler pump + 4 separate load pumps
• Outdoor Reset control
• Set Point temperature regulation
• Domestic Hot Water (DHW)
• External control via 0-10VDC or 4-20mA signaling
• Alarm dry contacts
• Load Combining – simultaneous operation of 2 similar water temperature loads
• The control can manage and/or operate in a network of up to 24 IBC VFC or SL boilers
Some of the new features available in the touch screen control include:
• Express Setup Menu for simple, quick programing
• Software updatable in the eld with an SD card or a USB stick
• Setup conguration back-up and cloning using an SD card or USB stick
• Superior warning messages while setting up the control
• Advanced Error messages with visual display on the Home Screen
• Internet/LAN connectivity
• BACnet (with activation)
2.2 CONTROL
When the boiler is rst energized, the controller will go through a power up sequence that
will take approximately 90 seconds. During this time the controller is completing a self-
diagnostic and loading all previous settings. In the event of a power interruption the boiler
will automatically resume operation when power is restored with all the previously stored
values. The controller provides overall management of the boiler operations including;
• Power-up, Self-diagnostics, easy Load parameter adjustments
• Burner operation, safety management systems, Call for Heat management and Load
Priority
• Real time boiler data
• Temperature and throttle operation
• Maintenance of operational and error service logs
• 2-way communication between other IBC boilers and controls
WARNING
No sharp or metallic object
should be used on the touch
screen as this will cause
damage. Use only a Stylus or a
clean nger.”
