IBC SL 10-85 G3

Boiler part diagrams - SL 20-160 G3
Item # Description Part # P-kit Quantity
100 Top Access Cover 250-850 1
105 Exhaust Duct 250-941 P-390 1
110 Intake Duct 250-942 P-391 1
115 Safety Ignition Module+(SIM+) 500-078 P-271B 1
120 Flue Temperature Sensor 240-132 P-361 1
130 Side Terminal Block Cover 250-825 1
135 V-10 Touchscreen Controller 500-063 P-242 1
140 Transformer 240-008 1
150 Front Access Cover - door assembly 500-097 P-332 1
155 Thumb screw 250-275 2
109

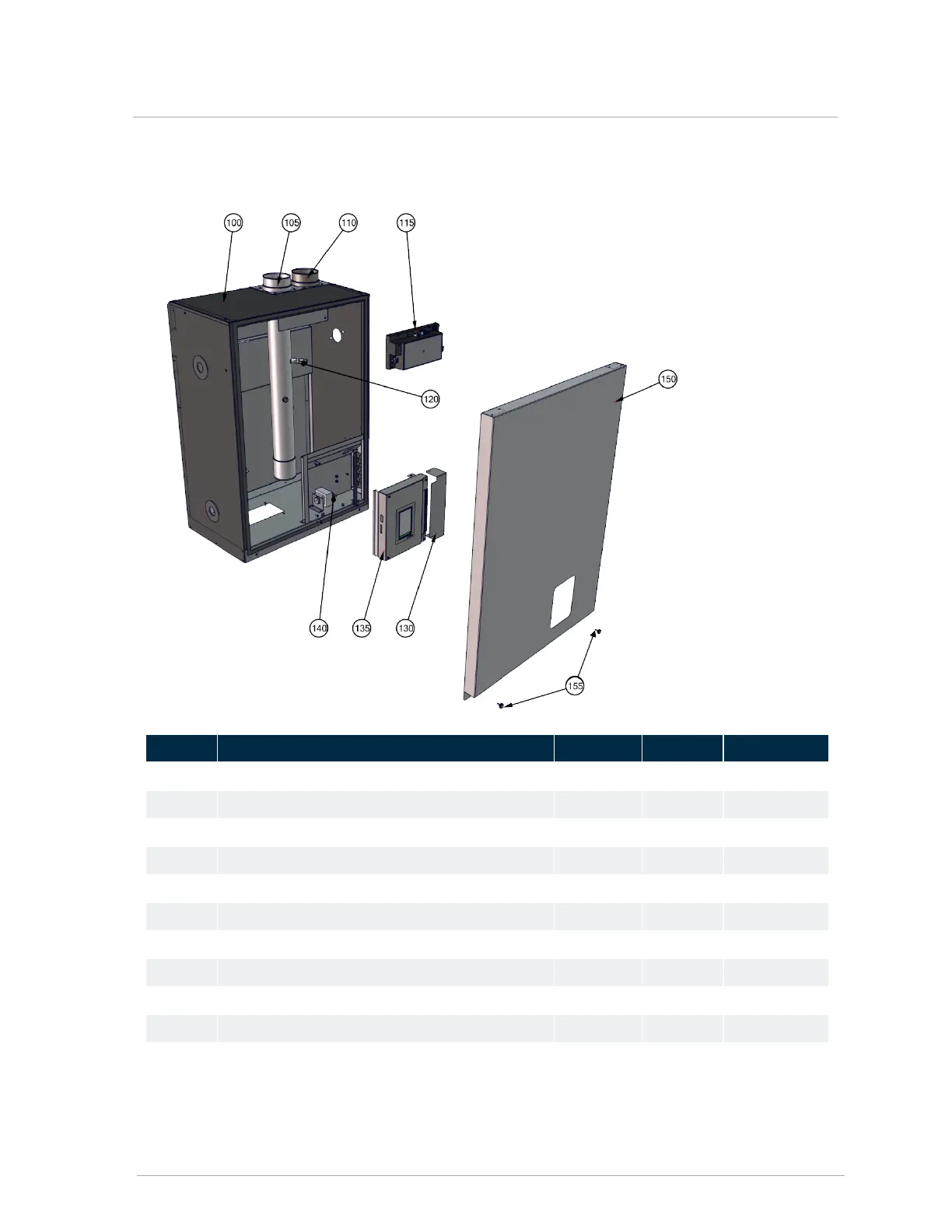

Exploded views of boiler parts
