IBC SL 10-85 G3

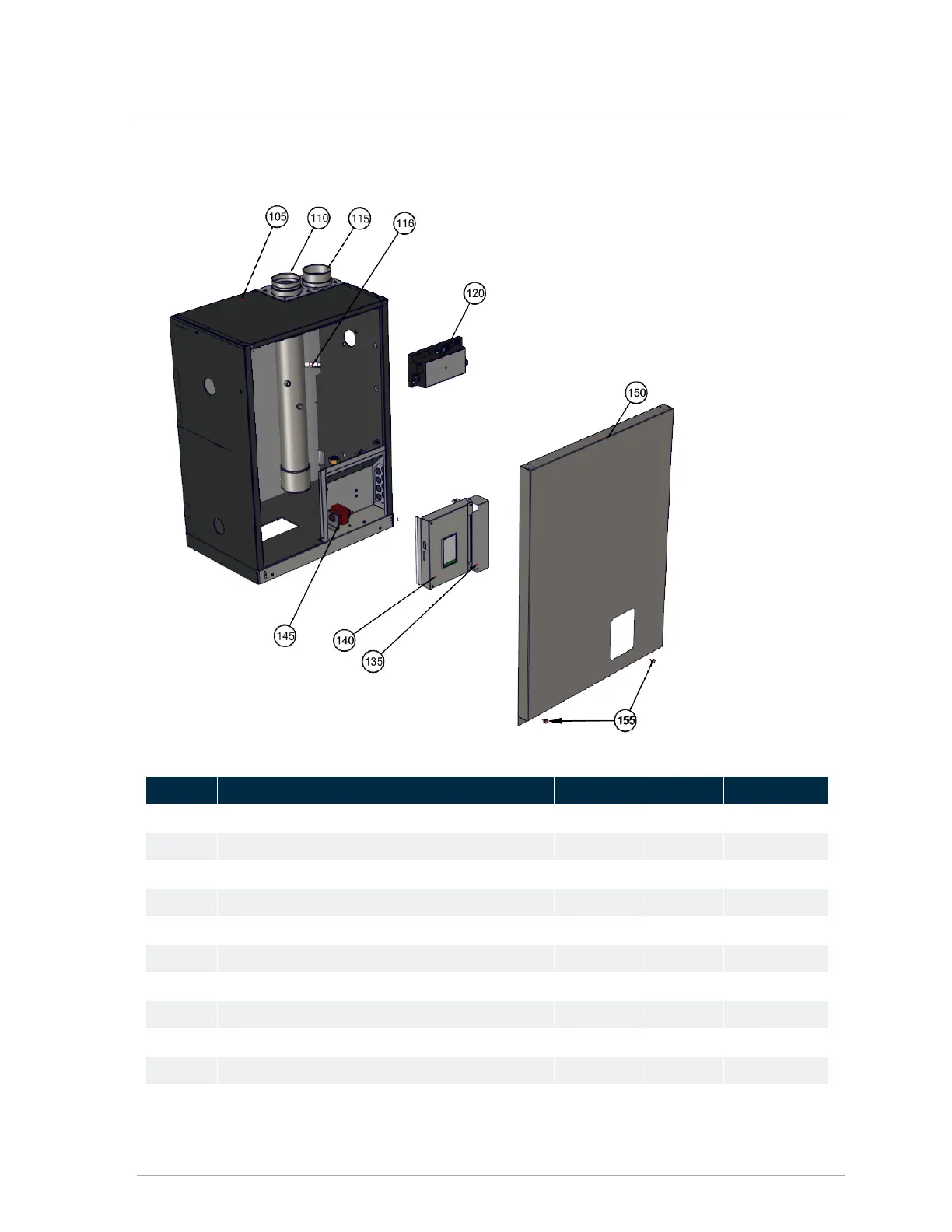

Boiler part diagrams - SL 30-199 G3
Item # Description Part # P-kit Quantity
105 Top Access Cover 250-840 1
110 Exhaust Duct 250-943 1
115 Intake Duct 250-942 P-391 1
116 Flue Temperature Sensor 240-132 P-361 1
120 Safety Ignition Module+(SIM+) 500-078 P-271B 1
135 Terminal Block Cover 250-825 1
140 V-10 Touchscreen Controller 500-063 P-242 1
145 Transformer 240-008 1
150 Front Access Cover - door assembly 500-098 P-333 1
155 Thumb screw 250-275 2
113
Exploded views of boiler parts
