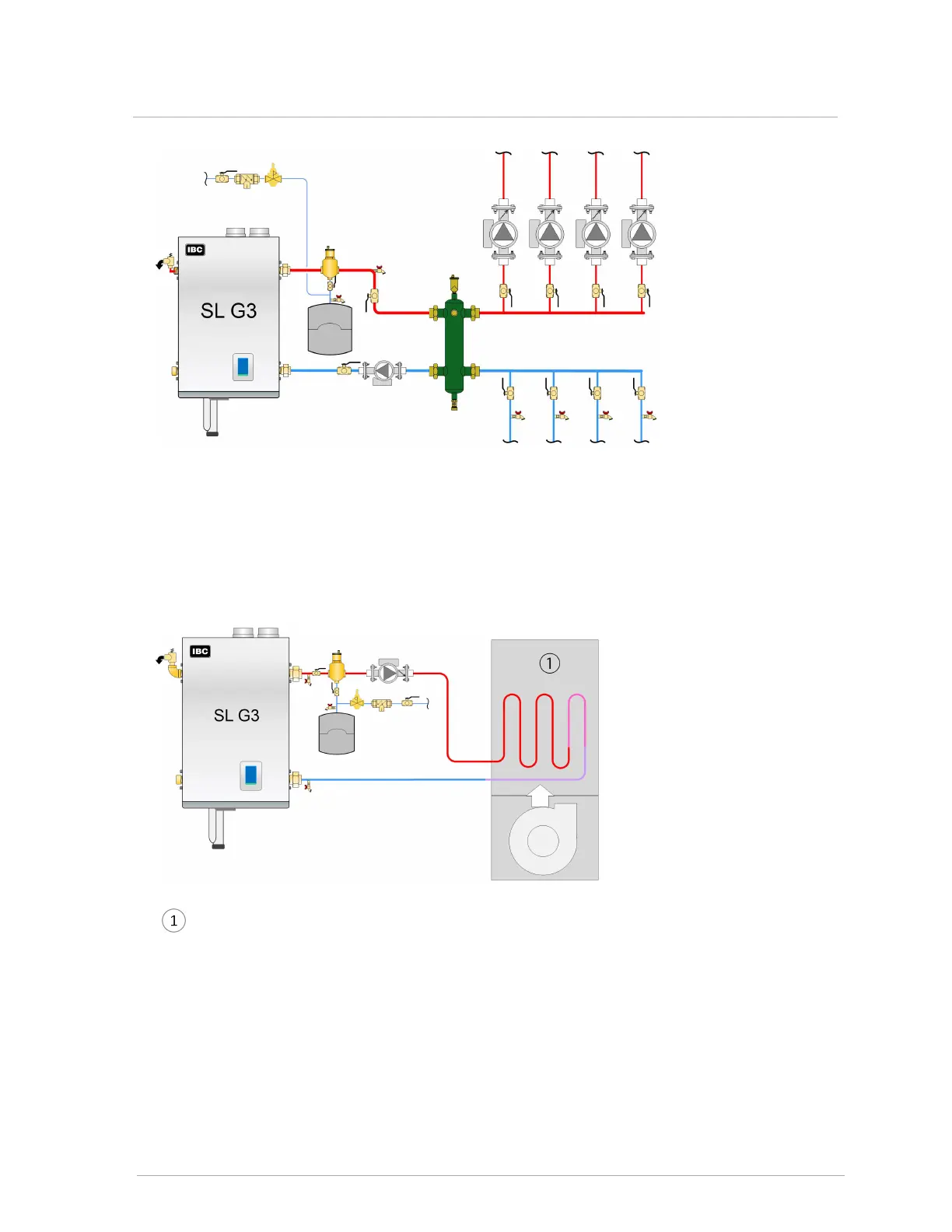

Figure 42 Basic primary-secondary piping with hydraulic separator - piping concept
3.11.2.2 Parallel load piping
Compared with the primary-secondary approach, the design below saves one pump. Lost is the
simplicity of constant head and flow at the boiler.
Air handler
Figure 43 One pump parallel piping concept
53
3.11.2 System piping
