40 IBM Rack Console Switch Installation and User’s Guide
Accessing Options and Buttons on the Commands Window
The functions that are available on the Commands window vary depending on whether restricted
access is configured as described in Chapter 4.
Figure 3.14 shows the Commands window that displays for only the admin user when restricted
access is configured and for all users when access is not restricted.

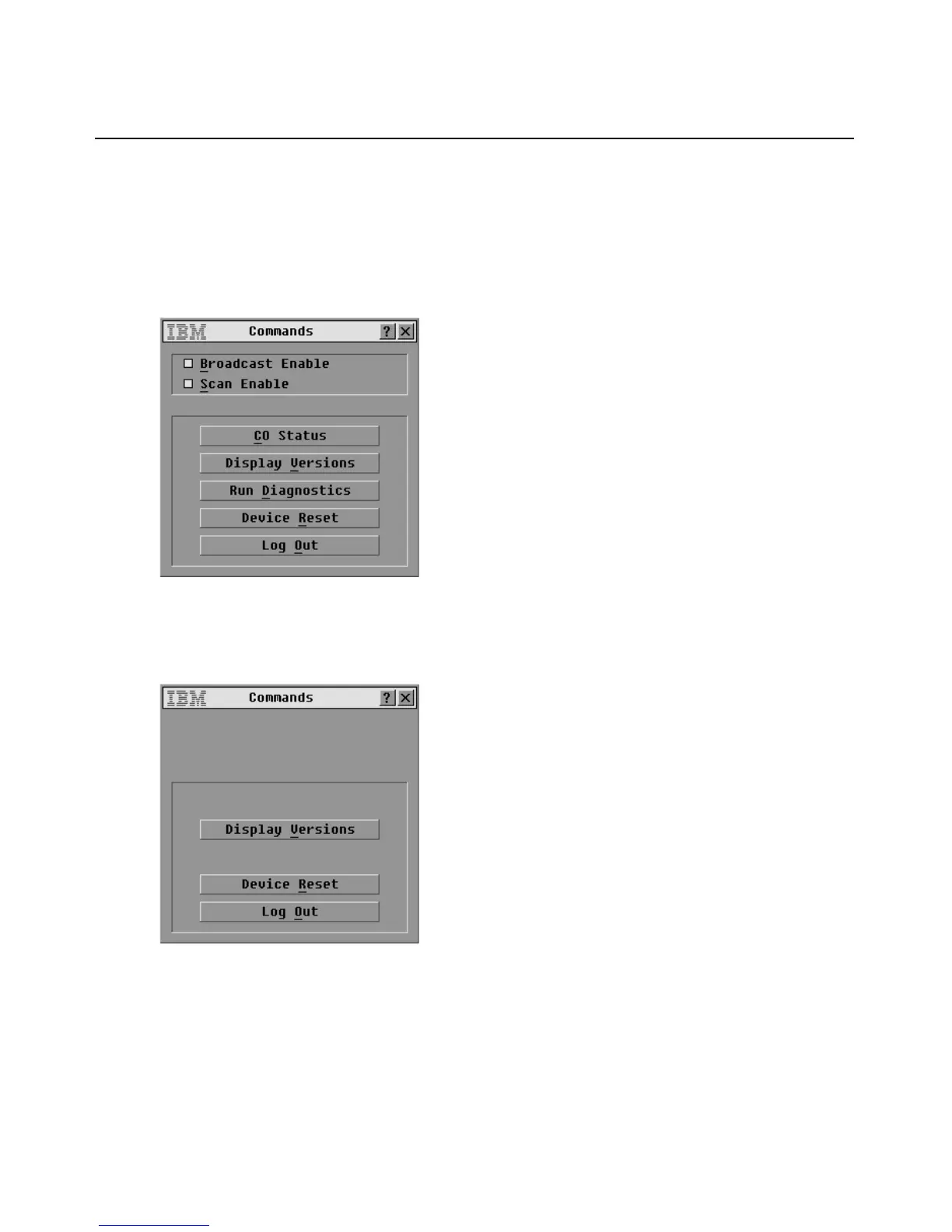

Figure 3.14: Commands window
When access is restricted, regular user only have access to the Display Versions, Device Reset and
Log Out buttons as shown in Figure 3.15.
Figure 3.15: Commands window (user)
Accessing the Commands window
1. Access the OSCAR interface Main window. If needed, see “Accessing the rack console
switch” on page 23.
