Installing the support rails and enclosure into the rack

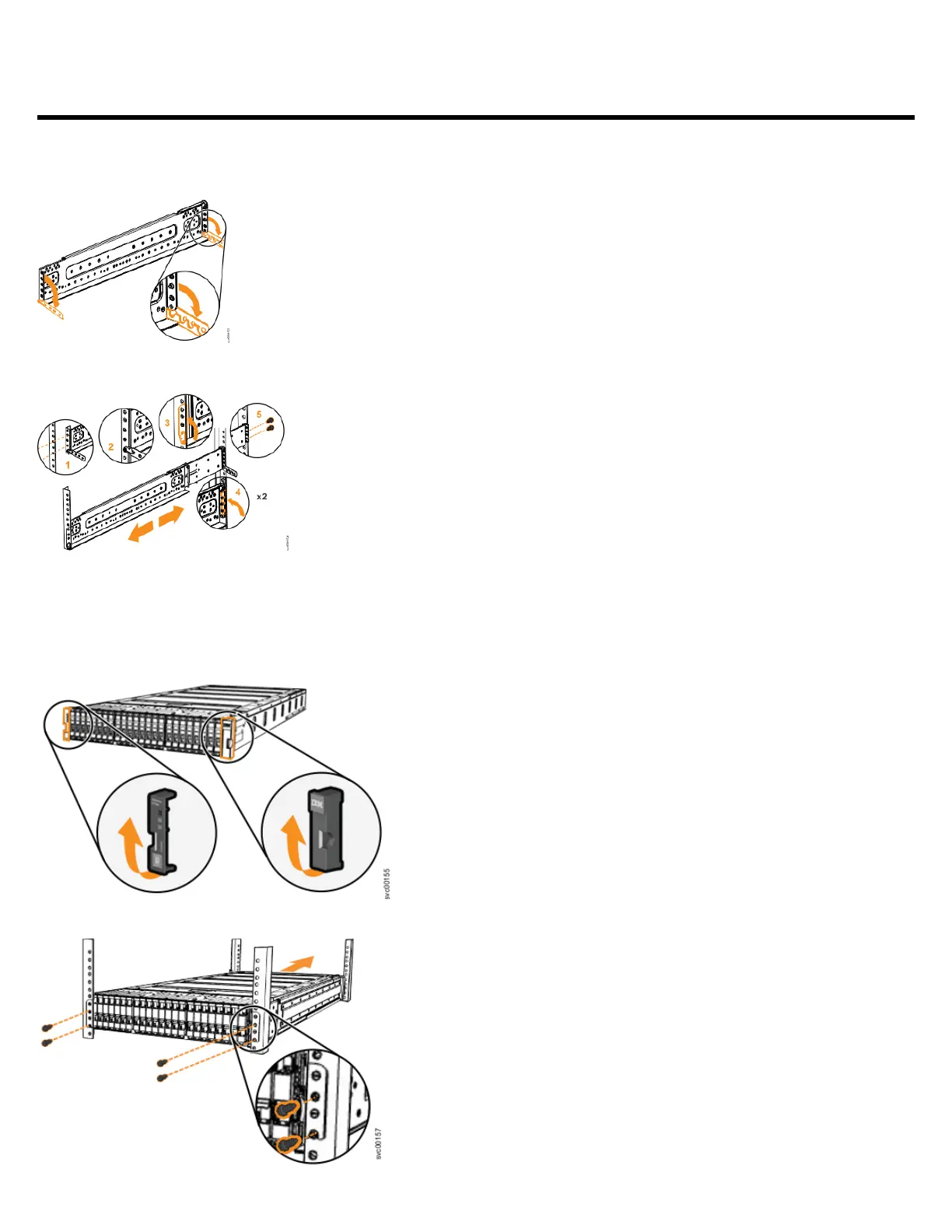

Before you can install the control enclosure into the rack, you must first install the side support rails.
1. At each end of the side rail, grasp the tab and pull firmly to open the hinge bracket.
2. Align the holes in the rail bracket with the holes on the front (1) and rear rack cabinet flanges. Ensure that the rails are aligned on the
inside (2) of the rack cabinet.
3. Close the front hinge bracket (3) to secure the rail to the rack cabinet flange.
4. Extend the length of the side rail, as needed.
5. Close the hinge at the rear of the rail (4).
6. Secure the rear of the rail to the rear rack flange with two black M5 screws (5).
7. Repeat Step 1 on page 3 through Step 6 on page 3 to secure the opposite rail to the rack cabinet.
8. Remove each end cap from the front of the enclosure. Lift the bottom of each end cap
9. At the front of the enclosure, use two rack mounting screws to secure each side of the enclosure to the rack.
