Repair Information 101

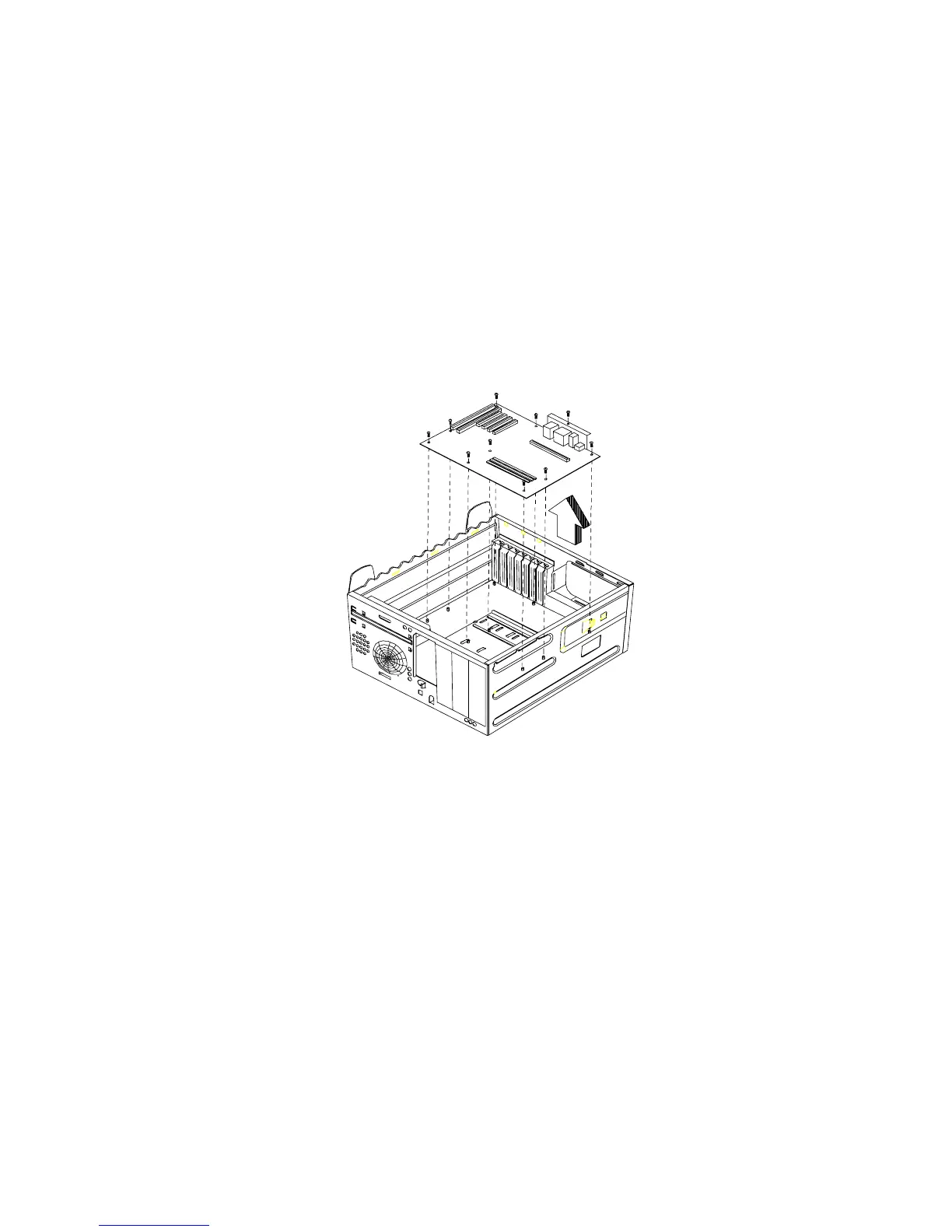

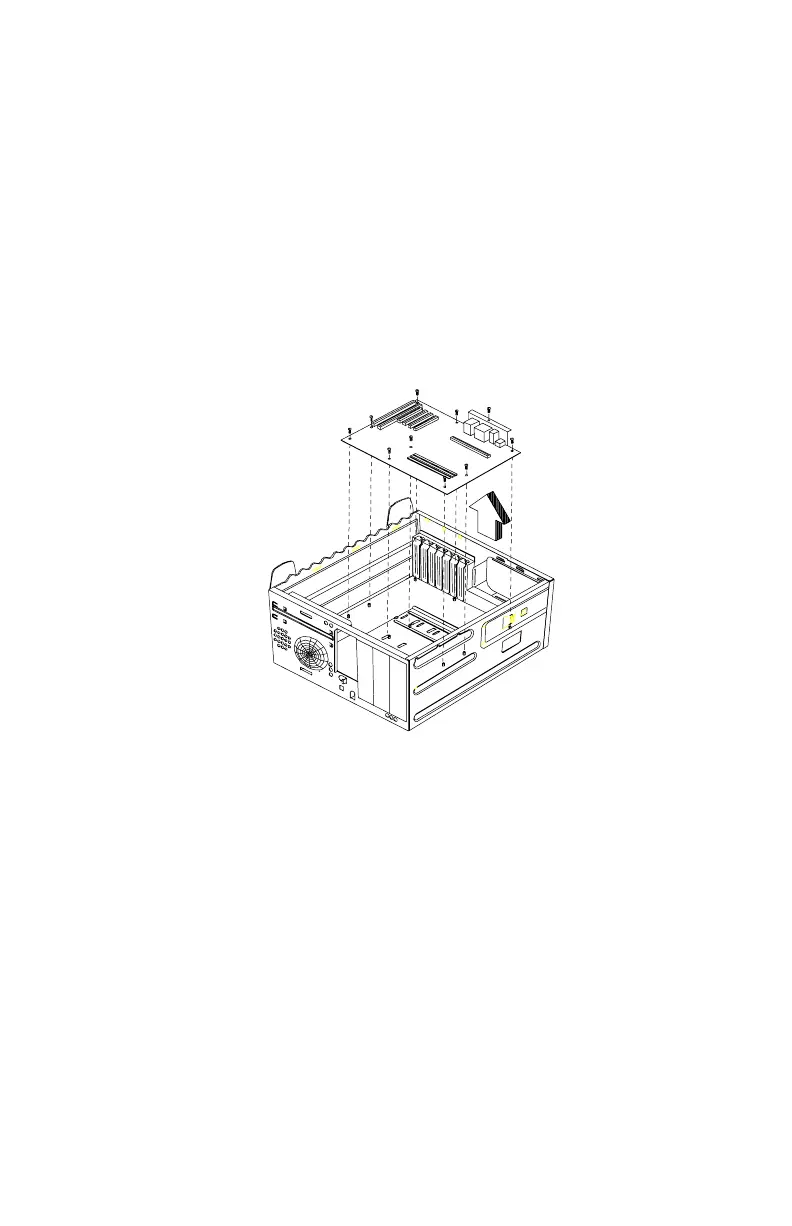

System Board
•
Remove all adapter cards.
•
Disconnect all cables connected to the system board. Note the location and
orientation of all cables.
•
Remove the screws securing the system board to the chassis.
•
Lift the system board to remove from chassis.
•
Remove memory (DIMM) if applicable.
•
Remove processor if necessary
.
NOTE:
System Board Installation
•
Before reinstallation, position the housing on its side. When installing a new
system board, push the board to the rear and align it with the front locating
pin. Visually verify that the board is aligned properly, then press the board
down.
•
Be sure to reinstall the processor, DIMMs, I/O port bracket onto the new
system board if applicable.
•
After installing the system board, secure with original screws.
•
Change all jumper settings to match those of the original board.
