IBM 2158240 - Aptiva E - 2158 - Machine Type 2163 System Board Jumpers and Connectors

Parts/Test Point Locations 111

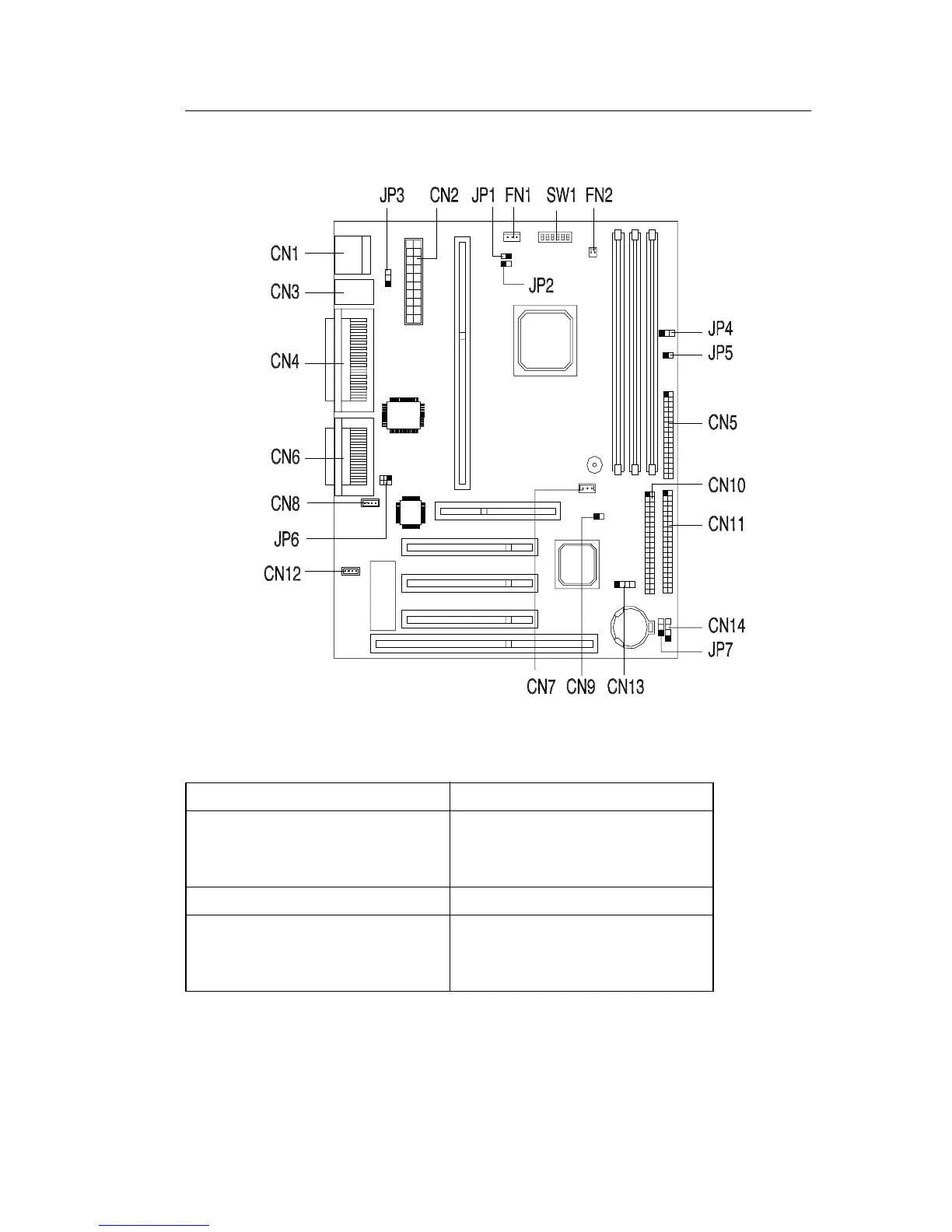

Machine Type 2163 System Board Jumpers and
Connectors
NOTE:
The blackened pin of a jumper represents pin 1.
2163 System Board Jumper Settings
Jumper/Settings Function
JP3
1-2
2-3
Reserved
JP4 Reserved
JP6
1-3 & 2-4
3-5 & 4-6*
Line-out signal type
Audio line-out
Amplified audio line-out
