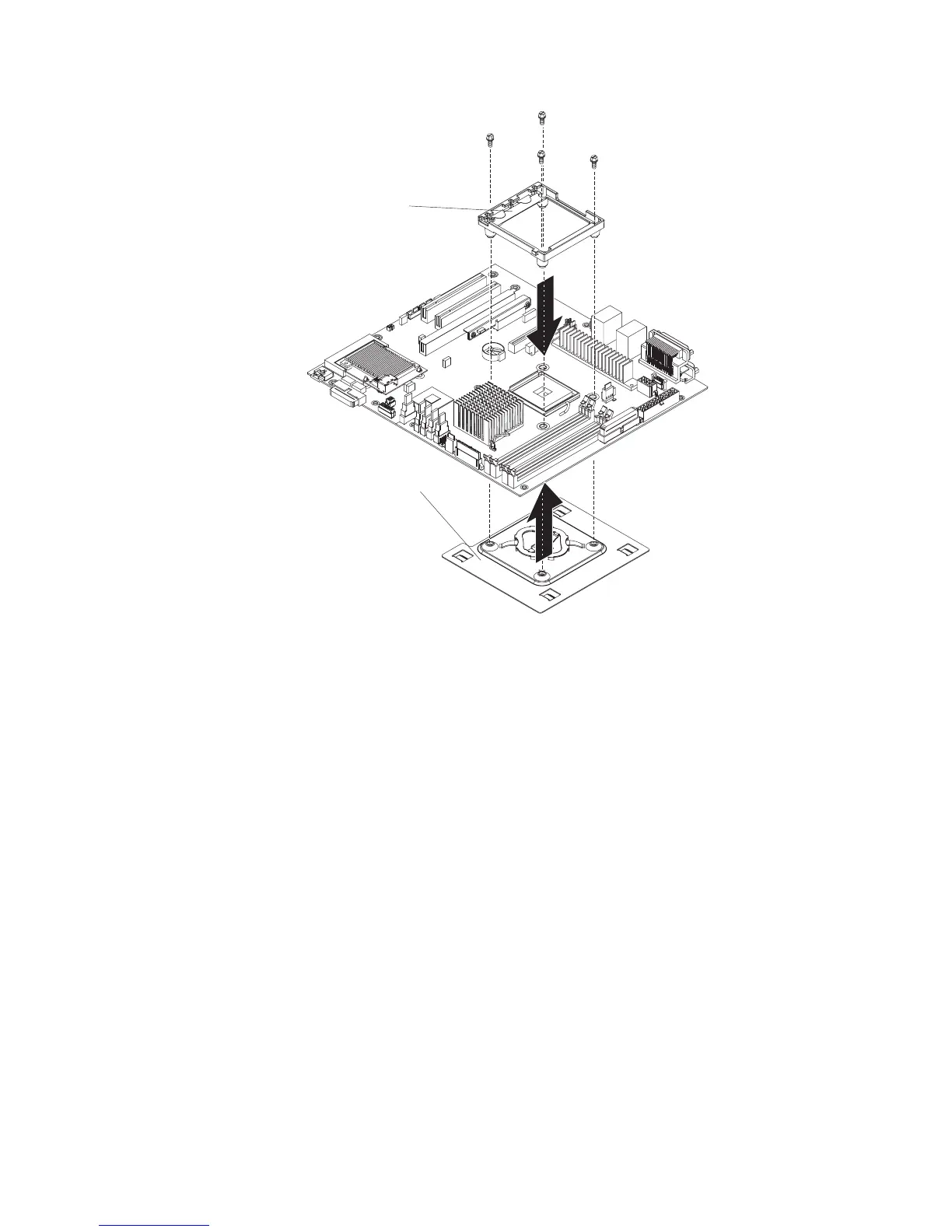

Fan-sink mounting
bracket
Fan-sink retention
module
3. Insert the system board into the chassis and slide it toward the rear of the
server until the tabs on the fan sink mounting bracket is fully engaged in the
holes for fan sink mounting bracket slots on the bottom the chassis.
Note: The tabs are fully engaged when the screw holes in the system board
are aligned with the corresponding holes in the chassis.
Chapter 4. Removing and replacing server components 117
