1. Check the front-panel assembly on the front of the server. If the system-error
LED is lit, it indicates that an error has occurred.
2. Check the front and rear of the server to determine whether any component
LEDs are lit.
3. Remove the server cover and look inside the server for lit LEDs. Certain
components inside the server have LEDs that will be lit to indicate the location
of a problem. For example, a DIMM error will light the LED next to the failing
DIMM on the system board.
Look at the system service label on the top of the server, which gives an
overview of internal components. This information can often provide enough
information to correct the error.
Power-supply LEDs
The following minimum configuration is required for the server to start:
v One microprocessor
v One 512 MB DIMM
v One power supply
v Power backplane
v Power cord
v System board

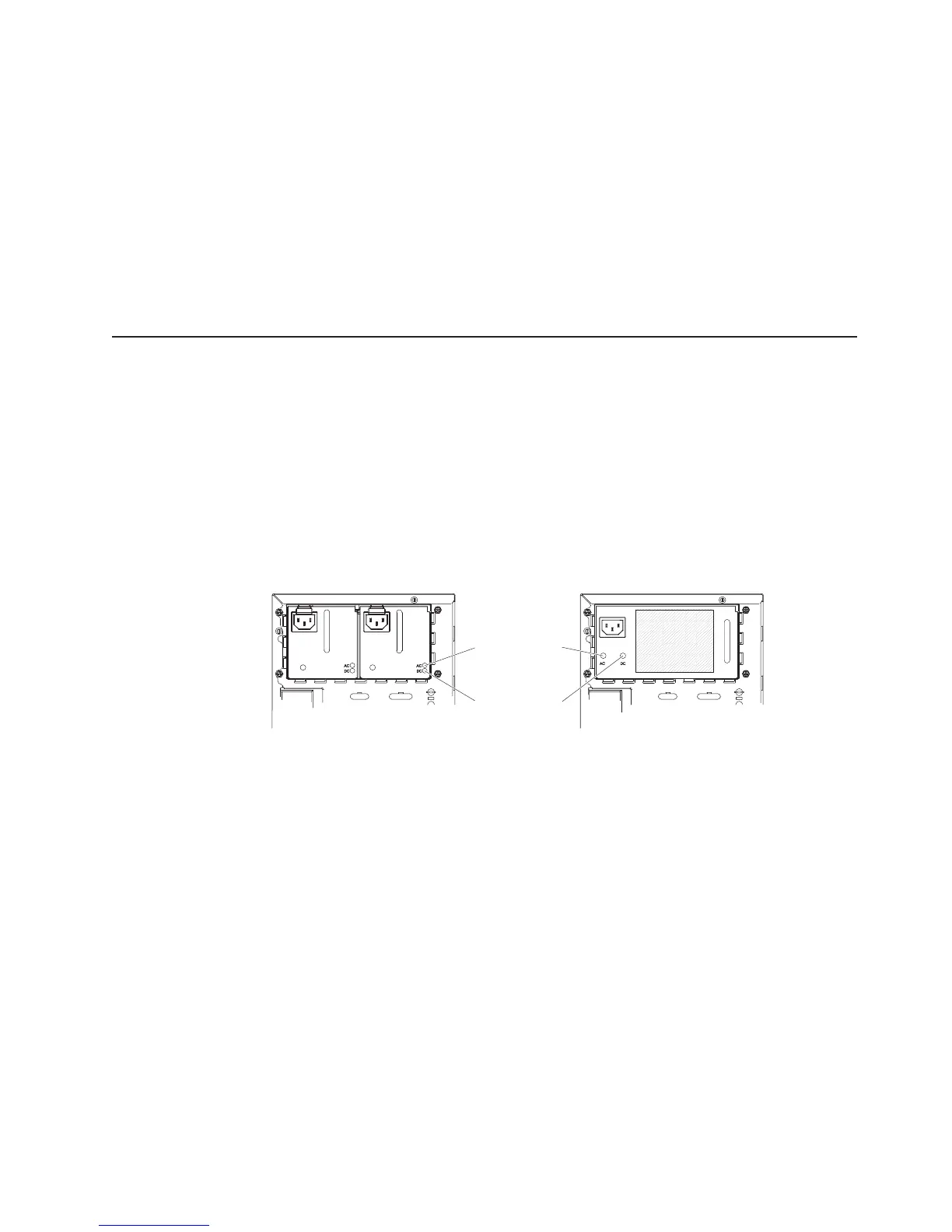

The following is an illustration of the connectors and power-supply LEDs on the rear
of the hot-swap and non-hot-swap server models.
AC power LED
DC power LED
Chapter 5. Diagnostics 153
