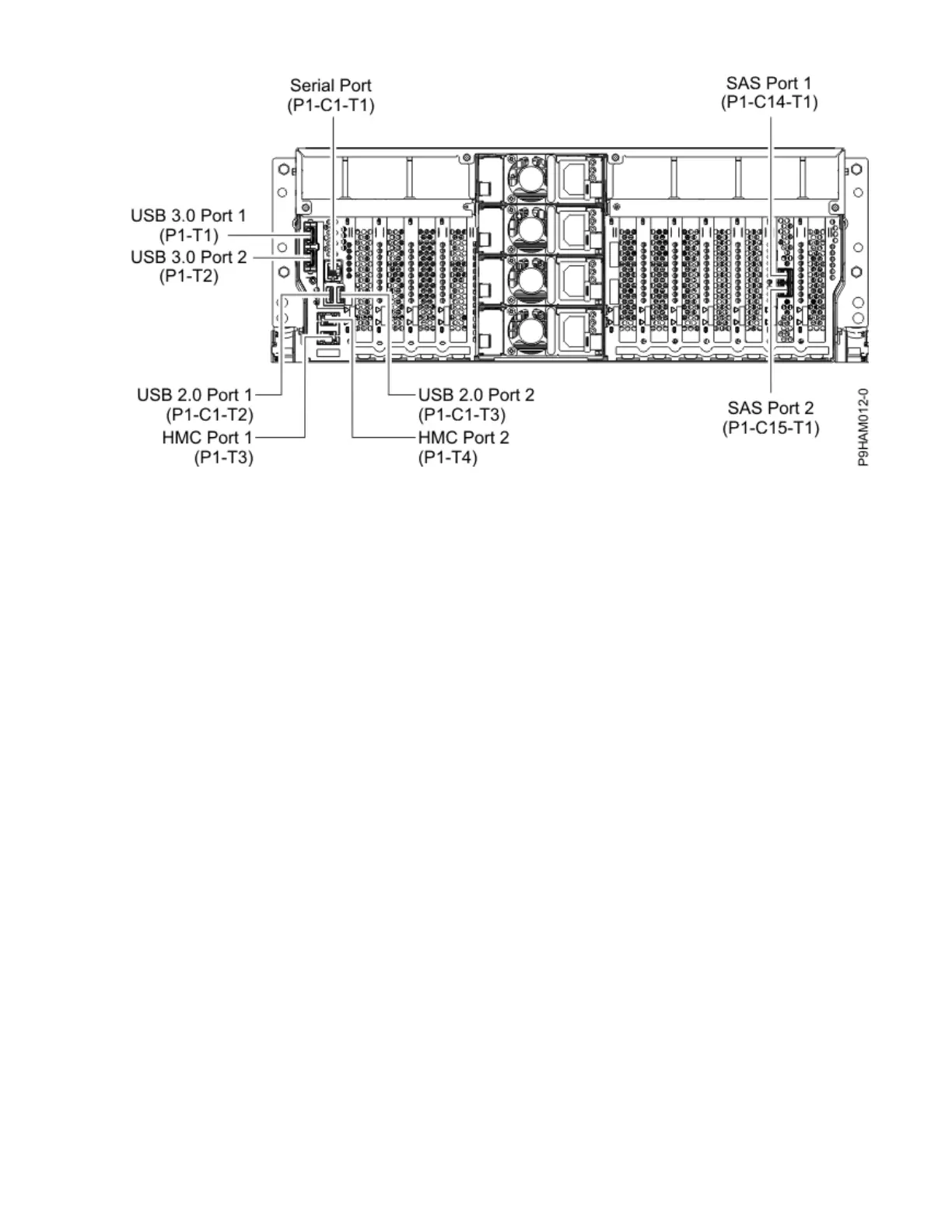

Figure 46. Connector locations for the 8247-42L and 8286-42A (expanded function) systems
Connector locations for the 8408-44E and 8408-E8E systems
Learn about connector locations for the 8408-44E and 8408-E8E systems.
The 8408-44E and 8408-E8E systems provide cable connector locations via a SAS port (P1-C5-T3) for
disk drive enclosures and cable ports (P1-C5-T1 and P1-C5-T2) for the EMX0 PCIe3 expansion drawer
