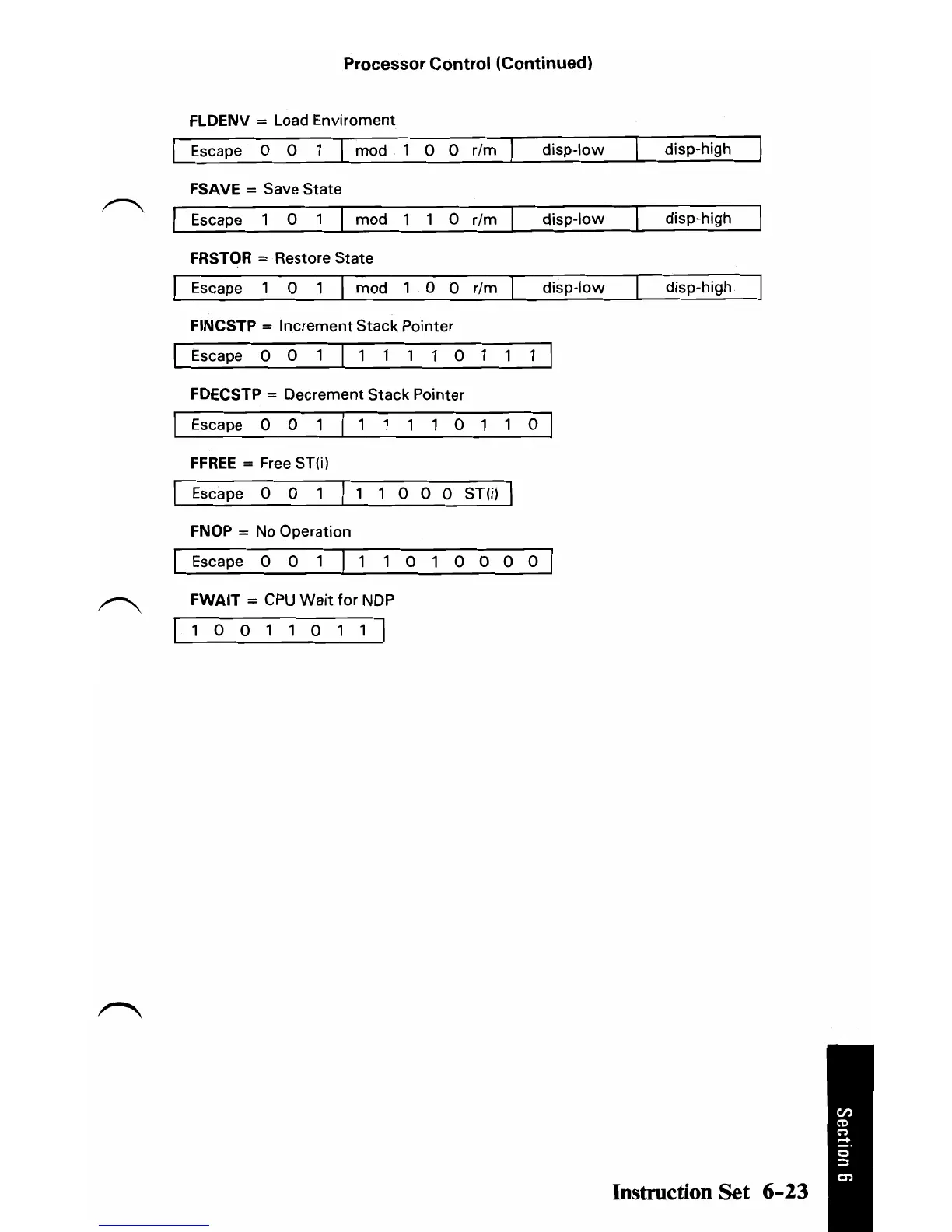

Processor Control (Continued)

FLDENV = Load Enviroment

Escape 0 0 1

I mod 1 0 0 rIm

disp-Iow

disp-high

FSAVE = Save State

Escape 1 0 1

mod

1 1 0 rIm

disp-Iow

disp-high

FRSTOR = Restore State

Escape 1 0 1

I mod 1 0 0 rIm

disp-Iow

disp-high

FINCSTP = Increment Stack Pointer

Escape 0 0 1

I 1 1 1 1 0 1 1 1

FDECSTP = Decrement Stack Pointer

Escape 0 0 1

1 1 1

101

1 0

FFREE

= Free ST(i)

Escape 0 0 1 1 0 0 0 ST(i)

FNOP = No Operation

Escape 0 0 1

I 1 0 1 0 0 0 0

FWAIT =

CPU

Wait

for

NDP

10011011
