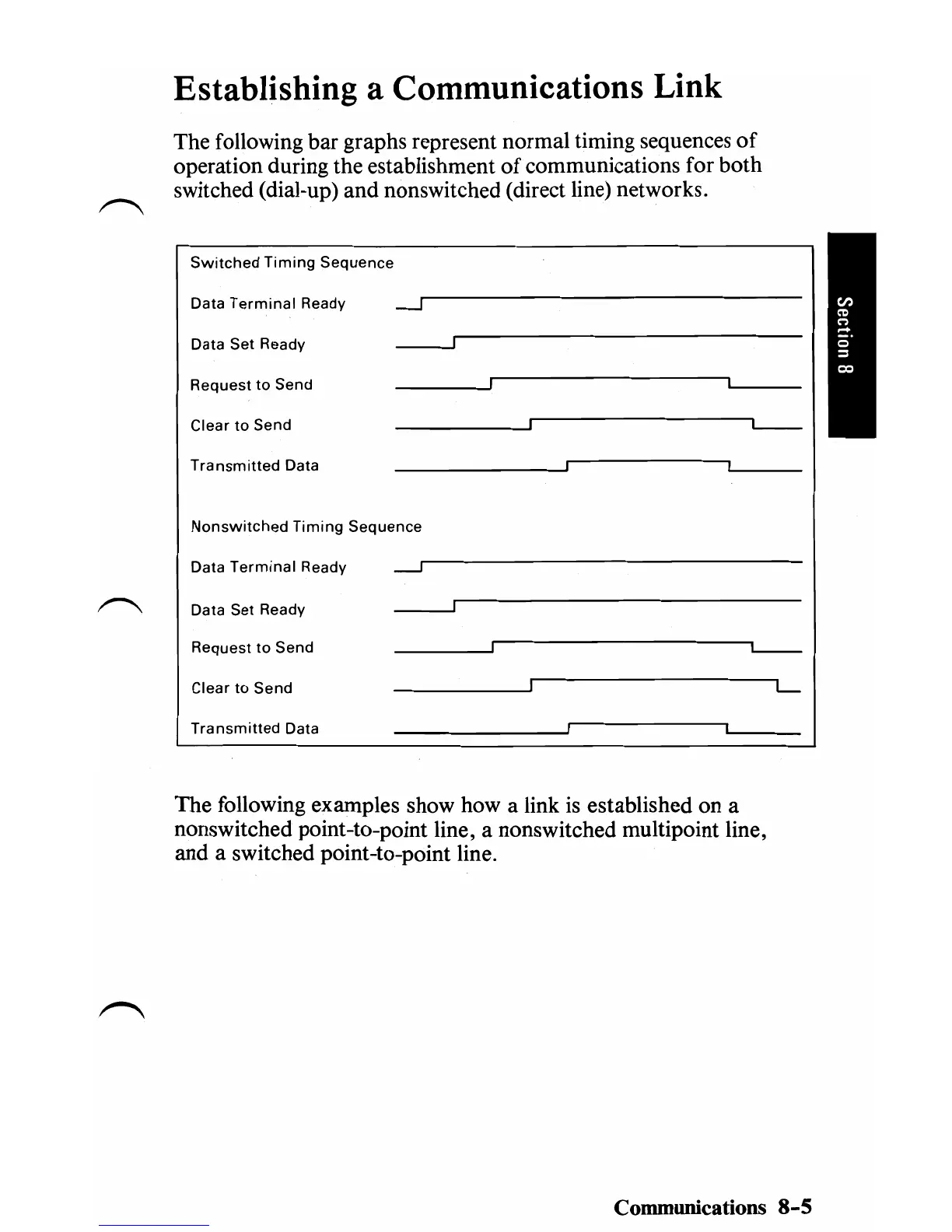

Establishing a Communications Link
The following bar graphs represent normal timing sequences of
operation during the establishment of communications for both
switched (dial-up) and nonswitched (direct line) networks.
Switched Timing Sequence
Data Terminal Ready
~r--------------------------------
Data Set Ready
Request to Send
Clear
to Send
---------'------------~~
Transmitted Data
Nonswitched Timing Sequence
Data Terminal Ready
~r--------------------------------
~r-----------------------------
Data Set Ready
Request
to Send
------~----------------~~
______ ~-------------.L
Clear to Send
Transmitted Data
The following examples show how a link is established on a
nonswitched point-to-point line, a nonswitched multipoint line,
and a switched point-to-point line.
Communications 8-5
