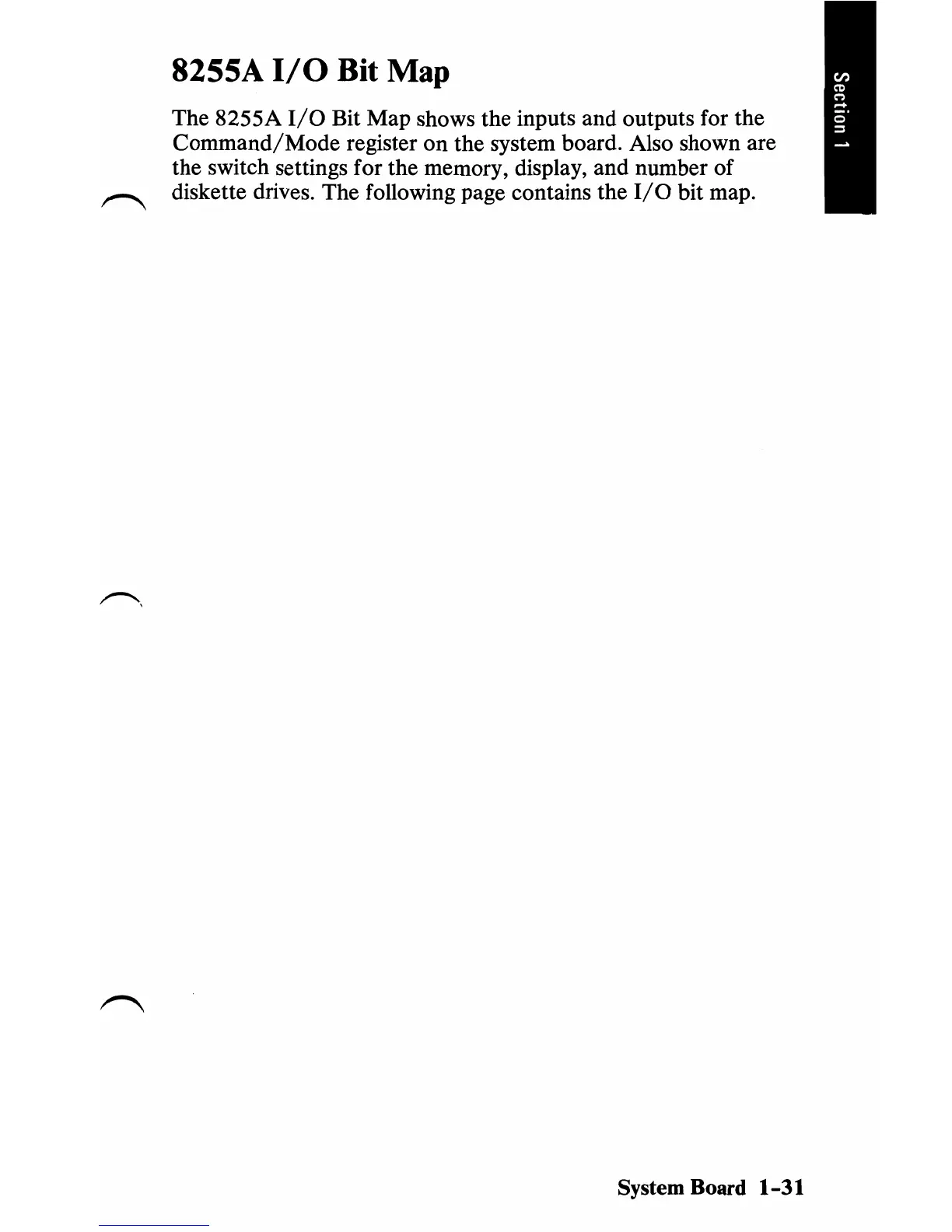

8255A I/O Bit Map
The 8255A I/O Bit Map shows the inputs and outputs for the
Command/Mode register
on the system board. Also shown are
the switch settings for the memory, display, and number of
diskette drives. The following page contains the
I/O bit map.
System
Board 1-31
