Number

Usage

NMI

Parity

8087

Timer

1 Keyboard

2 Reserved

3 Asynchronous Communications (Alternate)

SDLC Communications

BSC

Communications

Cluster (Primary)

4 Asynchronous Communications (Primary)

SDLC Communications

BSC

Communications

5 Fixed Disk

6 Diskette

7 Printer

Cluster (Alternate)

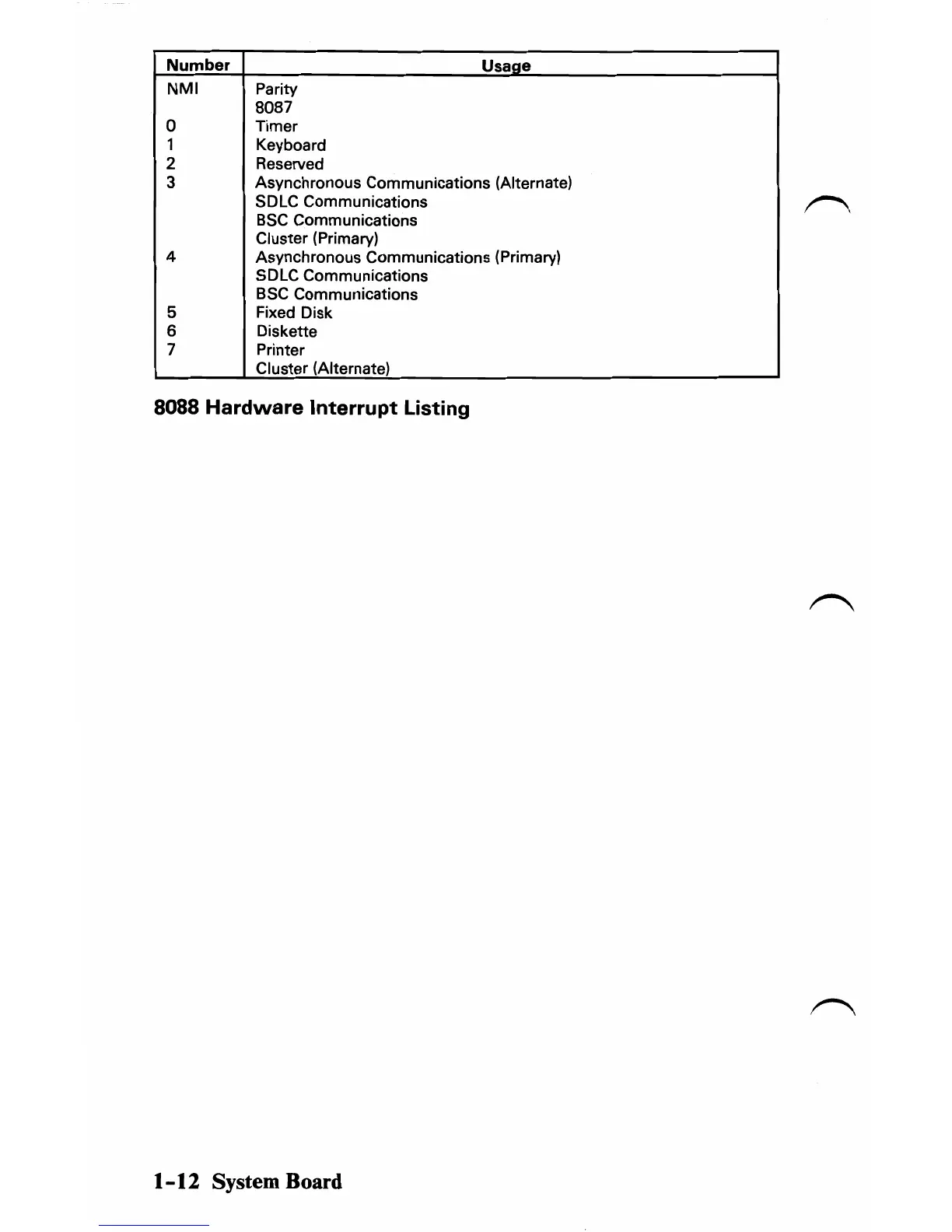

8088 Hardware Interrupt

Listing

1-12 System Board
