IBM 5150 Technical Reference

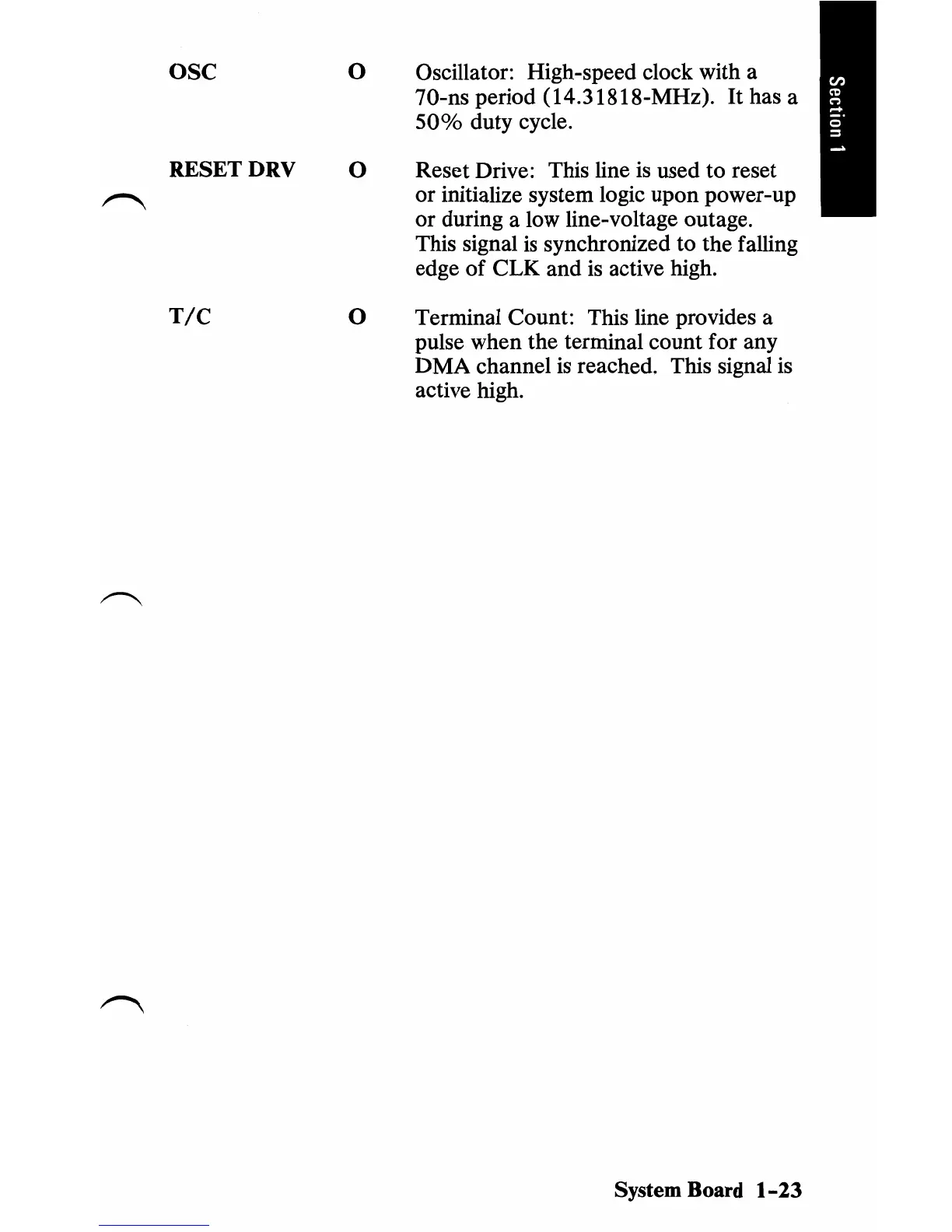

OSC o Oscillator: High-speed clock with a
RESETDRV
TIC
70-ns period (14.31818-MHz).
It has a
50% duty cycle.
o
Reset Drive: This line
is used to reset
or initialize system logic upon power-up
or during a low line-voltage outage.
This signal
is synchronized to the falling
edge of CLK and
is active high.
o
Terminal Count: This line provides a
pulse when the terminal count for any
DMA channel
is reached. This signal is
active high.
System
Board 1-23
