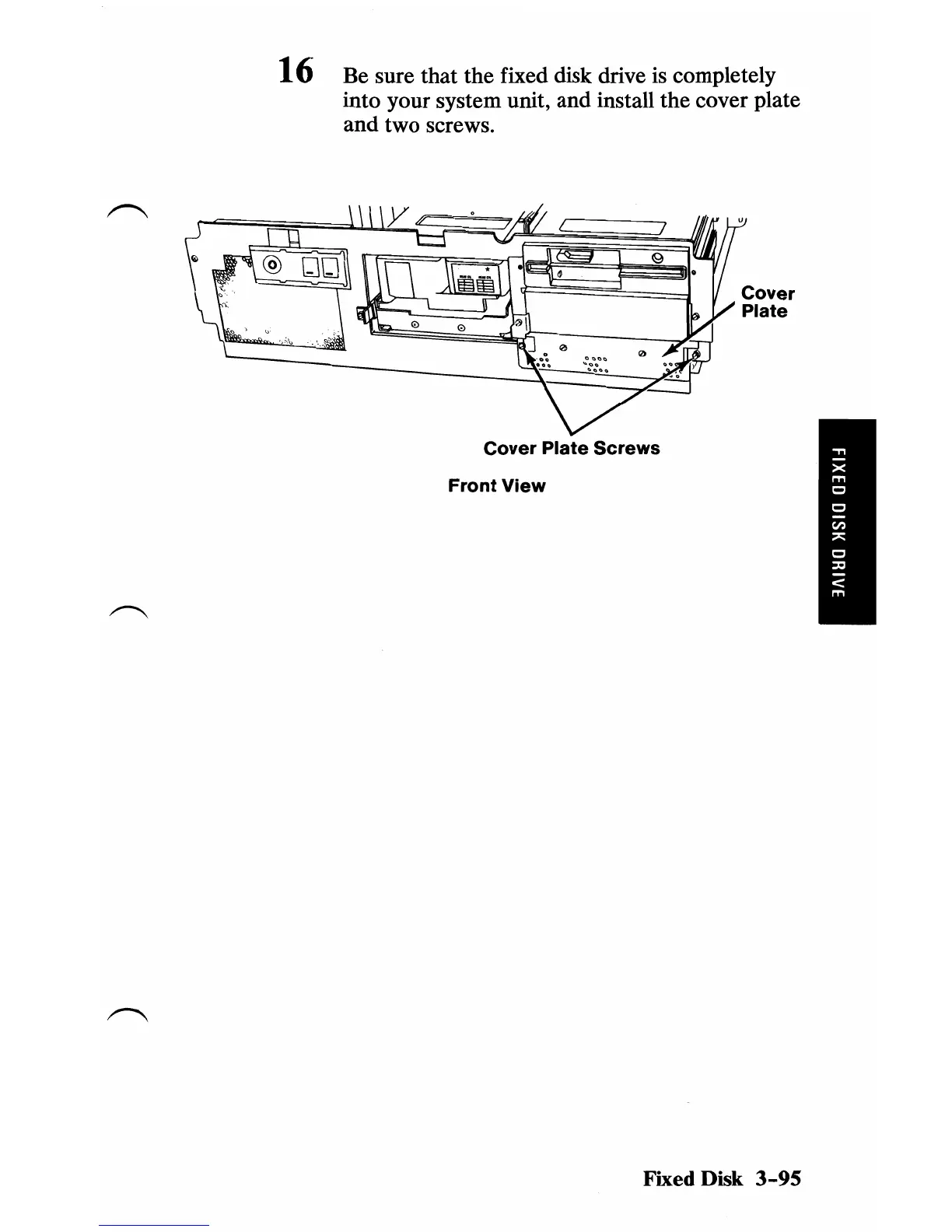

Be sure that the fixed disk drive is completely

into your system unit, and install the cover plate

and two screws.

Cover Plate Screws

Front

View

Fixed Disk

3-95
