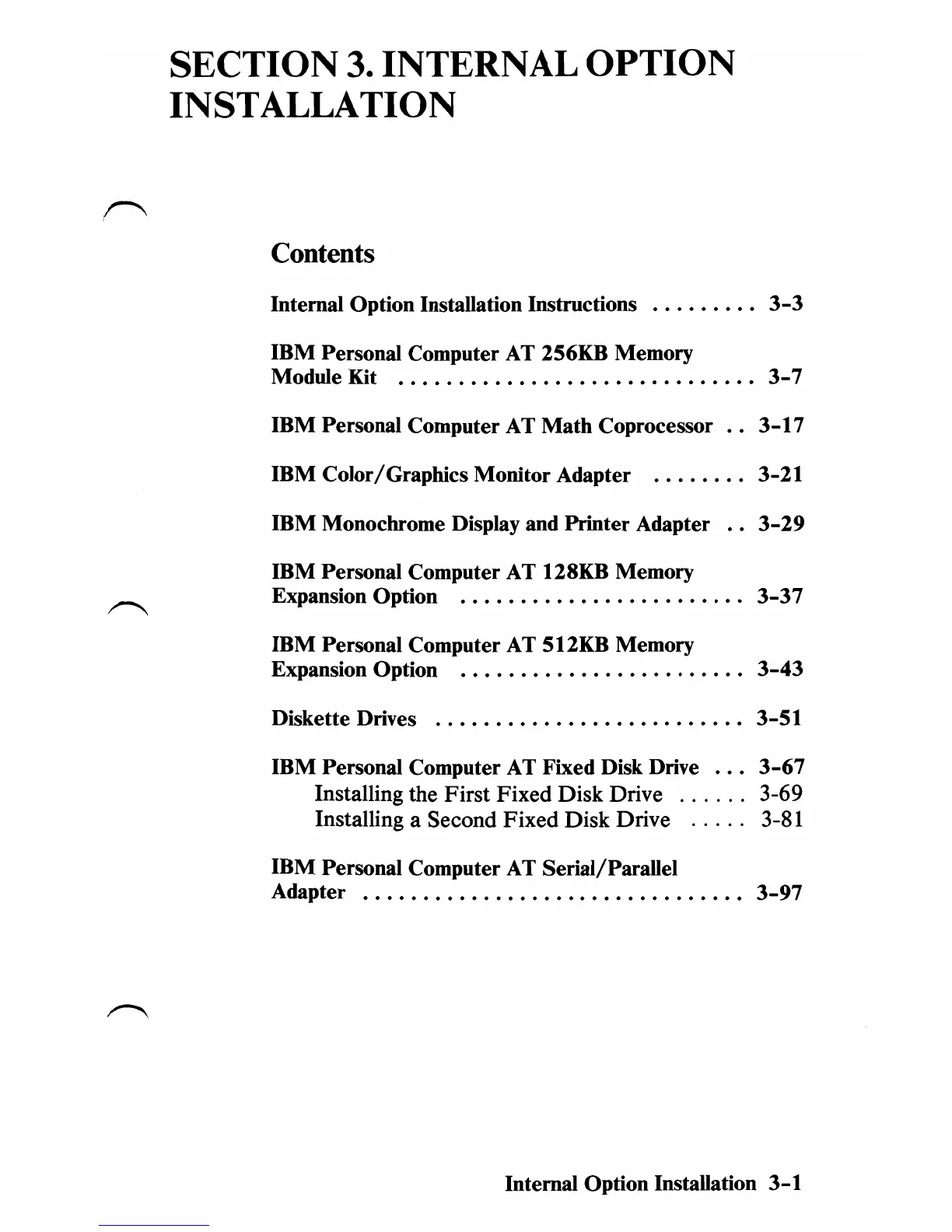

SECTION 3. INTERNAL OPTION
INSTALLATION
Contents
Internal Option Installation Instructions
3-3
IBM Personal Computer AT 256KB Memory
IBM Personal Computer AT 128KB Memory
IBM Personal Computer AT 512KB Memory
IBM Personal Computer AT Serial/Parallel
Module Kit
.............................. 3-7
IBM Personal Computer AT Math Coprocessor .. 3-17
IBM Color/Graphics Monitor Adapter ........ 3-21
IBM Monochrome Display and Printer Adapter 3-29
Expansion Option
........................ 3-37
Expansion Option
........................ 3-43
Diskette Drives .......................... 3-51
IBM Personal Computer AT Fixed Disk Drive ... 3-67
Installing the First Fixed Disk Drive ...... 3-69
Installing a Second Fixed Disk Drive 3-81
Adapter
................................ 3-97
Internal Option Installation 3-1
