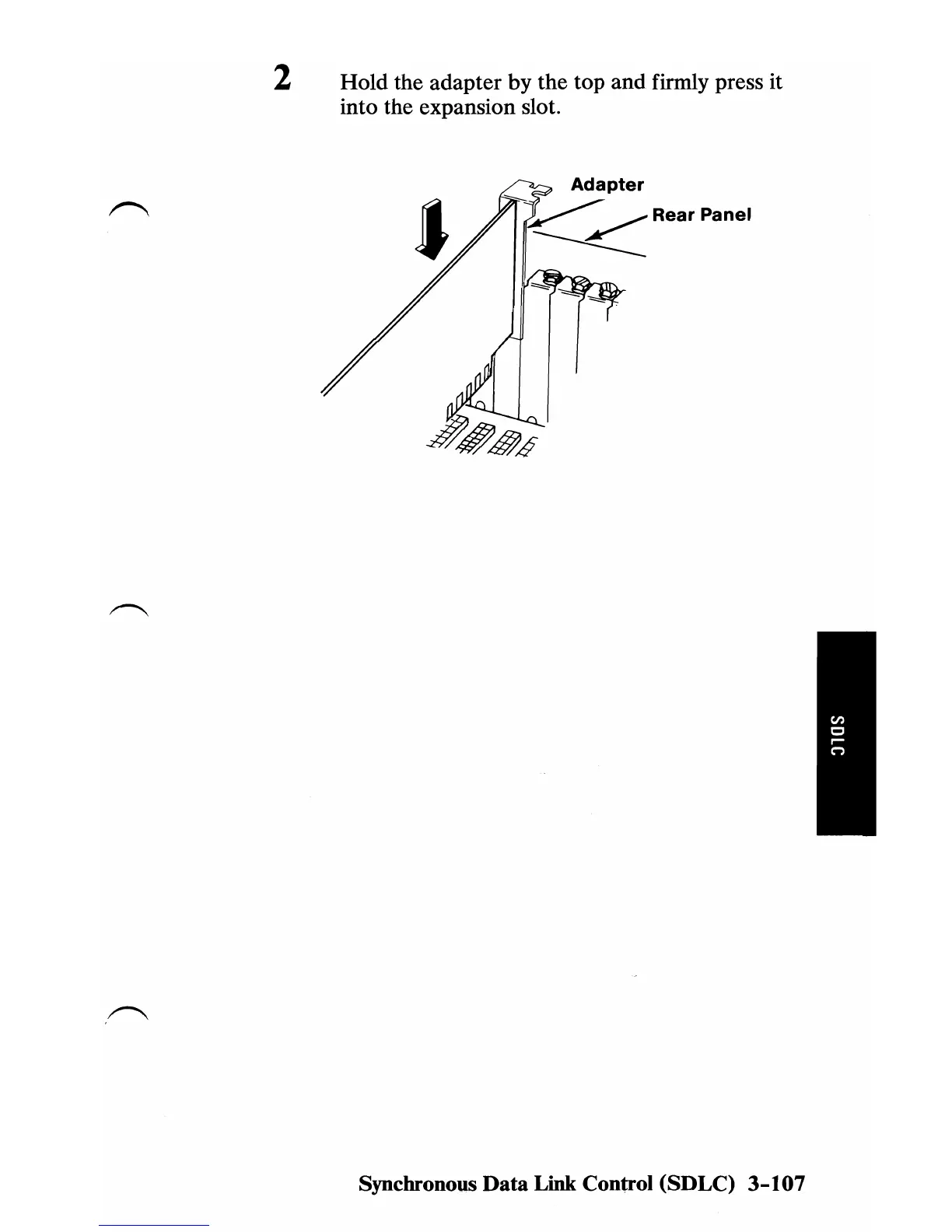

2 Hold the adapter by the top and firmly press it

into the expansion slot.

Synchronous Data Link Control (SDLC)

3-107
