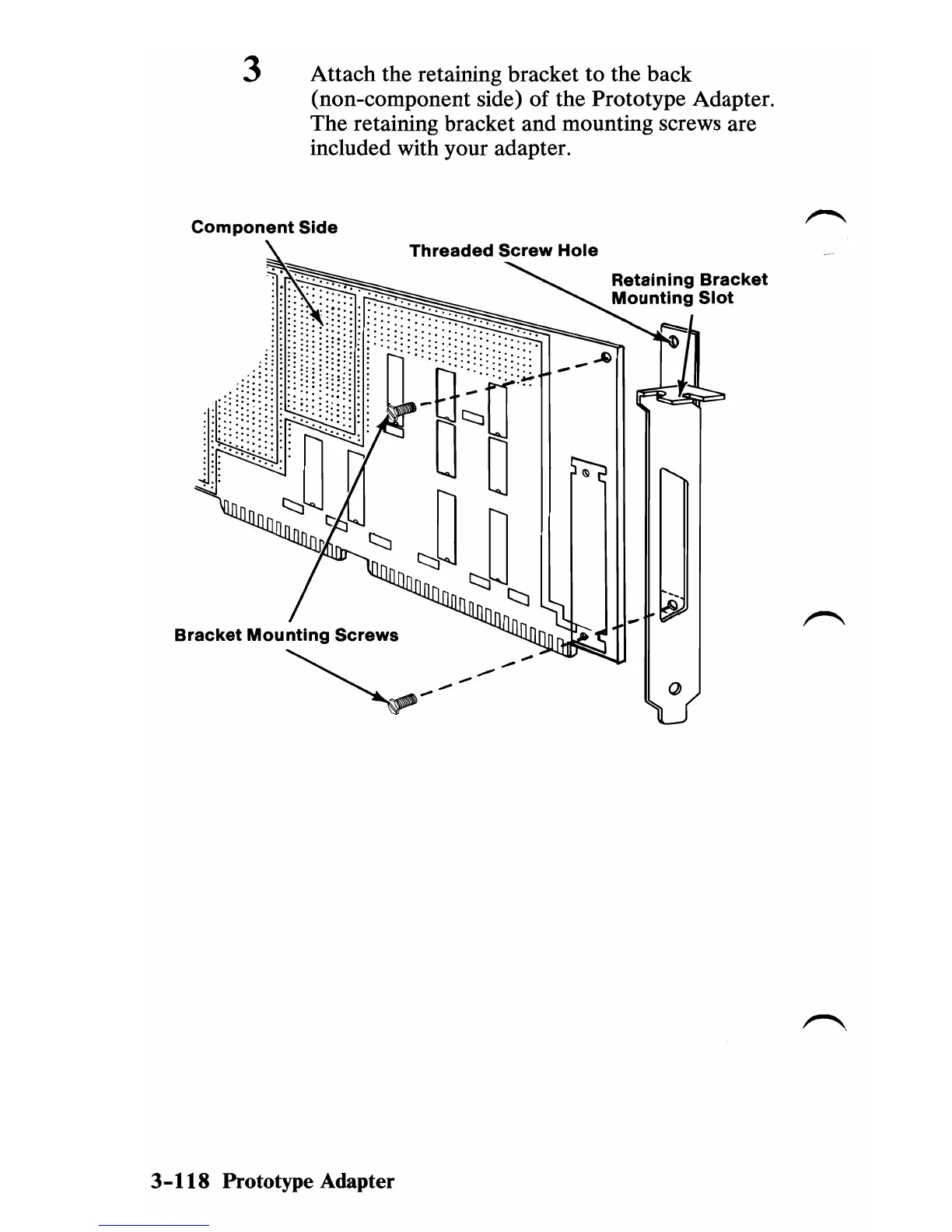

3 Attach the retaining bracket to the back
(non-component side)
of
the Prototype Adapter.
The retaining bracket and mounting screws are
included with your adapter.
Component
Side
Bracket
Mounting Screws
~_//-
3-118
Prototype Adapter
