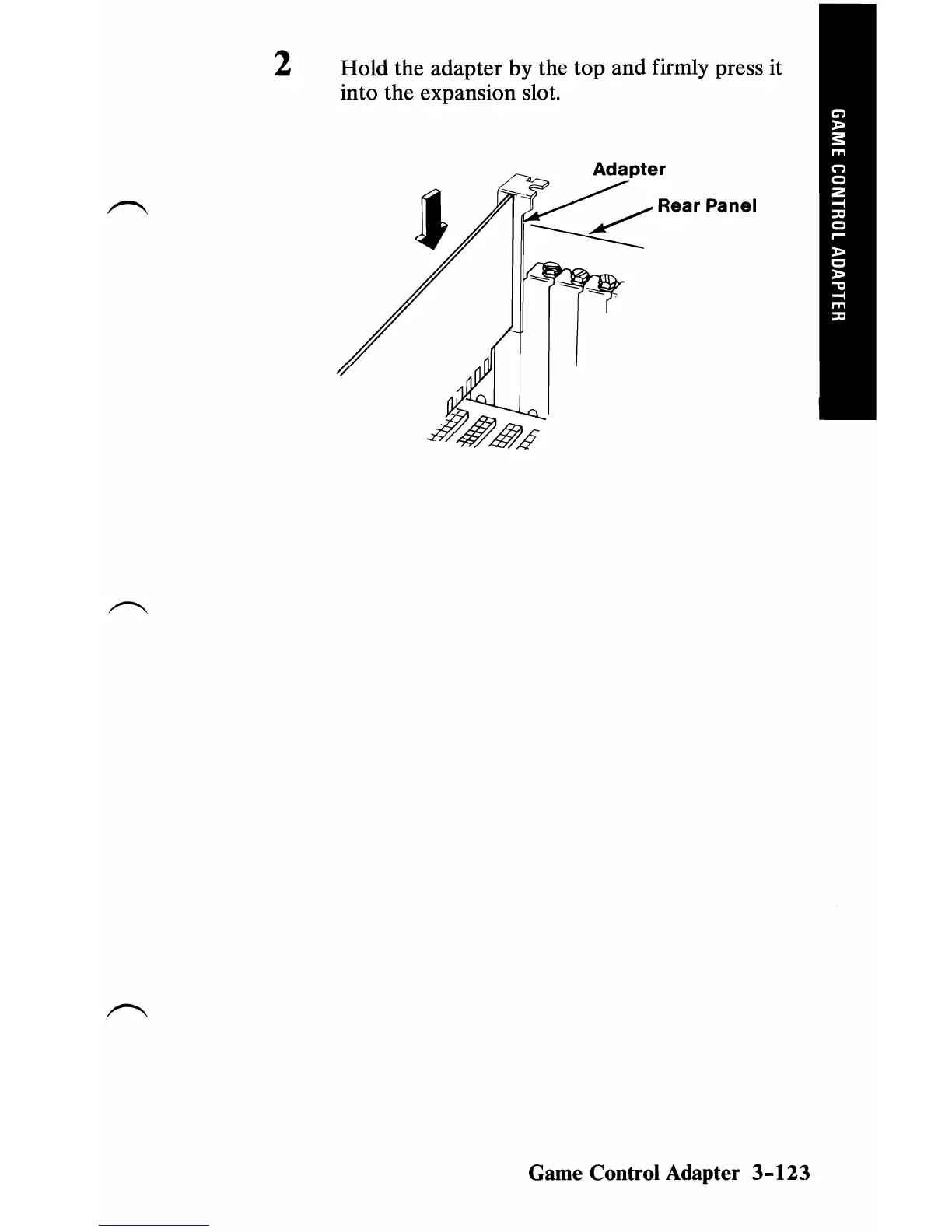

2 Hold the adapter

the

top

and

firmly press it

into the expansion slot.

Game Control Adapter

3-123
