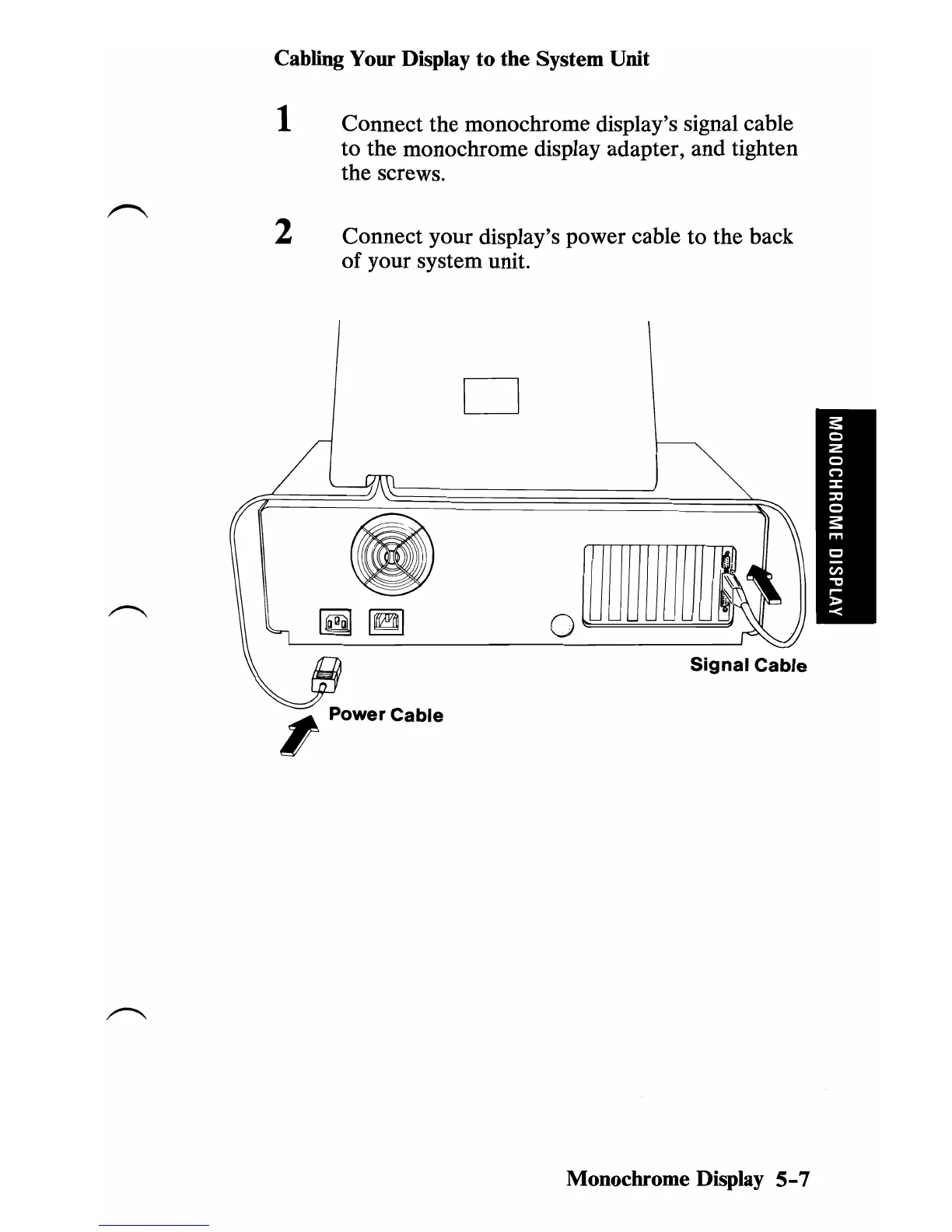

Cabling Your Display to the System Unit
1 Connect the monochrome display's signal cable
to
the monochrome display adapter, and tighten
the screws.
2 Connect your display's power cable to the back
of your system unit.
D
Signal Cable
,.
Power Cable
Monochrome Display
5-7
